106 | ORBEA

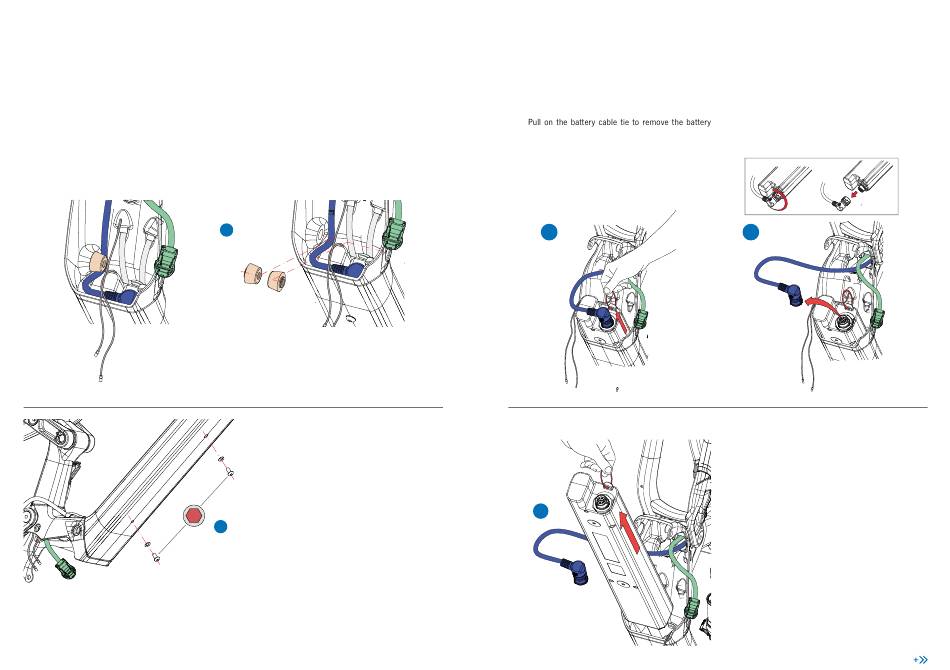

8. Remove the upper motor attachment bushings.
Remember, when re-installing the bushings when ins-
talling the motor, the battery connection cable must be
routed over the left bushing to allow the motor to be
installed.
6
9. Remove the bolts and washers securing the internal
battery to the downtube.
TECHNICAL MANUAL
8
9
BLUE PAPER RISE CARBON · 20 2 3
10.
from the downtube, until the battery cable connector
is easily accessible.
10
12. Remove the battery from the downtube.
12
ORBEA | 107
11. Disconnect the battery cable by turning the locking
ring to the left and pulling on the connector.
11
INSTALLING THE INTERNAL BATTERY
To reinstall the internal battery, follow the opposite pro-
cess to removing it.
Check the cable routing and tightening torques of all com-
ponents in the sections of this manual for each element.
For the correct installation of the Shimano lockring on the
chainring and cranks, please refer to the manufacturer's
documentation.
Shimano FC-EM900/FC-EM600 Cranks:
https://si.shimano.com/es/dm/DUE001/install_chain-
ring_crank_arms
