VAR I AB L E C HA R G I N G
C U R R E NT
The RS Gen2 Smart Charger recognises which battery it
is connected to (Gen2 internal battery or Gen2 Range Ex-
tender) and adapts the charging current accordingly.
The charging current of the internal battery is 4A (100-
240V). The charging speed of the internal battery up to
The charging current of the Range Extender is 2A (100-
240V). For approximate charging times for RS Gen2 bat-
U S I N G T HE R S G E N 2 S MA RT
C H A R G E R
in the "Using the Rise" chapter of this ma-
nual for the complete process of using the
Smart Charger Gen2 to charge the Gen2 in-
ternal battery and the Gen2 Range Extender
in the Rise.

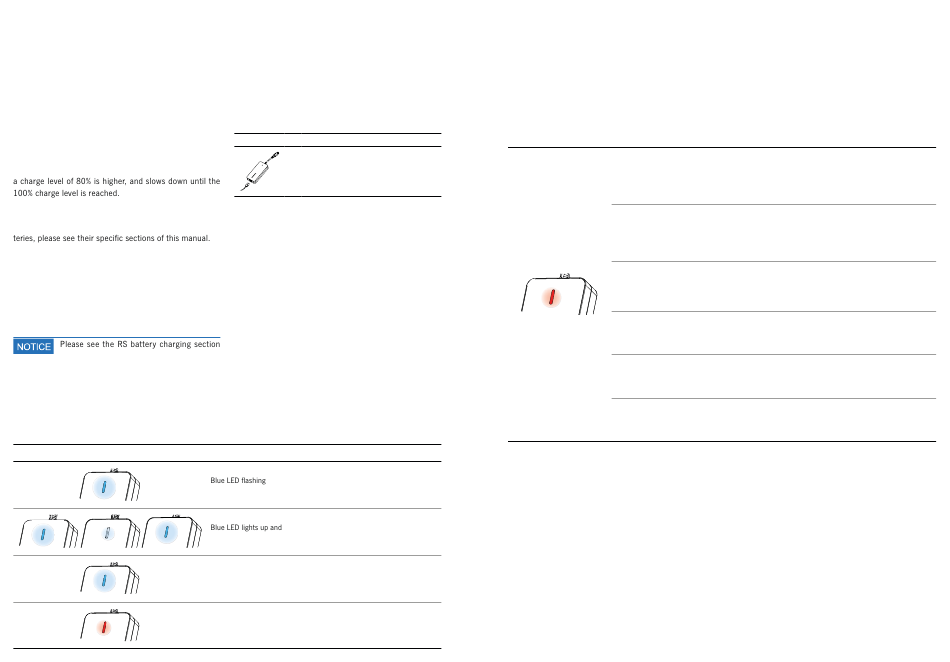

MEANING OF THE SMART CHARGER LED
LED
TECHNICAL MANUAL
5 4 SMART CHARGER ORBEA RS 4A-2A 42V GEN2
Opciones cable corriente EU, US, UK, AUS
ART No.: X977
Smart Charger Orbea
RS 4A-2A 42V Gen2
Opciones cable corriente
EU, US, UK, AUS
BEHAVIOUR STATE
Charger receiving power but not
connected to the battery
Charger charging the battery
fades cyclically
LED steady blue Charge completed
Steady red LED Error. See the error resolution table
BLUE PAPER RISE CARBON · 20 2 3
TROUBL E SHOOTING TH E RS GE N2
SM ART CHARG E R
LED
CANT.
1
RS GE N2 SM ARTC H AR GE R

OPE RATIO N WAR NINGS

See the section entitled "Relevant information about RS
batteries" for more useful information on using and caring
for the RS Smart Charger.
POSSIBLE ERROR SOLUTION
(Follow the solutions in
descending order)
Excesive current protection · Disconnect the battery.
· Inspect the cable and charging port for dirt, moisture or foreign
objects.
· If the problem does not disappear, contact an Orbea dealer.
Short-circuit protection · Disconnect the battery.
· Inspect the cable and charging port for dirt, moisture or foreign
objects.
· If the problem does not disappear, contact an Orbea dealer.
Over-temperature protection · Wait until the charger temperature is within the charging range.
· If the problem does not disappear, contact an Orbea dealer.
Inaction protection The amount of time connected to the power supply or battery
without effectively charging exceeds the set limit by far.
Abnormal communication Contact an Orbea dealer.
protection
Excessive voltage protection · The battery voltage is too high.
· Contact an Orbea dealer.
