78 | ORBEA
SIC GROMMETS FOR HS02
HEADSET COLLECTO R
(CABLING OPTIONS)
There are different SIC rubber grommets depending on
the mounting on each Rise Carbon model to cover all ca-
bling options.
The grommets are the same for the three types of HS02
headset (regular stack, low stack and universal collector
for stems without Spinblock function).
See the headset section of this manual for the part codes
and assembly for all components of the HS02 headset.
L3
3mm (free on Rise)
3mm (SD300 Di2 cable)
4mm
to Di2 junction inside stem
4mm
· see dedicated section
4mm (dropper seatpost)
(not used on Rise Carbon)
Regular stack collector
R3 R2e
3mm (SD300 Di2 cable)
to Di2 junction inside stem)
· see dedicated section
5mm (rear brake) 5mm
3mm
4mm (rear derailleur)
(not used on Rise Carbon)
TECHNICAL MANUAL
L2 L1
4mm (blind)
Can be opened
4mm
(dropper seatpost)
Low stack collector Universal collector
R2 R1
5mm (rear brake)
4mm (rear derailleur)
(not used on Rise Carbon)
BLUE PAPER RISE CARBON · 20 2 3
22 O C STE M S

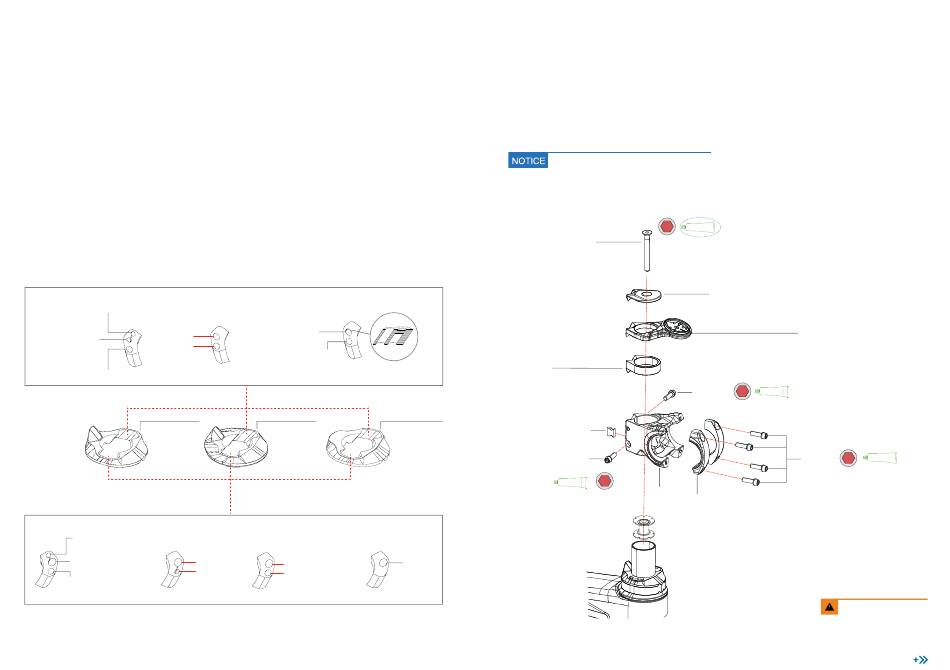

EXPLODED VIEW AND ASSEMBLY OF OC ST-MC10 AND ST-MC20 STEMS
For the use of non-OC stems on Rise Carbon,
see the Headset section of this manual.
39.6
40.6
41.2
See headset section
39.4/40.4
39.3/40.3
42
GREASE
5mm
(rear brake)
4
GREASE
8 N.m
39.5/40.5
41.1
See computer mount section
39.3/40.3
4
GREASE
42
6 N.m
4
6 N.m
39.1
40.1 39.2
40.2
ORBEA | 79
E N
39.3/40.3 4
GREASE
42
6 N.m
Always follow the recommended
torque settings.
