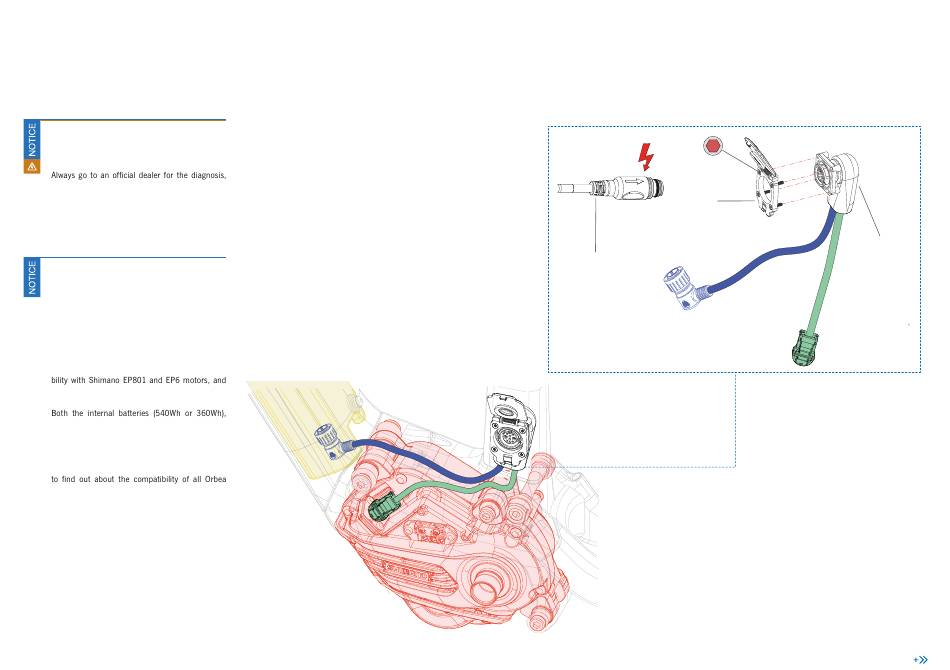

CABLING OF ORBEA RS
C OMP ON E NTS IN TH E F RA ME
Installation of power assist system components
requires advanced knowledge and may be beyond
the skill of most users.
repair and installation of the components of the
Rise electrical system. Damage to components
resulting from incorrect installation could void the
warranty on those components.
COMPATIBILITY NOTICE. GEN2 ELECTRICAL
SYSTEM COMPONENTS
The Orbea components of the electrical system
(internal battery -540Wh or 360Wh-, Range Ex-
tender, cable harness and Smart Charger) are not
compatible with Rise, Kemen or Urrun models
from ranges prior to 2023.
These Orbea Ebike Systems components from the
2023 range are designed to guarantee compati-
Shimano Gen2 components.
the Range Extender and the Smart Charger are
marked with the Gen2 mark to identify their com-
patibility with these systems.
See the Orbea Ebike Systems Compatibility Table
components with our different bicycle models.
TECHNICAL MANUAL BLUE PAPER RISE CARBON · 20 2 3
1.5
0.5 N.m
16
15
SW-M8150-IR
ORBEA | 95
E N
17
SEE THE LIST OF COMPONENTS AT THE
END OF THIS SECTION
