24 | ORBEA

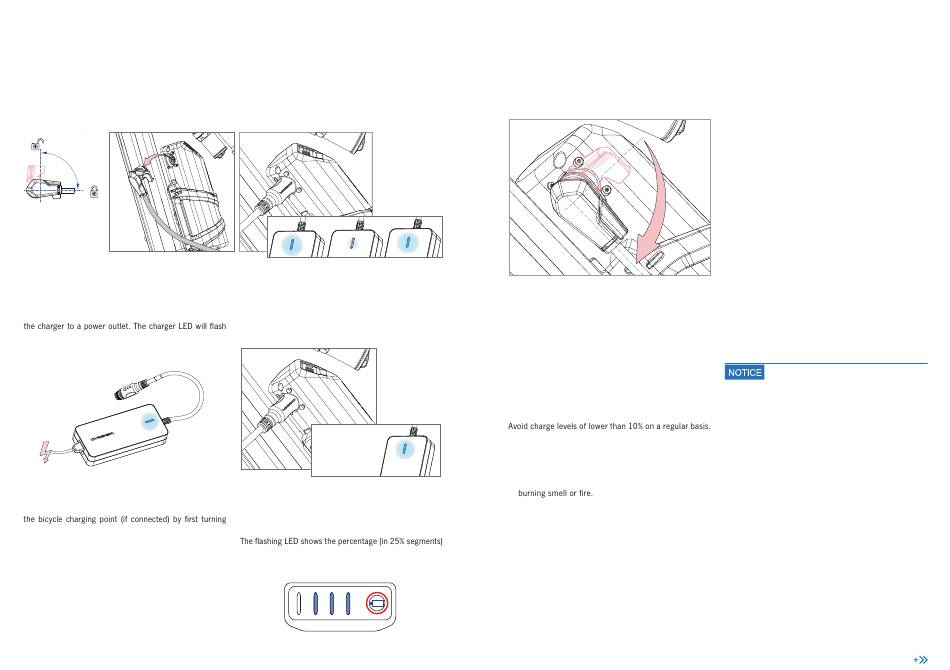

To charge the Range Extender internal battery, connect
blue when the charger is not connected to the bicycle.
Disconnect the cable connecting the Range Extender to
the Range Extender's cable locking tab and then pulling
on the cable.
Connect the charger to the Range Extender by correct-
ly aligning the charging port's pins with the pins on the
charger's connector.
The charger's LED will light up in steady blue for 2 seconds
and will then start to turn on and gradually fade off in a
cyclical manner until the battery is fully charged.
TECHNICAL MANUAL
When the battery is fully charged, the LED on the charger
will light up again in steady blue.
100%
While the Range Extender is charging, the battery charge
indicator LEDs will show the current charge level.
that is being charged.
BLUE PAPER RISE CARBON · 20 2 3
When the battery is fully charged, disconnect the charger
from the charging port by carefully pulling on the charg-
er's connector.
If you are going to use the Range Extender on the bi-
cycle, open the locking tab and connect the Range Ex-
tender's cable to the bicycle's battery and charging port.
Once the cable is properly connected, close the locking
tabs for a secure connection.
· Avoid leaving the charger continuously connected to
the battery for long periods of time and monitor the
charging of the battery so that you can disconnect the
charger if you detect any anomaly such as smoke, a
The RS smart charger is designed to stop the charging
process when the battery is completely charged. This
prevents damage to the cells and means you can charge
the battery worry-free.
However, it is always advisable to supervise the charg-
ing process to prevent damage if the charger does not
operate properly.
ORBEA | 25
Lithium batteries are temperature-sensitive during the
charging process. Always observe the temperature rang-
es described in this manual for charging, discharging and
storage.
See the section "Relevant information about
RS batteries" for more useful information
about use, care and problem solving for the
internal battery and Range Extender.
