64 | ORBEA

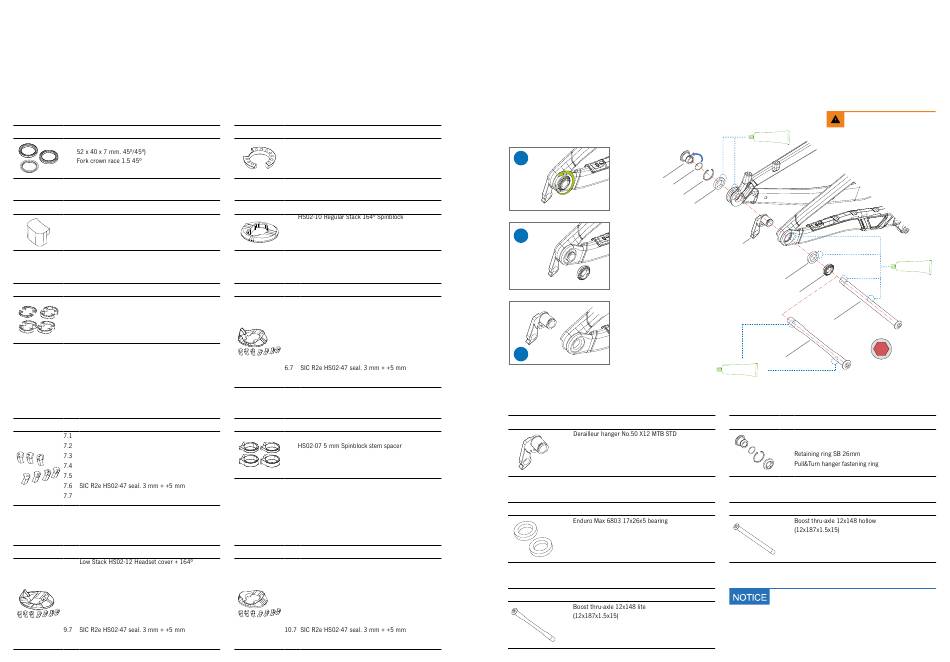

HEADSET COMPONENTS

01 ICR HS02 HEADSET BEARINGS
ART NO.: XC50
1.1 Headset bearing 1.5 (
1.2
03 H S02-0 2 S P I N BLOC K FR AM E STOP
ART No.: XC53
HS02-02 Spinblock frame stop
05 HS02 SPLIT HEADSET SPACER KIT
ART No.: XC55
5.1 HS02-04 Split headset spacer 10 mm
5.2 HS02-03 Split headset spacer 5 mm
07 SIC COLLECTOR SEAL KIT HS02
For all cabling options
ART No.: XC57
SIC L1 HS02-42 seal. 4 mm + 4 mm blind
SIC L2 HS02-43 seal. 4 mm + 4 mm
SIC L3 HS02-44 seal. 4 mm + 4 mm + 3 mm
SIC R1 HS02-45 seal. 5 mm
SIC R2 HS02-46 seal. 4 mm + +5 mm
SIC R3 HS02-48 seal. 4mm + 3mm +3 mm
09 HEADSET COVER + 164º SPINBLOCK COLLECTOR HS02-12
LOW STACK
Includes seal kit for all cabling options
ART No.: X973
9.1
Spinblock collector
9.2 SIC L1 HS02-42 seal. 4 mm + 4 mm blind
9.3 SIC L2 HS02-43 seal. 4 mm + 4 mm
9.4 SIC L3 HS02-44 seal. 4 mm + 4 mm + 3 mm
9.5 SIC R1 HS02-45 seal. 5 mm
9.6 SIC R2 HS02-46 seal. 4 mm + +5 mm
9.8 SIC R3 HS02-48 seal. 4mm + 3mm + 3mm
TECHNICAL MANUAL
0 2 ALUMINIUM PRELOAD RING 1-1/8 HS02-01
Q UAN T. ART No.: XC51
Aluminium preload ring 1-1/8 HS02-01
2
1
04 HS02-10 164º SPINBLOCK HEADSET COVER. REGULAR STACK
Q UA N T. ART No.: X972
1
headset cover
0 6 HS02-05 SIC COLLECTOR SPINBLOCK. REGULAR STACK
Includes seal kit for all cabling options
Q UAN T. ART No.: XC56
6.1 HS02-05 SIC Collector Spinblock. Regular
3
Stack
1
6.2 SIC L1 HS02-42 seal. 4 mm + 4 mm blind
6.3 SIC L2 HS02-43 seal. 4 mm + 4 mm
6.4 SIC L3 HS02-44 seal. 4 mm + 4 mm + 3 mm
6.5 SIC R1 HS02-45 seal. 5 mm
6.6 SIC R2 HS02-46 seal. 4 mm + +5 mm
6.8 SIC R3 HS02-48 seal. 4mm + 3mm + 3mm
0 8 SPINBLOCK ABOVE STEM
SPACER KIT
Q UAN T. ART No.: XC58
1 8.1 HS02-08 10 mm Spinblock stem spacer
1
8.2
1
1
1
1
1
10 HS02-06 UNIVERSAL NON-SPINBLOCK COLLECTOR
Standard stem Includes seal kit for all cabling options
QUA N T. ART No.: XC60
10.1 Oiz HS02-06 SIC Universal collector No
1
Spinblock
1 10.2 SIC L1 HS02-42 seal. 4 mm + 4 mm blind
1 10.3 SIC L2 HS02-43 seal. 4 mm + 4 mm
1 10.4 SIC L3 HS02-44 seal. 4 mm + 4 mm + 3 mm
1 10.5 SIC R1 HS02-45 seal. 5 mm
1 10.6 SIC R2 HS02-46 seal. 4 mm + +5 mm
1
1 10.8 SIC R3 HS02-48 seal. 4mm + 3mm + 3mm
BLUE PAPER RISE CARBON · 20 2 3

1 2 REAR AXLE AND DERAILLEUR HANGER

REMOVAL OF PULL & TURN
DERAILLEUR HANGER
QUANT.
1
1
Q UA NT.
1
2
QUANT.
1
1
1
1
1
3
1
1
1
1 1 DE R A IL LE U R H A N GE R N O . 50 X1 2 MT B ST D
ART No.: X160
QUANT.
2
2
13 REAR AXLE BEARINGS KIT FS20
ART No.: X204
13.1
QUANT.
1
15 BOOST THRU-AXLE 12X148 LITE. (12X187X1.5X15)
1
1
ART No.: X206
1
1
1
1
1
GREASE
12.1
12.2
12.3
13.1
11
13.1
12.4
14
15
GREASE
12 FULL SUS. REAR AXLE H/WARE KIT 20
No incluye rodamientos
QUANT. ART No.: X203
1 12.1 Left axle insert
12.2 O-ring seal 13x1
12.3
12.4
14 BOOST THRU-AXLE 12X148 HOLLOW (12X187X1.5X15)
QUANT. ART No.: X205
2
QUANT.
The Hollow and Lite rear thru-axles are both
compatible with Rise frames, with the Lite
1
axle being the lightest option.
ORBEA | 65
EN
Always follow the recommended
torque settings.
GREASE
6
10 N.m
QUANT.
1
1
1
1
QUAN T.
1
