102 | ORBEA
TECHNICAL SPECIFICATIONS OF THE RS 360WH GEN2 INTERNAL BATTERY
VOLTAGE
CAPACITY
WEIGHT
CELLS
CHARGING TIME TO 100% (4A)
With RS Smart Charger
CHARGING TIME TO 80% (4A)
With RS Smart Charger
ASSEMBLY
CONNECTION
SEALING
CERTIFICATIONS
COMPATIBILITY

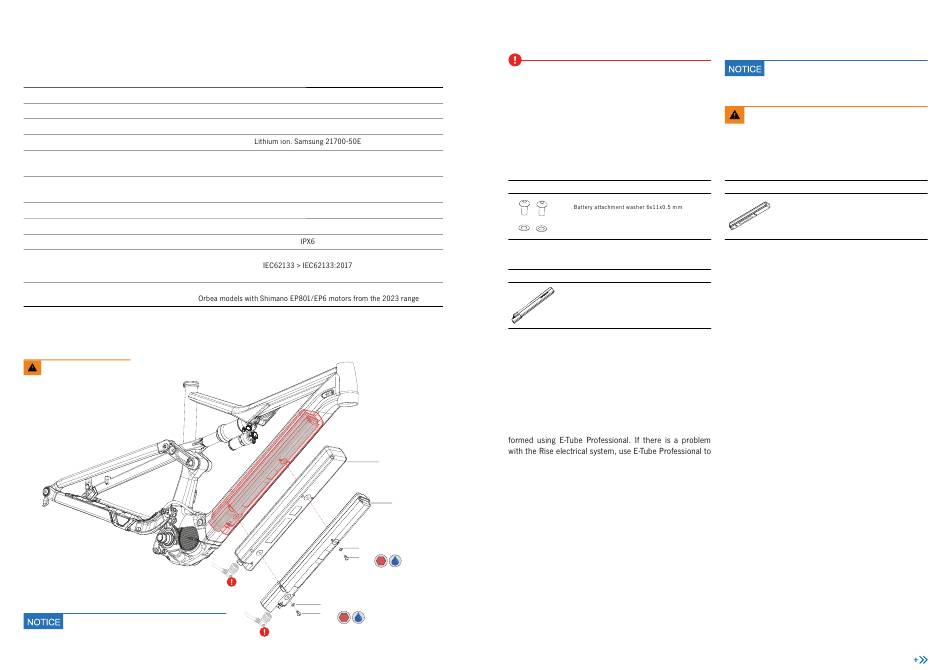

ATTACHMENT O F TH E R S I N TER N A L BAT T ERY TO THE FRA ME
Always follow the recommended
torque settings.
The same method is used to attach the inter-
nal battery to the frame for the 540Wh and
360Wh batteries.
TECHNICAL MANUAL
36 V
360 Wh
Approx 1.95 Kg
3.1 hours
2 hours
Internal. In downtube. Not user removable.
Cable harness to motor and charging port
ISO13849 > ISO13849-1:2015
UN 38.3
Compatible with Orbea Ebike System Gen2 systems in
47
48
46.2
46.1
6
5 N.m
46.2
46.1
6
5 N.m
BLUE PAPER RISE CARBON · 20 2 3
See the section entitled "Wiring of Electrical System
Components" and the section on the installation of
the internal battery for how to connect the cable
harness to the internal battery.
46 RISE H 22 INTERNAL BATTERY FIXING KIT
ART No.: XA88
46.1 Aluminium battery clamping bolt M6x9
46.2
48 ORBEA RS 360WH GEN2 INTERNAL BATTERY
ART No.: X975
Orbea RS 360Wh Gen2 internal battery
RS INTE RN AL BATT ERY
TROUBLESHOOTING
(INFORMATION FOR DEALERS)
Orbea RS internal batteries do not have LEDs to display
battery error codes and troubleshooting cannot be per-
check that the problem is not in another Shimano compo-
nent of the electrical system.
Contact Shimano to provide a system report through a
claim. If Shimano informs you that the problem is related
to the internal battery, contact Orbea via a claim.
See the internal battery removal and insta-
llation section for the complete mounting
process.
Use only original Orbea bolts to attach the
internal battery to the Rise frame.
47 ORBEA RS 540WH GEN2 INTERNAL BATTERY
QUAN T. ART No.: X974
2 Orbea RS 540Wh Gen2 internal battery
2
QUAN T.
1
ORBEA | 103
E N
QUAN T.
1
