SHIMANO AND ORBEA RS GEN2
ELECTRICAL SYSTEM COMPONENTS
COMPATIBILITY NOTICE. GEN2
ELECTRICAL SYSTEM COMPONENTS
The Orbea components of the electrical sys-
tem (internal battery -540Wh or 360Wh-,
Range Extender, cable harness and Smart
Charger) are not compatible with Rise, Kemen
or Urrun models from ranges prior to 2023.
S H I M A N O C O M P O N E N TS *
1
2
3
4
900mm
5
6
8 REMOTE SHIMANO SW-EN600-L
9
cable. With bolts
10 SHIMANO DI2 LEVER SW-M8150-IR
(electronic transmissions)
11 SHIMANO DI2 RD-M8150-12 DERAILLEUR
TECHNICAL MANUAL
These Orbea Ebike Systems components
from the 2023 range are designed to guar-
or 360Wh), the Range Extender and the
Smart Charger are marked with the Gen2
mark to identify their compatibility with
these systems.
ORBEA RS COMPONENTS ART No
12
540Wh 36V Gen2
13
360Wh 36V Gen2
14
Y045
15
2A-4A Gen2
EU/US/UK/AUS
16
XA83
Gen1/Gen2
18
XA86
Gen1/Gen2. 225mm
19
X240
20
X989
BLUE PAPER RISE CARBON · 20 2 3

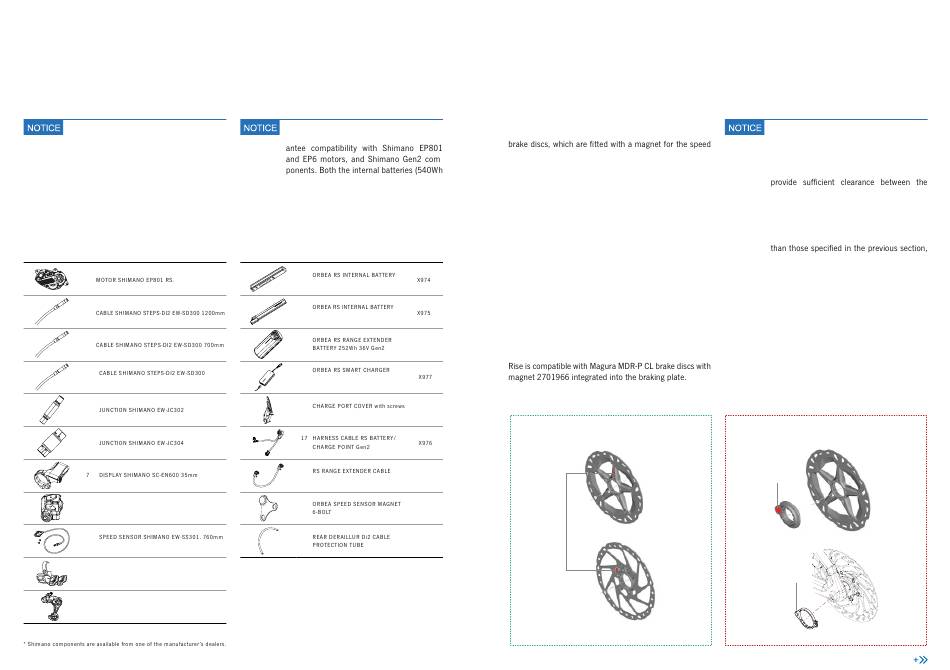

COMPATIBILITY OF CENTERLOCK REAR
BRAKE DISC ASSEMBLIES
Original Orbea assemblies with Centerlock wheels and
discs use Shimano RT-EM600 or Shimano RT-EM910 rear
sensor on the braking plate.
-
In assemblies with Centerlock wheels, if it is necessary
to replace the rear brake disc, or if you wish to replace
the wheels with Centerlock wheels on assemblies with
6-bolt wheels, Rise is only compatible with the following
rear brake disc models with a magnet integrated into the
braking plate:
· Shimano RT-EM600, RT-EM800, RT-EM900
· Shimano RT-EM810, RT-EM910
Shimano brake discs with the speed sensor magnet inte-
grated in the Centerlock locking nut are not compatible
with Rise, as these discs are designed for a different speed
sensor model than the one mounted on Rise, and there-
fore will not provide the system with the correct rear wheel
reading.
COMPATIBLE
OPTIONS
MAGNET
ORBEA | 99
Rise is not compatible with the use of the Or-
bea X095 Centerlock magnet.
This magnet, which is mounted on the
Centerlock disc attachment nut, does not
magnet and the frame and will therefore
damage the frame and/or speed sensor.
Damage to components caused by the use
of this magnet, or brake disc models other
are not covered by the warranty conditions.
NOT COMPATIBLE
OPTIONS
MAGNET
ORBEA
X095
E N
