DISASSEMBLY OF THE RS INTERNAL BATTERY
INFORMATION FOR ORBEA DEALERS
Installation of power assist system compo-
nents requires advanced knowledge and may
be beyond the skill of most users. Always go
and installation of the components of the Rise
electrical system. Damage to components re-
sulting from incorrect installation could void
the warranty on those components.
Orbea recommends that internal batteries
only be replaced by authorised Orbea deal-
ers, as the process requires the removal of
major components of the bicycle and the
electrical system. If you are going to travel
with your bicycle and need to remove the
battery, always take your bike to an Orbea
dealer to avoid damage to the materials and
to ensure that all of the components work
correctly and safely.
Incorrect installation of components can
cause them to fail, which can lead to serious
accidents and injuries. The method for remov-
ing and installing the internal battery is the
same for the 540Wh and 360Wh batteries.
TECHNICAL MANUAL

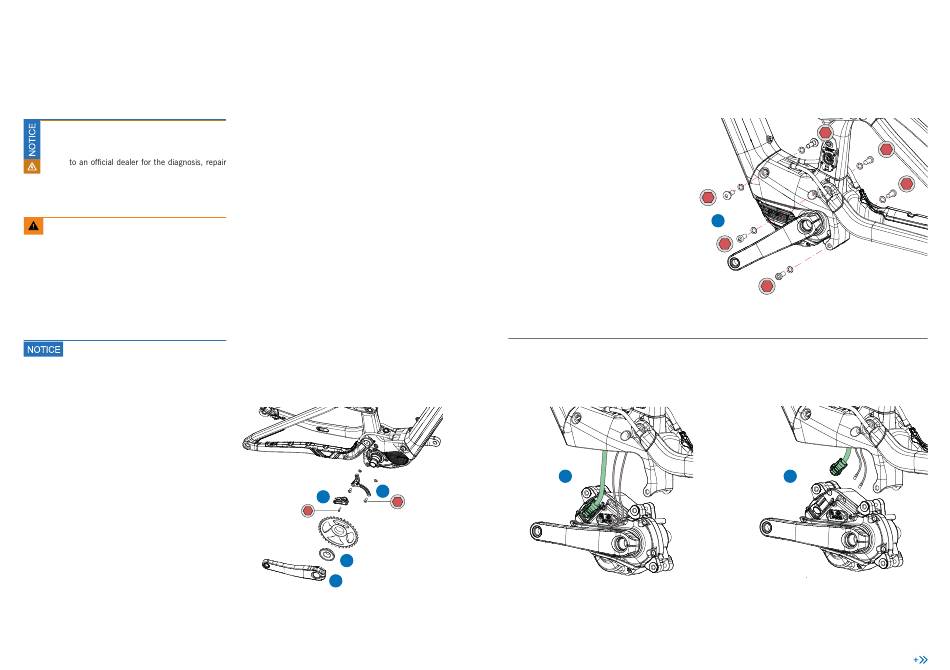

1. Disassemble the right hand crank following the process
recommended by the manufacturer.
Shimano FC-EM900/FC-EM600 Cranks:
https://si.shimano.com/es/dm/DUE001/install_chain-
ring_crank_arms
2. Remove the upper part of the chain guide so that the
chainring can be disassembled.
3. Remove the Shimano lockring from the chainring so that
it can be removed. The lockring is loosened to the right.
The rear wheel and chain need to be installed in order
to be able to lock the chainring rotation by holding the
rear wheel to allow the lockring to be loosened.
Use Shimano tools TL-FC39 and TL-FC33 to remove the
lockring.
4. Remove the chain guide body to gain access to the mo-
tor attachment bolts.
4
2
4
2.5
3
1
BLUE PAPER RISE CARBON · 20 2 3
5. Remove the bolts and washers securing the motor to
the frame, as well as the lower bushing from the left
hand lower attachment point.
6. Carefully remove the motor from the frame to avoid
damaging the cables.
6
6
6
6
5
6
6
7. Disconnect the cable running from the battery to the
motor, and the speed sensor and display cables.
7
