72 | ORBEA

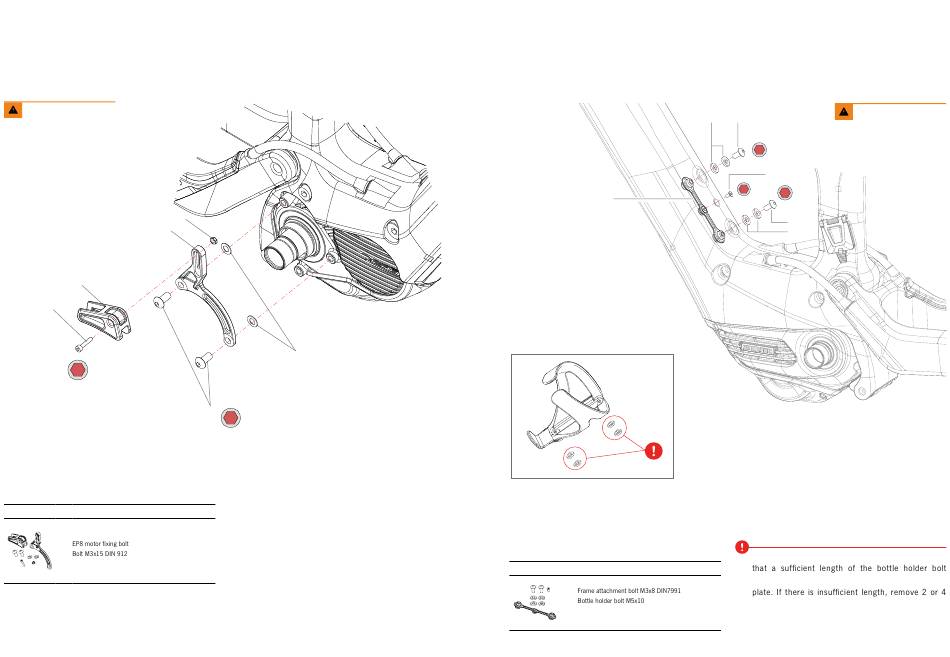

17 C H AI N GU I DE
Always follow the recommended
torque settings.
34.5
34.1
34.2
34.4
2.5
2 N.m
34 RISE CHAIN GUIDE KIT
ART No.: X221
34.1 Rise chain guide mount
34.2 Chain guide
34.3
34.4
34.5 Chain guide attachment nut M3
34.6 Washer M6
34.6
34.3
4
4 N.m
Q UA N T.
1
1
2
1
1
2
TECHNICAL MANUAL BLUE PAPER RISE CARBON · 2023
1 8 F I X IN G TH E B OTTL E H OL D E R
35 RISE CB BOTTLE HOLDER INTERNAL PLATE KIT
ART No.: X227
35.4 35.3
35.1 2 N.m
Inside the frame
Q UAN T.
35.1 Internal bottle holder clamping plate 1
35.2 1
35.3 2
35.4 Washer 6.2x10x2 4
ORBEA | 73
Always follow the recommended
torque settings.
3
5 N.m
35.2
2
3
5 N.m
35.3
35.4
When installing a bottle holder on Rise, make sure
threads are inserted into the threads of the inner
of the supplied washers to achieve the secure at-
tachment of the bottle holder and avoid damaging
the plate's threads. It is necessary to remove the
motor from the frame to replace the bottle holder's
internal attachment plate.
