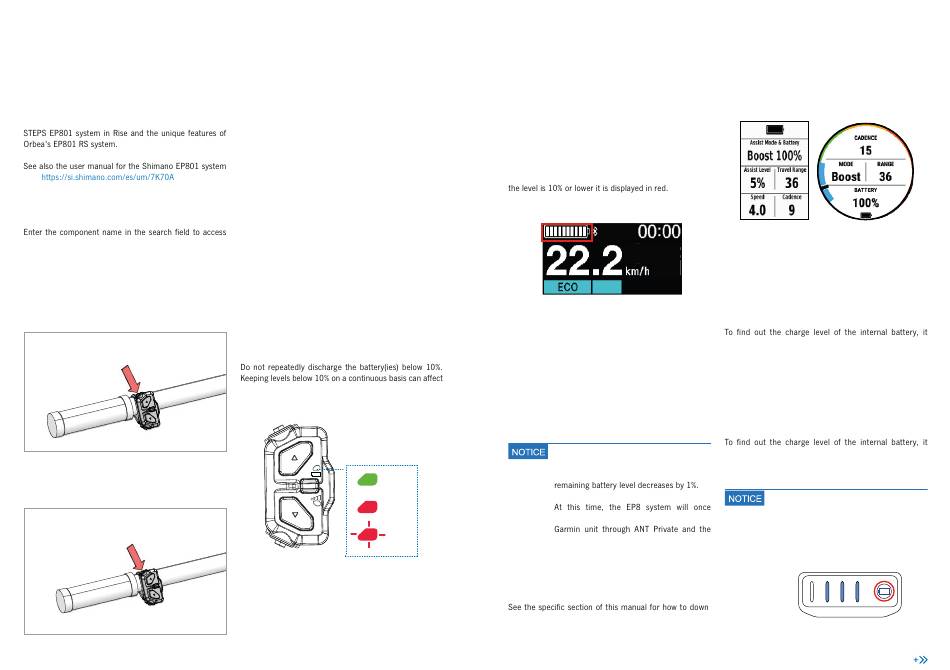

SW I TCHING R ISE ON /O FF
To turn on Rise, press the top button on the Shimano SW-
EN600-L switch unit until the battery charge level is dis-
played on the upper LED.
PRESS &
HOLD (ON)
To turn off Rise, press the top button on the Shimano SW-
EN600-L switch unit until the LEDs on the remote control
turn off.
SHORT
PRESS (OFF)
TECHNICAL MANUAL
DISPLAYING THE CHARGE LEVEL
O F T HE BAT TERY
The Rise battery level can be displayed in several ways,
depending on the mounting option that is chosen.
CHARGE LEVEL OF BOTH THE INTERNAL BATTERY
AND THE RANGE EXTENDER TOGETHER:
When a Range Extender is connected to the bicycle, the
system will calculate the total capacity of both batteries
(internal battery and Range Extender). The charge level
shown by the methods described below shall be the re-
maining charge level of both batteries together, taking into
account the system's total capacity.
· SW-EN600-L switch unit
With the bicycle switched on, LED 1 on the SW-EN600-L
switch unit will show the charge level of the battery(ies).
the useful life of the cells.
LED 1
100-21%
20-11%
<10%
(blink)
The manual for the SW-EN600-L switch unit can be found
here:
https://si.shimano.com/es/manual/search?mod-
el=SW-EN600-L
BLUE PAPER RISE CARBON · 20 2 3
· Shimano SC-EN600 display
On assemblies with a SC-EN600 display, the charge level
of the battery(ies) will be displayed on the screen.
The level of the battery(ies) is displayed at 10 levels. When
The manual for the Shimano SC-EN600 display can be
found here:
https://si.shimano.com/es/manual/search?input_mod-
el=sc-en600
· Compatible Garmin devices. Orbea RS Toolbox
The Orbea RS Toolbox app allows relevant Rise data to be
displayed on your compatible Garmin device, including the
charge level of the battery(ies) as a percentage.
If the remaining battery percentage is not
visible in the Orbea RS Toolbox during cy-
cling, it will become visible again when the
again communicate the battery level to the
battery level will be displayed on the unit.
You can also turn the bicycle off and on
again (with your Garmin device on) to reset
the connection and display the battery level
on your Garmin device.
load and install the Orbea RS Toolbox app on your Garmin
device.
· Orbea RS Gen2 Batteries
360Wh Gen2 internal battery
The Rise internal battery has no LEDs showing the
charge level.
must be connected to the electrical assist system so that
the charge level can be checked using the methods de-
scribed above.
540Wh Gen2 internal battery
The Rise internal battery has no LEDs showing the
charge level.
must be connected to the electrical assist system so that
the charge level can be checked using the methods de-
scribed above.
The Rise Carbon 2023 Gen2 Range Extender
is not compatible with Rise Carbon 2021-
2022, Rise Hydro 2022, Kemen 2022 or
Urrun 2022. See the RS component compat-
ibility table in the corresponding annex of this
manual.
-
