INSTALLATION OF DECORATIVE PANEL(ACCESSORY)
58

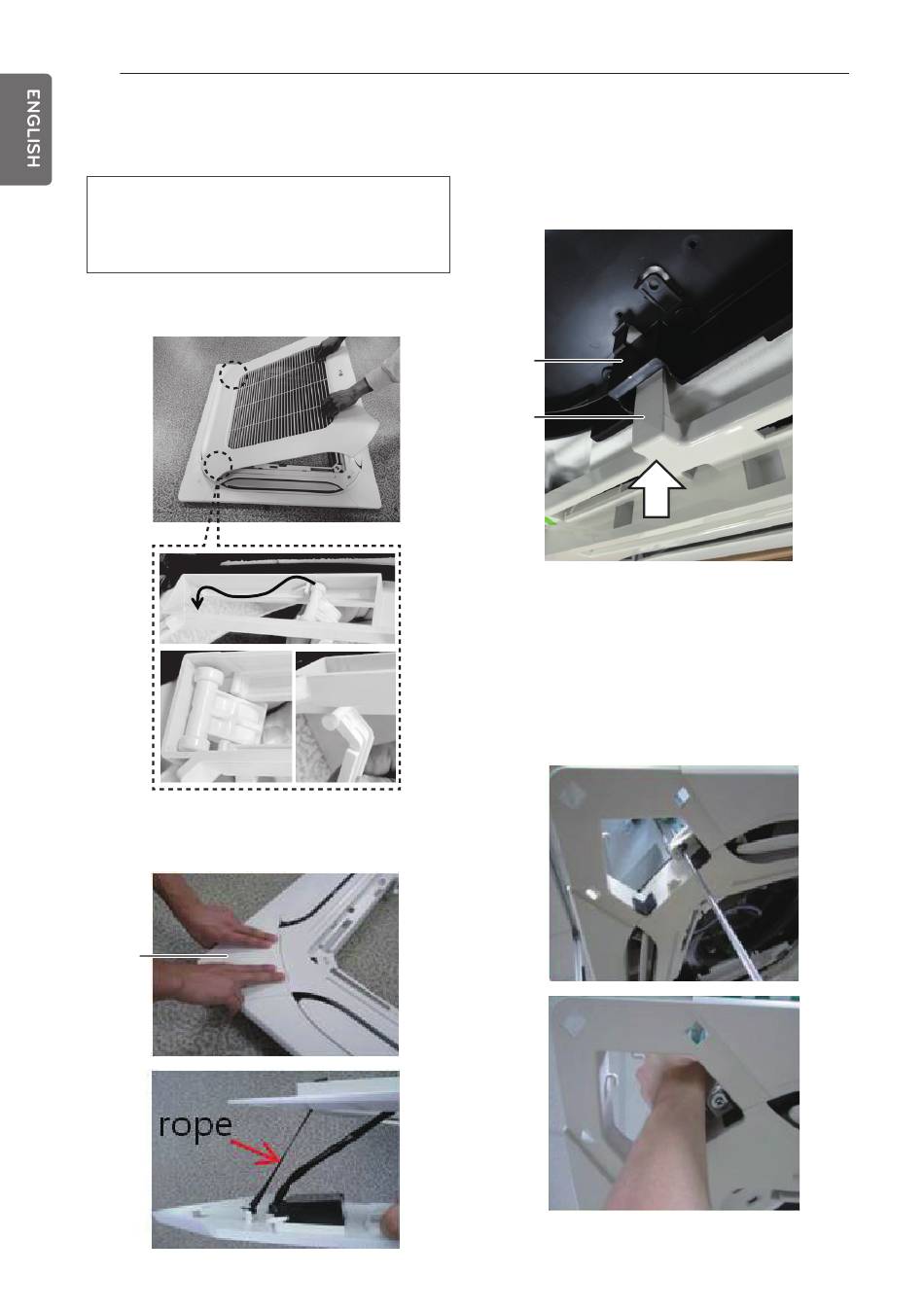

INSTALLATION OF DECORATIVE PANEL(ACCESSORY)
The decorative panel has its installation
direction.
Before installing the decorative panel,
always remove the paper template.
1
Remove the packing and take out air inlet
grille from front panel.
Separate the link from the front grill
2
Remove the Corner covers of the panel.
Corner
cover
3
Fit the panel on the unit by inserting hooks
as shown in picture.
Hook
clip
Hook
4
Insert two screws on diagonal corners of
panel. Do not tighten the bolts completely.
(The fixing screws are included in the
indoor unit box.)
Check the alignment of panel with the
ceiling. Height can be adjusted using
hanging bolts as shown in picture. Insert
the other two screws and tighten all
screws completely.
