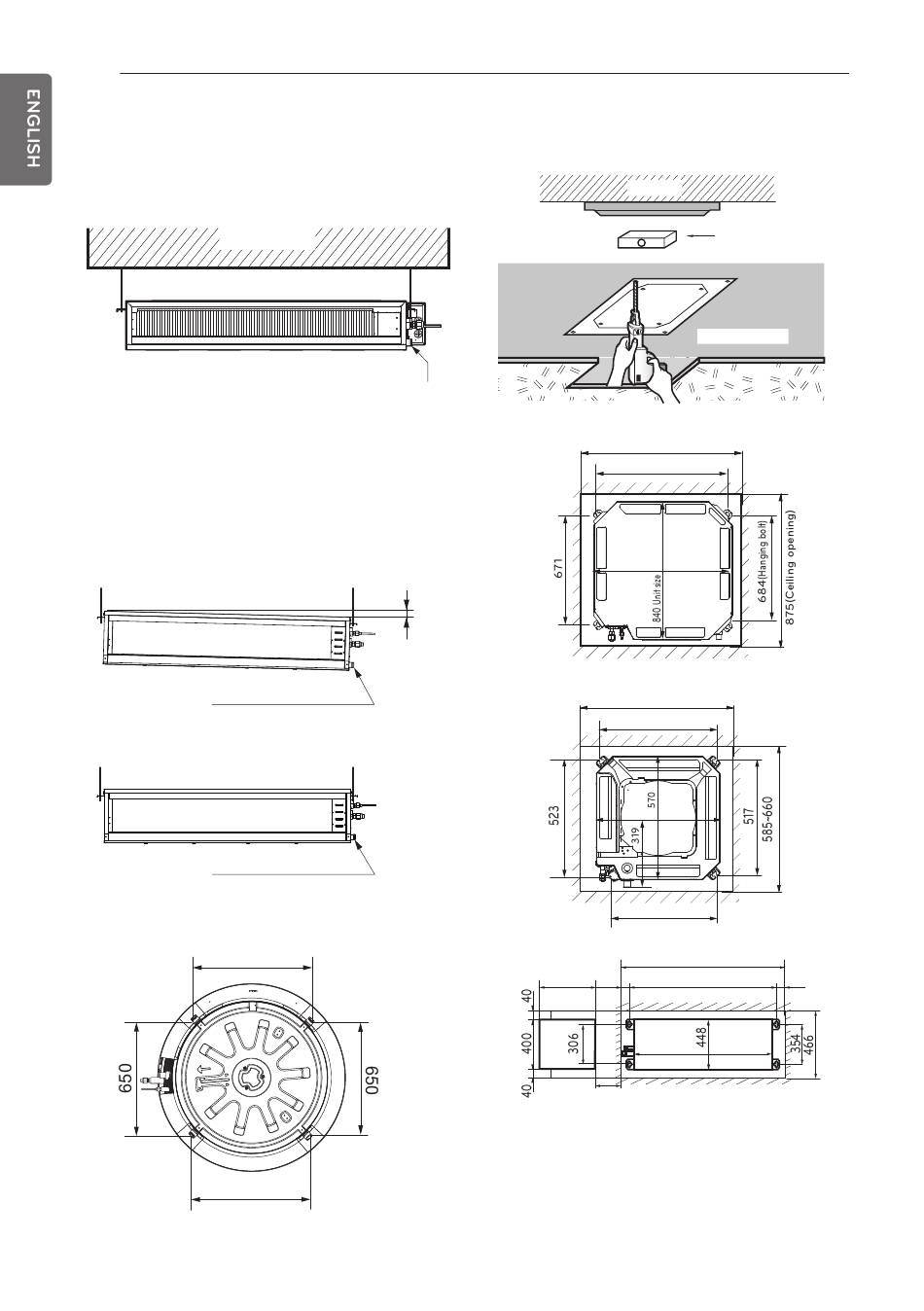

THE INDOOR UNIT INSTALLATION
26
Front of view
- The unit must be horizontal or declined to
the drain hose connected when finished
installation.
Ceiling
Drain Pump use
Ceiling Concealed Duct – Low static
- The unit must be declined to the drain hose
connected when finished installation.
CORRECT
Drainage hole
INCORRECT
Drainage hole
Ceiling Concealed Duct – Mid static
650
650
TY Chassis
[Ceiling Cassette]
Drainage hole
5~10 mm
Unit : mm
Ceiling
Level gauge
Ceiling board
TP/TN/TM Series
875(Ceiling opening)
787(Hanging bolt)
840 Unit size
TQ/TR Series
585~660
517
570
461
TU Chassis
1 065
600 50 965
860
250
Unit:mm
Unit:mm
50
