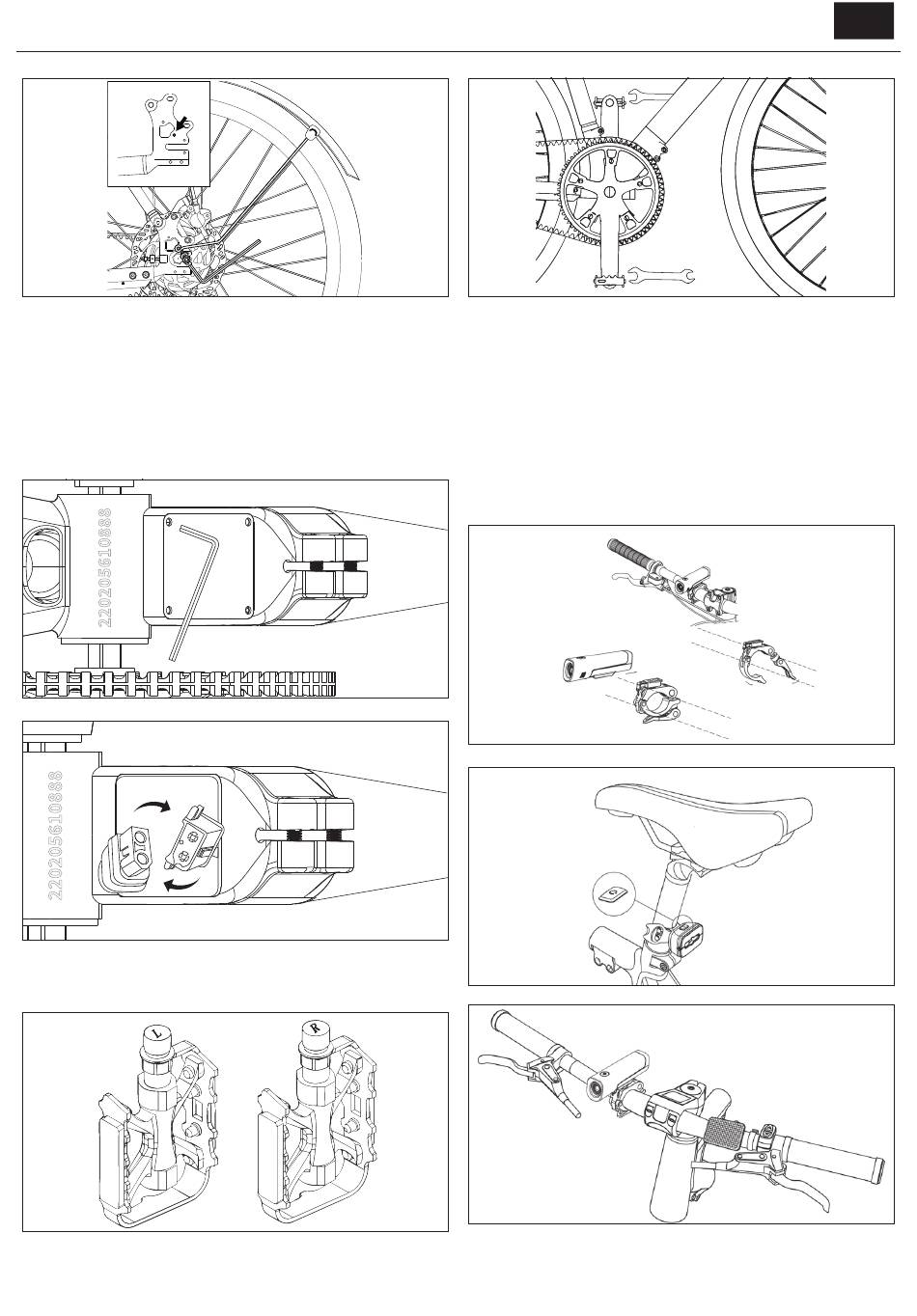

STEP 7: Connect the Cable
Turn your bike up side down.
a. Loosen the four screws on the cover next to the bottom bracket in a
counterclockwise direction with a 3 mm Allen key, then remove the
screws and the cover, as shown in Figure 7-1.
b. Connect the cable between the battery and the controller, as shown
in Figure 7-2.
c. Put the cover back and re-tighten the screws.
STEP 8: Install the pedals
a. Use the 15 mm wrench to mount the pedals, as shown in Figure 8-1.
Figure 6-3
8
Figure 7-1
Figure 7-2
NOTES:
Check the end cap on both pedals to identify the left pedal and right pedal.
Please note that the right pedal will tighten clockwise, while the left pedal will
tighten counterclockwise.
Make sure the torque is 18 N·m.
8-10扳手
13-15扳手
STEP 9: Install the lights, reflector, etc.
17-19扳手
8字过线卡
a. Mount the front light on the handlebar, as shown in Figure 9-1.
b. Mount the tail ight on the saddle pipe, as shown in Figure 9-2.
c. Mount the front reflector and bell on the handlebar, as shown in Figure
9-3.
L
R
Figure 8-1
Figure 9-1
Figure 9-2
Figure 9-3
