Figure 4-4
NOTES:
If there is no tension when locking the quick release lever, you will need to
tighten it more.
This step is very important and related to ride safety. If you cannot complete
the installation as required, please seek the help of a professional.

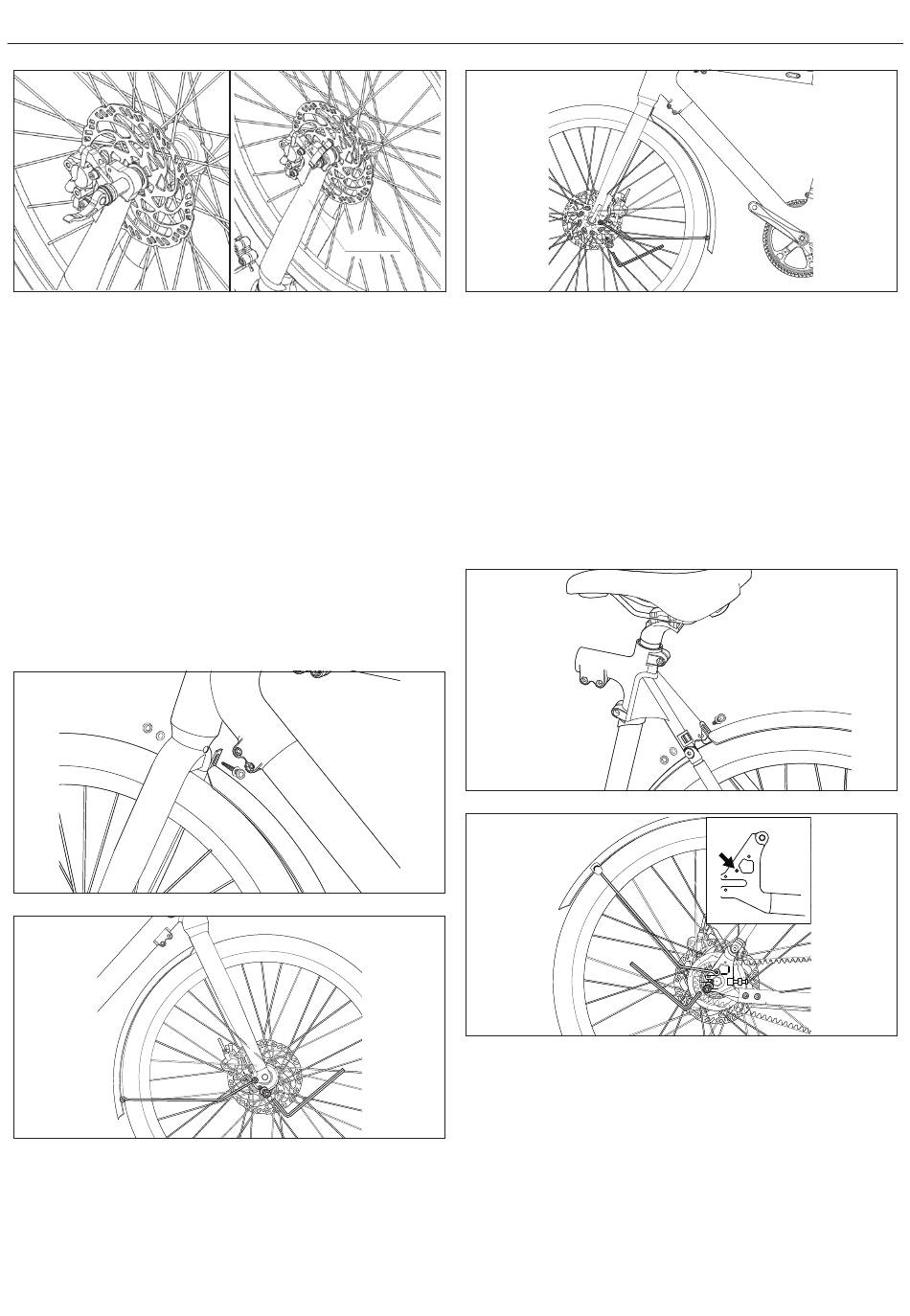

STEP 5: Install the front fender
a. Use a 10 mm open-end wrench to loosen the fender bolt nut on the
inside of the front fork bridge, and then remove the bolt and nut.
b. After aligning the fender with the screw hole, retighten the mounting
screws to affix it onto the front fork, as shown in Figure 5-1.
c. After confirming that the front fender is aligned with the screw hole,
use a 5 mm Allen key to push the bolt and a 10 mm open-end wrench
to retighten the nut on the other side. Don't forget the spacers.
d. After fastening the upper bracket, use a 4 mm Allen key to remove
the 2 screws at the bottom of the front fork. Then, align the legs of the
front fender with the installation holes at the bottom of the front fork,
as shown in Figures 5-2 and 5-3, and then re-tighten the screws to
about 3-5 N·m.
12 (Fork)
Figure 4-5
Figure 5-1
Figure 5-2
STEP 6: Install the rear fender
a. Use a 10 mm open-end wrench to loosen the fender bolt nut on the
seat tube joint, and then remove the bolt and nut.
b. After aligning the fender with the screw hole, retighten the mounting
screws to affix it onto the seat tube joint, as shown in Figure 6-1.
c. After confirming that the front fender is aligned with the screw hole,
use a 5 mm Allen key to push the bolt and a 10 mm open-end wrench
to retighten the nut on the other side to the torque of 4-6 N·m. Don't
forget the spacers.
d. After fastening the upper bracket, use a 4 mm Allen key to remove the
2 screws at the dropout. Then, align the legs of the fender with the
installation holes, as shown in Figures 6-2 and 6-3, and then re-tighten
the screws.
Figure 5-3
Figure 6-1
Figure 6-2
