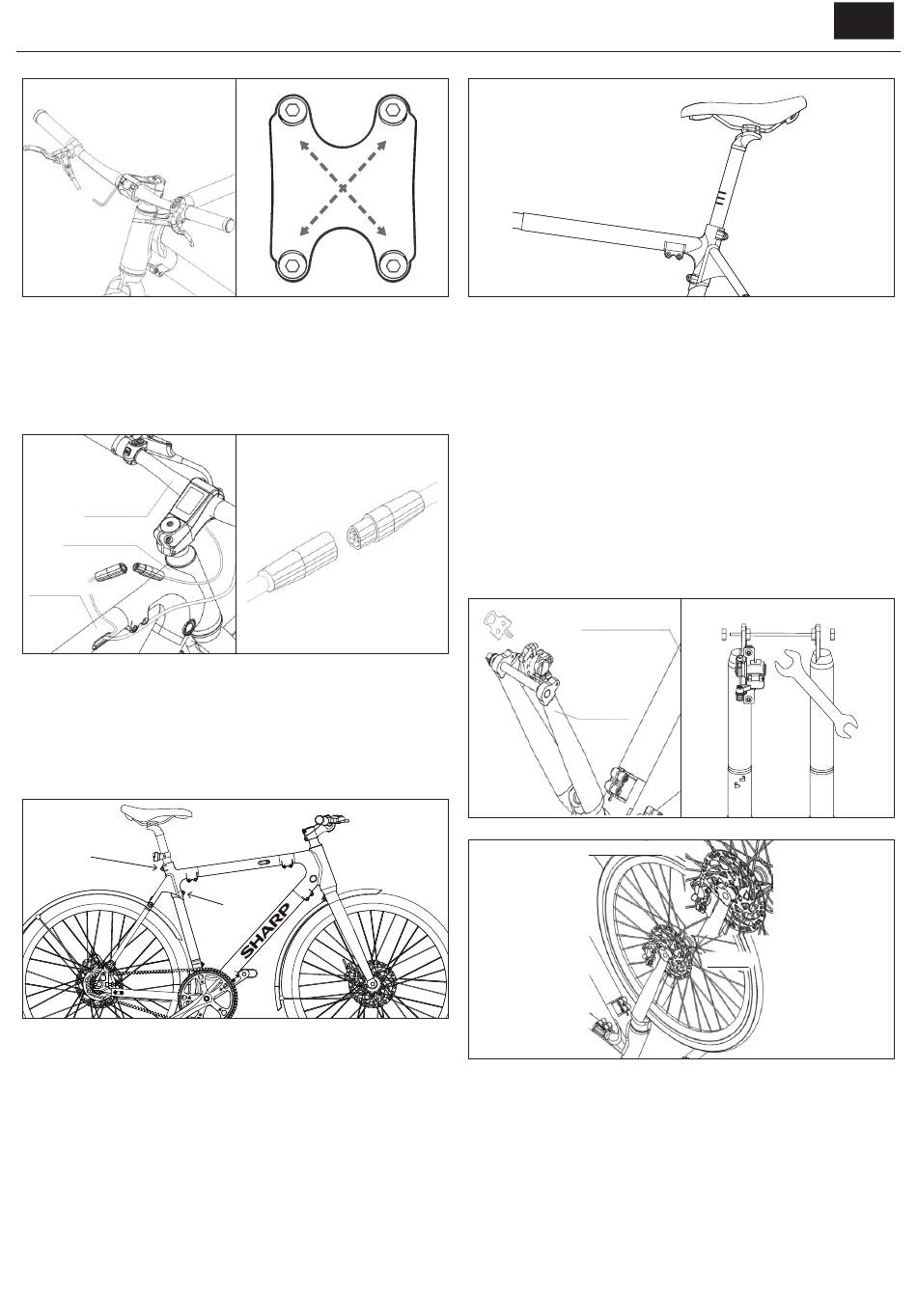

NOTE: Make sure the torque of bolts ABCD is about 6-8 N·m.
STEP 2: Cable management
a. Connect the display sensor cable, as shown in Figure 2-1 and Figure
2-2.
b. Add cable snaps to manage the cables.
13 (Handlebar)
1 (head-tube joint)
3 (top-tube)
Figure 2-1
STEP 3: Install the seat
F J
a. Loosen the bolts
and in a counterclockwise direction with a 5 mm
Allen key, insert the seat post in frame, as shown in Figure 3-1.
b. Adjust the saddle height to your proper height. Do not exceed
themaximum height limit of the saddle, as shown in Figure 3-2. Then
tighten bolts F and J.
F
A
D
Figure 1-5
Figure 2-2
J
Figure 3-1
C
B
NOTE: Make sure the torque of bolts F and J is about 20 N·m
STEP 4: Install the front wheel
You need to turn the e-bike upside down before installing front wheel.
a. Pull off the plastic chip from the brake caliper, as shown in Figure 4-1.
b. Use a 15 mm open-end wrench to loosen screws and in sequence, as
shown in the Figure 4-2, and remove the front fork protector.
c. Place the front wheel into front fork, making sure to carefully insert the
disc in between the brake calipers, as shown in Figure 4-3.
d. Insert the quick release lever from the disc side as far as you can. You
may need to slightly adjust the front wheel so that the quick release
lever can pass smoothly. Screw clockwise it in until it feels tight, as
shown in Figure 4-4.
e. Lock the quick release lever, as shown in Figure 4-5. It is much better to
put the quick release lever pointing upwards aligned with the fork arm.
2 (down-tube)
12 (fork)
Figure 4-1
16 (Front wheel)
Figure 3-2
Figure 4-2
12 (Fork)
Figure 4-3
