OPERATING THE OPTIONAL TWO-STAGE I.V. POLE

To use the two-stage I.V. pole (see Figure 48):
1 . Lift and pivot the pole from the storage position and push down until it is locked into the receptacle (A) .
2 . To raise the height of the pole, turn the lock actuator (B) counterclockwise and pull up on the telescoping portion
(C) of the pole to raise it to the desired height .
3 . Turn the lock actuator (B) clockwise to lock the telescoping portion in place .
4 . Hang the I . V . bags on the I . V . hook (D) .
5 . Turn the lock actuator (B) counterclockwise and slide section (C) into the bottom tube .
6 . Turn the lock actuator (B) clockwise to tighten .
7 . Lift up and pivot the pole down into the storage position (see Figure 47) .
CAUTION
To avoid damage to the I . V . pole, the weight of the I . V . bags or equipment must not exceed 40 lb (18 kg) .
Note: The dual two-stage I . V . poles (p/n 6500-212-000) are not compatible with either the patient right (6500-210-000)
or patient left (6500-211-000) two-stage I . V . pole options .

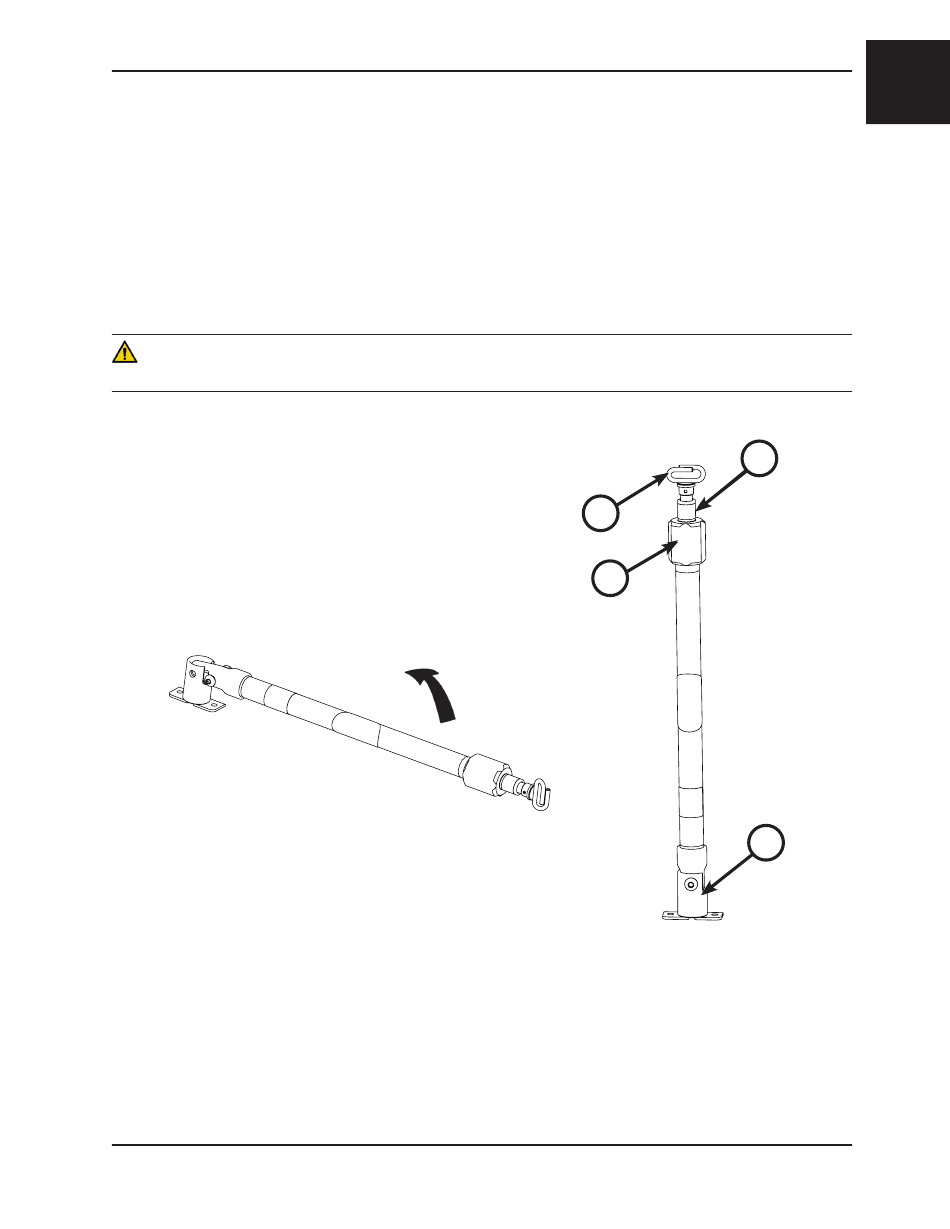

Figure 47: Two-Stage I.V. Pole Storage Position
