OUTER, INNER TUBE REPLACEMENT

Tools Required:
• (2) Saw Horse
• 3/8" Combination Wrench
• 7/16" Combination Wrench
• T25 Torx Driver
• (2) 9/16' Combination Wrench
• Dead Blow Hammer
• T27 Torx Driver
•
Procedure:
1 . Complete steps 1-7 from "Inner, Inner Tube
Replacement" on

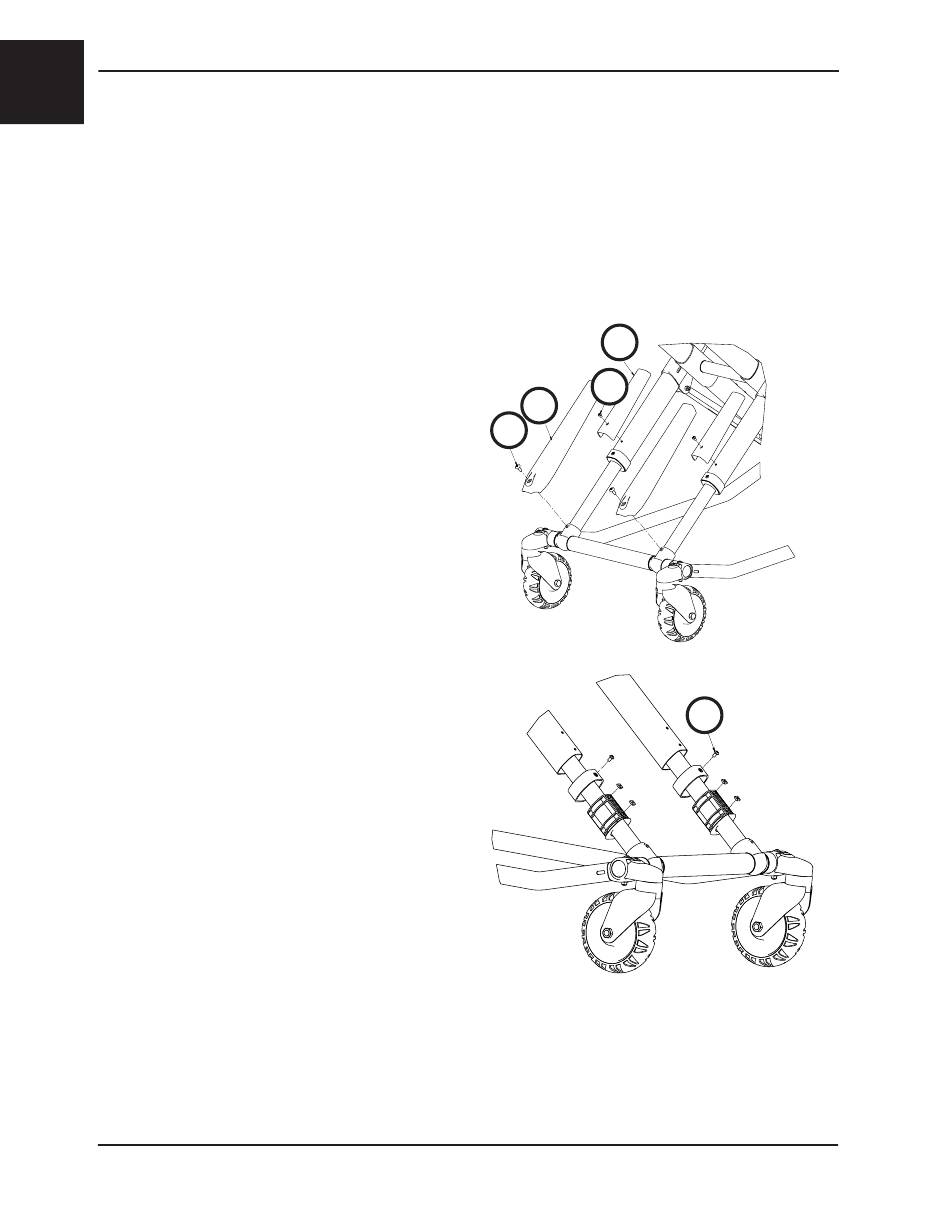

2 . Using a T27 Torx driver, remove the truss head
screw (A) that secures the X-frame guard (B) to the
inner tube (see Figure 72) .
3 . Using a T25 Torx driver, remove the two button head
cap screws (C) that secure the tube bearing .
4 . Remove the inner tube and save the tube bushings
to reuse on the new tube .
5 . Reverse the above procedures to install the new
inner tube .
Note: Make sure that the X-frame guard
screw hole on the new inner tube is facing
the top of the cot when reassembling .
6 . Verify proper operation of the unit before returning
it to service .
Return To Table of Contents
1-66
Service Information
page 1-65 .
6086-009-005 REV A
B
A
B
A
Figure 72
Figure 73
C
