COT RETAINING POST REPLACEMENT

Tools Required:
• T30 Torx Driver
• 5/32" Hex Wrench
• Torque Wrench (in-lb)
Procedure:
1 . Raise the cot to the full upright position .
2 . Turn the cot onto the patient left side .
Note: Locate the arrow that is located on the bottom
bracket . The replacement retaining post bracket will
need to be assembled in the same orientation .

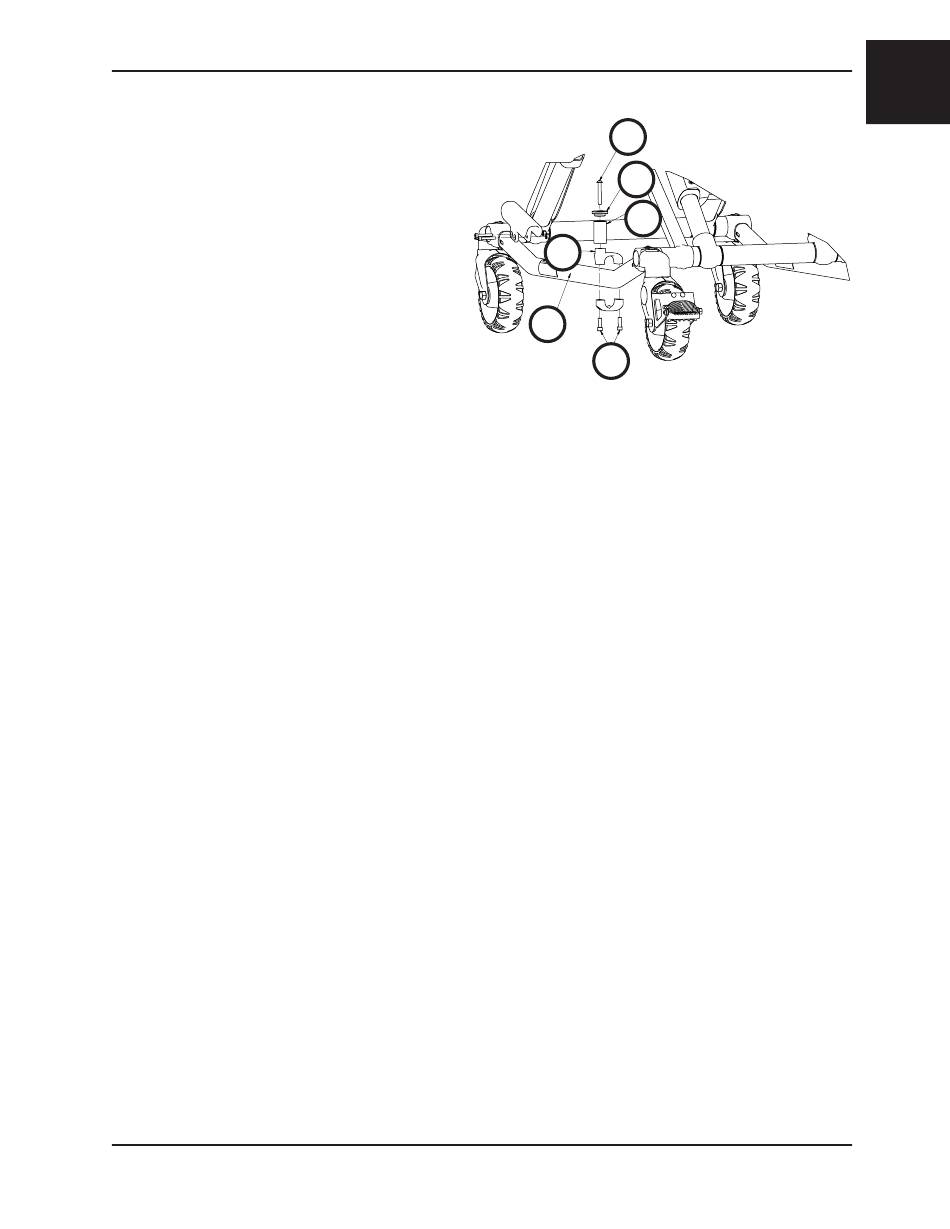

3 . Using a T30 Torx driver, remove the two socket head cap screws (A) that secure the current cot retaining post to
the base tube (B) (Figure 65) . Discard the screws and cot retaining post .
4 . Insert the button head cap screw (C) through the retaining post cap (D) and post tube (E), and then into the top
pin bracket (F) (Figure 65) .
5 . Using a 5/32" hex wrench, tighten the button head cap screw (C) completely to secure the retaining post cap (D)
and post tube (E) to the top pin bracket (F) (Figure 65) . Using a torque wrench, torque the screw to 100-140 in-lb .
6 . Assemble the cot retaining post across the base tube . Align the holes of the retaining post halves and insert the
two socket head cap screws into the threaded holes of the retaining post top .
7 . Using a T30 Torx driver, tighten the two socket head cap screws completely .
8 . Verify proper operation of the unit before returning it to service .
Note: Adjustment of the rail clamp assembly may be required in order to compensate for any variation in cot retaining
post position depending on the ambulance cot manufacturer and model number .

COT RETAINING POST SCREW REPLACEMENT

Tools Required:
• T25 Torx Driver
• 5/32" Hex Wrench
• Torque Wrench (in-lb)
Procedure:
1 . Using a T25 Torx driver or 5/32" hex wrench, remove the button head cap screw that secures the retaining post
cap and post tube to the top pin bracket . Discard the screw .
2 . Using a 5/32" hex wrench, install and tighten the button head cap screw (p/n 0004-503-000) completely to secure
the retaining post cap and tube to the top portion of the retaining post assembly . Using a torque wrench, torque
the screw to 100-140 in-lb .
Note: If you cannot torque the screw to 100-140 in-lb, then you must replace the entire cot retaining post . See
"Cot Retaining Post Replacement" .
3 . Verify proper operation of the unit before returning it to service .
www.stryker.com
Service Information
B
6086-009-005 REV A
C
D
E
F
A
Figure 65
