ADJUSTING THE OPTIONAL KNEE GATCH
To raise the knee gatch (see Figure 34):
1 . Lift either of the red lifting loops (A) until the knee gatch is in its fully raised position .
2 . Slowly lower the knee gatch to allow the support bracket to engage in the locking mechanism .
3 . Check to be sure the lock is fully engaged before releasing the lifting loop .
To lower the knee gatch:
1 . Lift either of the red lifting loops to relieve pressure on the locking mechanism and while holding the loop, push on
the red release handle (B) until the bracket disengages .
2 . Carefully lower the knee gatch to the flat position .

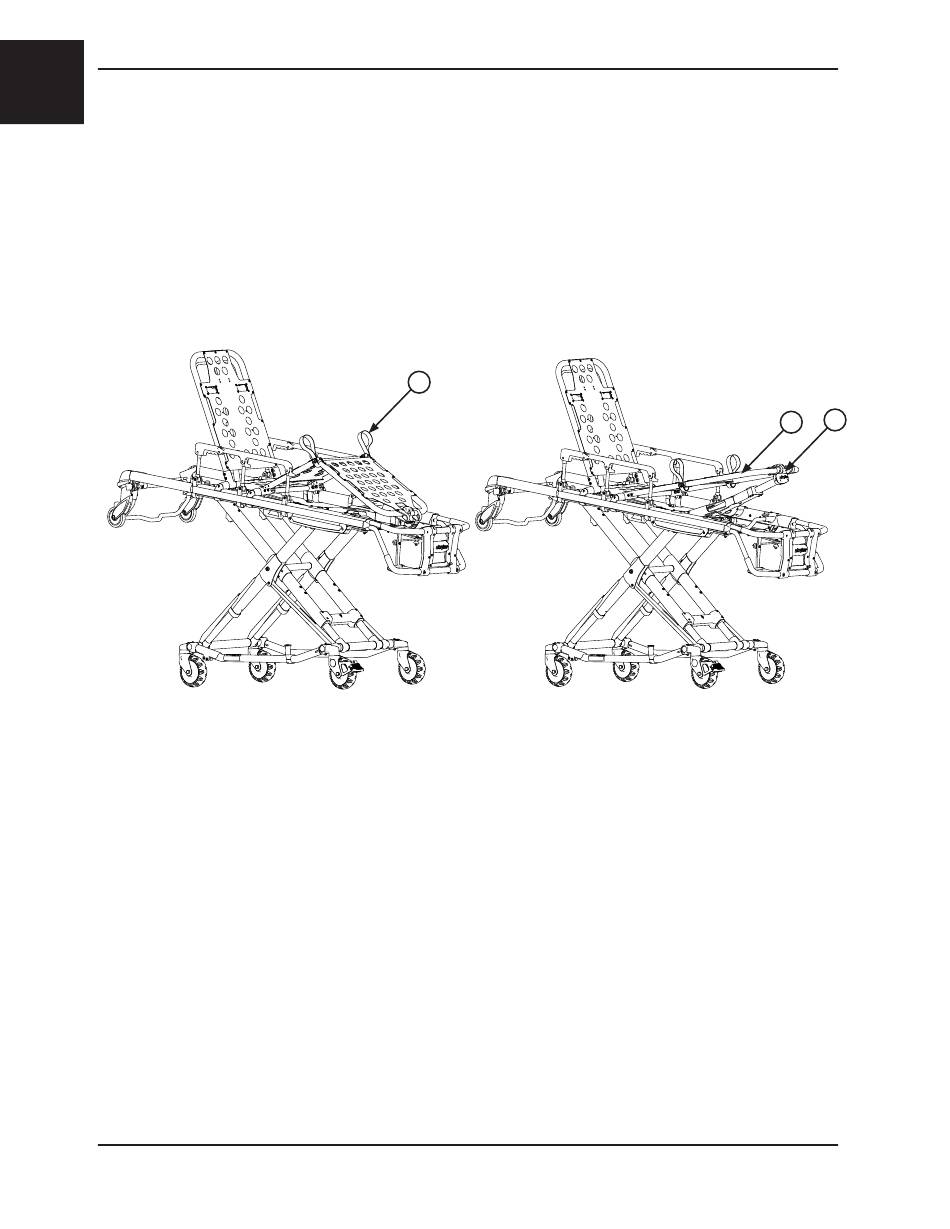

Figure 34: Raised Knee Gatch
To raise the knee gatch in trend (see Figure 35):
1 . Lift the foot rest frame (C) as high as possible until it locks into place .
2 . The support bracket engages automatically when released .
To lower the knee gatch in trend:
1 . Lift the foot rest frame (C) and, while holding the frame, lift up on the release handle (B) until the bracket
disengages .
2 . Carefully lower the footrest until it rests flat .
