WHEEL LOCKING FORCE ADJUSTMENT

Tools Required:
• 5/32" Hex Wrench
• 7/16" Combination Wrench or Socket
Procedure:
1 . Using the 5/32" hex wrench and 7/16" combination wrench or socket, remove the socket screw from the center of
the lock pedal . The wheel lock is initially assembled with the pedal set at the minimum locking force . The marker
on the pedal (A) is aligned with the marker on the octagonal sleeve (B) (Figure 63) .
2 . Remove the sleeve (B) . Rotate the sleeve counterclockwise to increase the pedal locking force and clockwise to
decrease the locking force . Insert the sleeve into the pedal (Figure 63) .
3 . Using the 5/32" hex wrench and 7/16" combination wrench or socket, reinstall the socket screw .
4 . Test the pedal locking force and verify that the pedal holds properly before returning it to service .
B
A
MINIMUM
www.stryker.com
Service Information

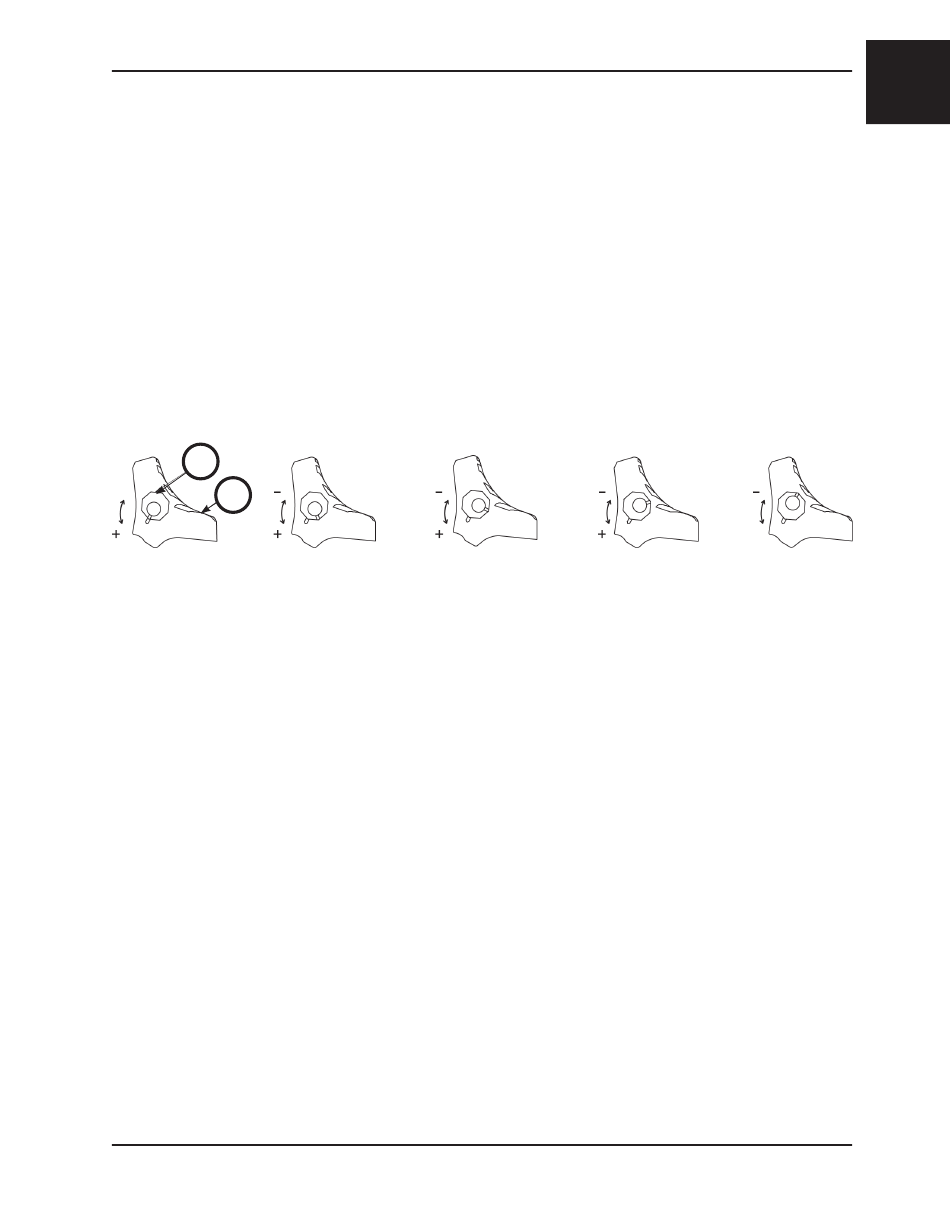

Figure 63: Wheel Locking Force Adjustment
