EN

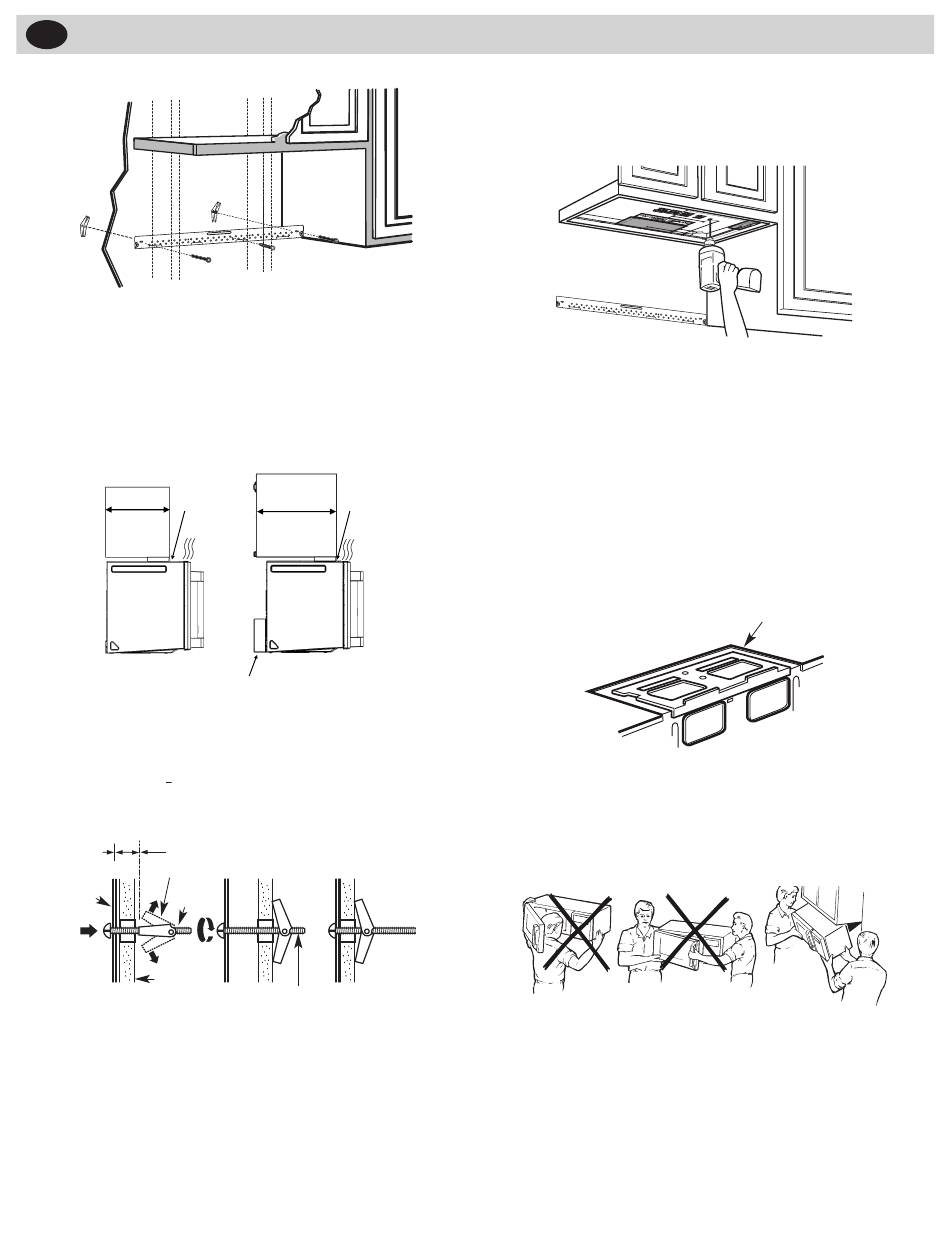

A1. ATTACH THE MOUNTING PLATE TO THE WALL
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to a wall
stud.
NOTE: If the cabinet depth, including the cabinet doors,
is more than 13", then the unit must be spaced out
from wall using adequate materials supporting 150 lbs
to allow proper top vent air exhaust/intake.
Outside exhaust or
recirculating when
cabinet depth <13"
< 13"
¼"
min
< (33cm)
clearance
Cabinet
1. Remove the toggle wings from the bolts.
2. Insert the bolts into the mounting plate through the
holes designated to go into drywall and reattach the
toggle wings to ⁄ " (19 mm) onto each bolt.
3
4
To use toggle bolts:
Spacing for Toggles
More Than Wall
Thickness
Toggle Wings
Toggle
Mounting
Bolt
Plate
Wall
3. Place the mounting plate against the wall and insert
the toggle wings into the holes in the wall to mount the
plate.
NOTE: Before tightening toggle bolts and wood screw,
make sure the bott m of the mounting plate touch the
bottom of the cabinet when pushed flush against the wall
and that the plate is properly centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers be-
tween the back of the mounting plate and the wall.
4. Tighten all bolts. Pull the plate away from the wall to
help tighten the bolts.
Outside exhaust or
recirculating when
cabinet depth >13"
> 13" ¼"
min
> (33cm) clearance
Cabinet
Spacer is
needed
Bolt End
A2. USE TOP CABINET TEMPLATE FOR PREPARA-
TION OF TOP CABINET
You need to drill holes for the top support screws and a
hole large enough for the power cord to fit through.
• Read the instructions on the TOP CABINET TEMPLATE.
• Tape it underneath the top cabinet.
NOTE: Adjust top template accordingly if the microwave
is being spaced out from the wall due to cabinet depth
(including cabinet doors) of more th n 13".
• Drill the holes, following the instructions on the TOP
CABINET TEMPLATE.
CAUTION: Wear safety goggles when drilling holes in the
cabinet bottom.
A3. CHECK BLOWER PLATE
• Place the microwave in its upright position, with the top
of the unit facing up.
• Check to see that the blower plate is correctly installed
on the unit.
A4. MOUNT THE MICROWAVE OVEN
FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE
RECOMMEND THAT TWO PEOPLE INSTALL THIS MICRO-
WAVE OVEN.
IMPORTANT: Do not grip or use the handle or heat
shield during installation. Do not remove the cardboard
spacers between the heat shield and door.
NOTE: If your cabinet is metal, use the nylon grommet
around the power cord hole to prevent cutting of the cord.
NOTE: We recommend using filler blocks if the cabinet
front hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are not used, case damage
may occur from overtightening screws.
Blower Plate
9
