A6.6 Make sure the carbon filter (OTRFILTER1) is nested
vertically in the slot. Close access door,tighten
screw and the carbon filter (OTRFILTER1) is ready
to use.

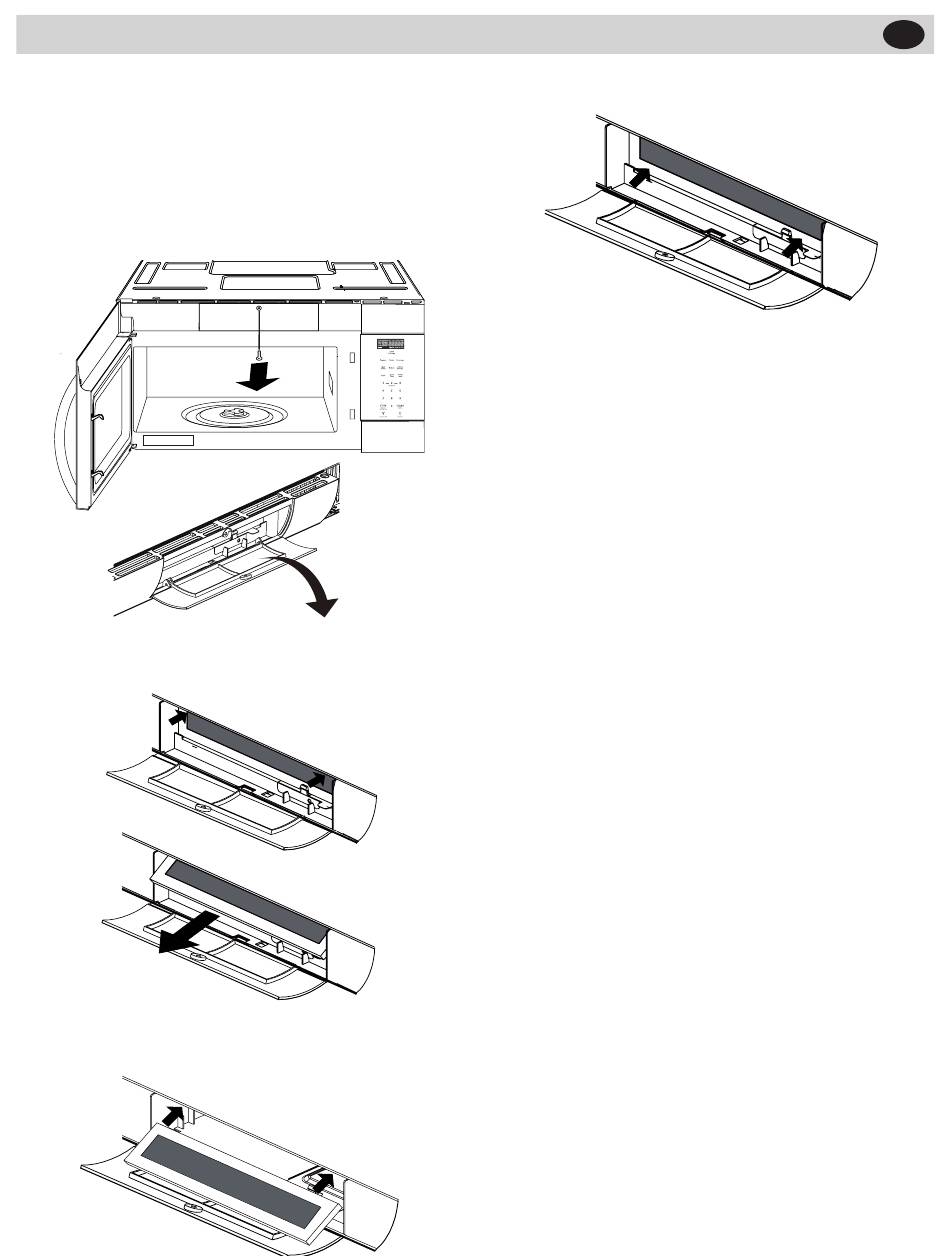

A7. FILTER ACCESS DOOR CHARCOAL FILTER
(UPPSEENDE)
NOTE: The charcoal filter is factory installed in UPPSEENDE.
Refer to the Advice & Intructions to see if yours is factory
installed and for replacement information.
A7.1 Remove the charcoal filter by pushing the top of the
filter inwards,then pull it forward out from the unit.
A7.2 Slide the top of the new charcoal filter into the top
of the filter cavity.
12
A7.3 Press the bottom of charcoal filter to place it into
the correct position.
A7.4 Close access door.tighten screw and charcoal filter
is ready to use.
3. INSTALLATION INSTRUCTIONS FOR
EXTERNAL EXHAUST DUCTING
NOTE: If you need to install ducts, note that the total
duct length of 3 ⁄ " x 10" (8.2 x 25.4 cm) rectangular or
1
4
or 5" (12.7 cm) diameter/ 6" (15.2 cm) diameter round
duct should not exceed 120 equivalent feet (36.5 m).
Outside ventilation requires an EXTERNAL EXHAUST
DUCT.Read the following carefully.
NOTE: It is important that venting be installed using the
most direct route and with as few elbows as possible. This
ensures clear venting of exhaust and helps prevent block-
ages. Also, make sure dampers swing freely and nothing
is blocking the ducts.

Exhaust connection:

The exhaust adaptor has been designed to mate with a
standard 3/4" x 10" (8.2 x 25.4 cm) rectangular duct.
If a round duct is required, a rectangular-to-round transi-
tion adaptor must be used. A 5" (12.7cm)/ 6" (15.2cm)
diameter duct is acceptable to use.
Maximum duct length:
For satisfactory air movement, the total duct length of
3/4" x 10" (8.2 x 25.4 cm) rectangular or 5" (12.7 cm)
diameter/ 6 " (15.2 cm) diameter round duct should not
exceed 120 equivalent feet (36.5 m).
Elbows, transitions, wall and roof caps, etc.,
present additional resistance to airflow and are equivalent
to a section of straight duct which is longer than their ac-
tual physical size. When calculating the total duct length,
add the equivalent lengths of all transitions and adaptors
plus the length of all straight duct sections. The chart be-
low shows you how to calculate total equivalent ductwork
length using the approximate feet of equivalent length of
some typical ducts.
