EN

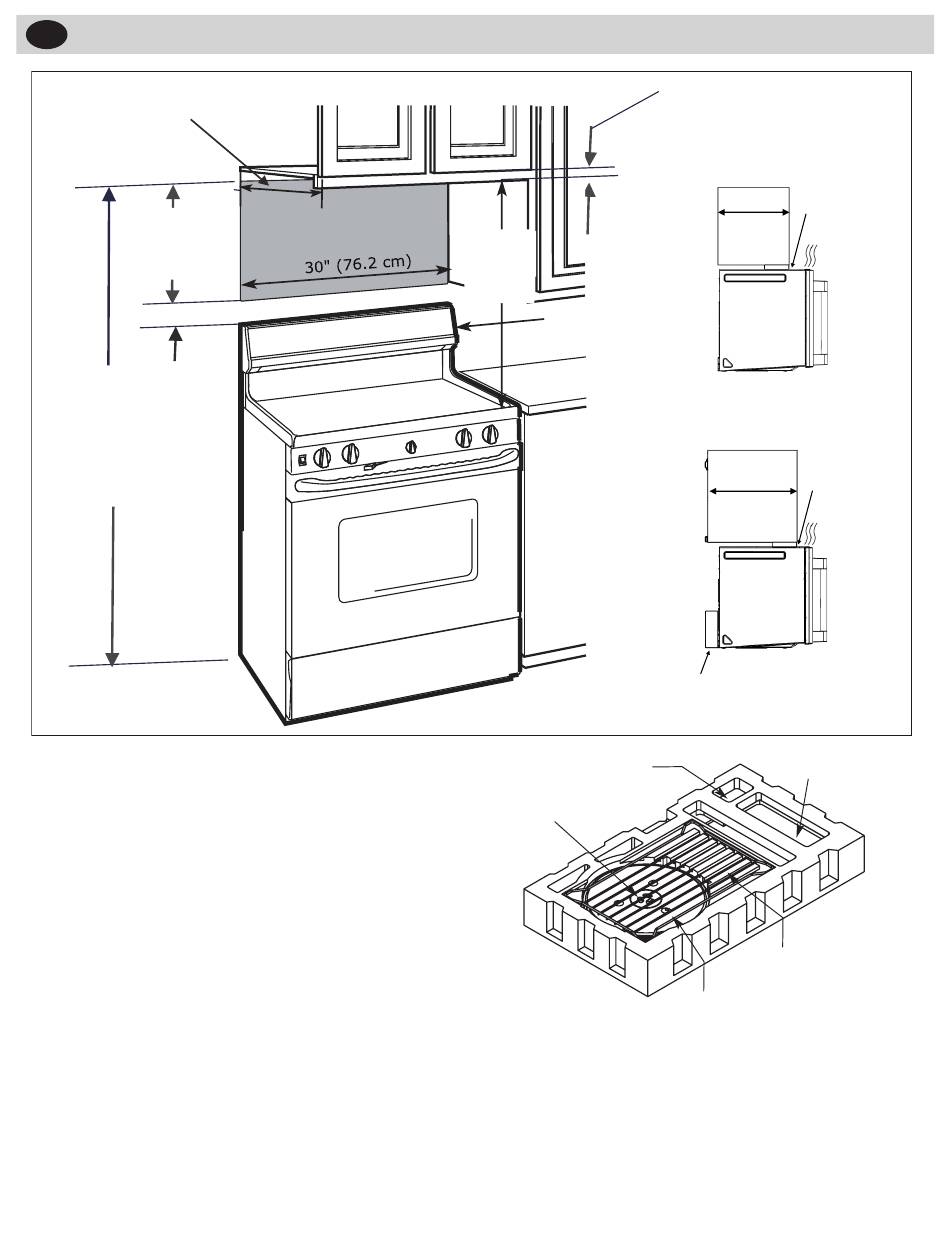

13" (33cm) recommend ed
16 ½"
(41.9 cm)
2" (5.1 cm)
66"
(167.6 cm)
or more from the
floor to the top of
the microwave
• The space between the cabinets must be 30" (76.2 cm)
wide and free of obstructions.
• If you are going to vent your microwave oven to the
outside, see Hood Exhaust Section for exhaust duct
preparation
• When installing the microwave oven beneath smooth,
flat cabinets, be careful to follow the instructions on the
top cabinet template for power cord clearance.
• As a guide to installation, see page 22 for Mounting
Template Information.
•
If the cabinet depth, including the cabinet doors, is
more than 13",
then the unit must be spaced out
from wall using adequate materials supporting 150 lbs
to allow proper top vent air exhaust/intake.
1 PLACEMENT OF THE MOUNTING
PLATE
A. REMOVING THE MICROWAVE OVEN FROM
THE CARTON/ REMOVING THE MOUNTING
PLATE
1. Remove the installation instructions,use and care,
exhaust adapter, turntable ring, shelf, filters, glass
tray and the small hardware bag. Do not remove the
Styrofoam protecting the front of the oven.
30"
(76.2 cm)
min.
Backsplash
Fitting Bag
Filters and Turntable
Ring below glass tray
2. Fold back all 4 carton flaps fully against carton sides.
Then carefully roll the oven and carton over onto the
top side. The oven should be resting in the Styro-
foam.
Mounting Space
¼" Min
Clearance
Outside exhaust or
recirculating when
cabinet depth <13"
< 13"
¼"
min
< (33cm)
clearance
Cabinet
Outside exhaust or
recirculating when
cabinet depth >13"
> 13" ¼"
min
> (33cm) clearance
Cabinet
Spacer is
needed
Exhaust Adapter
Shelf (For some
models)
Glass Tray
