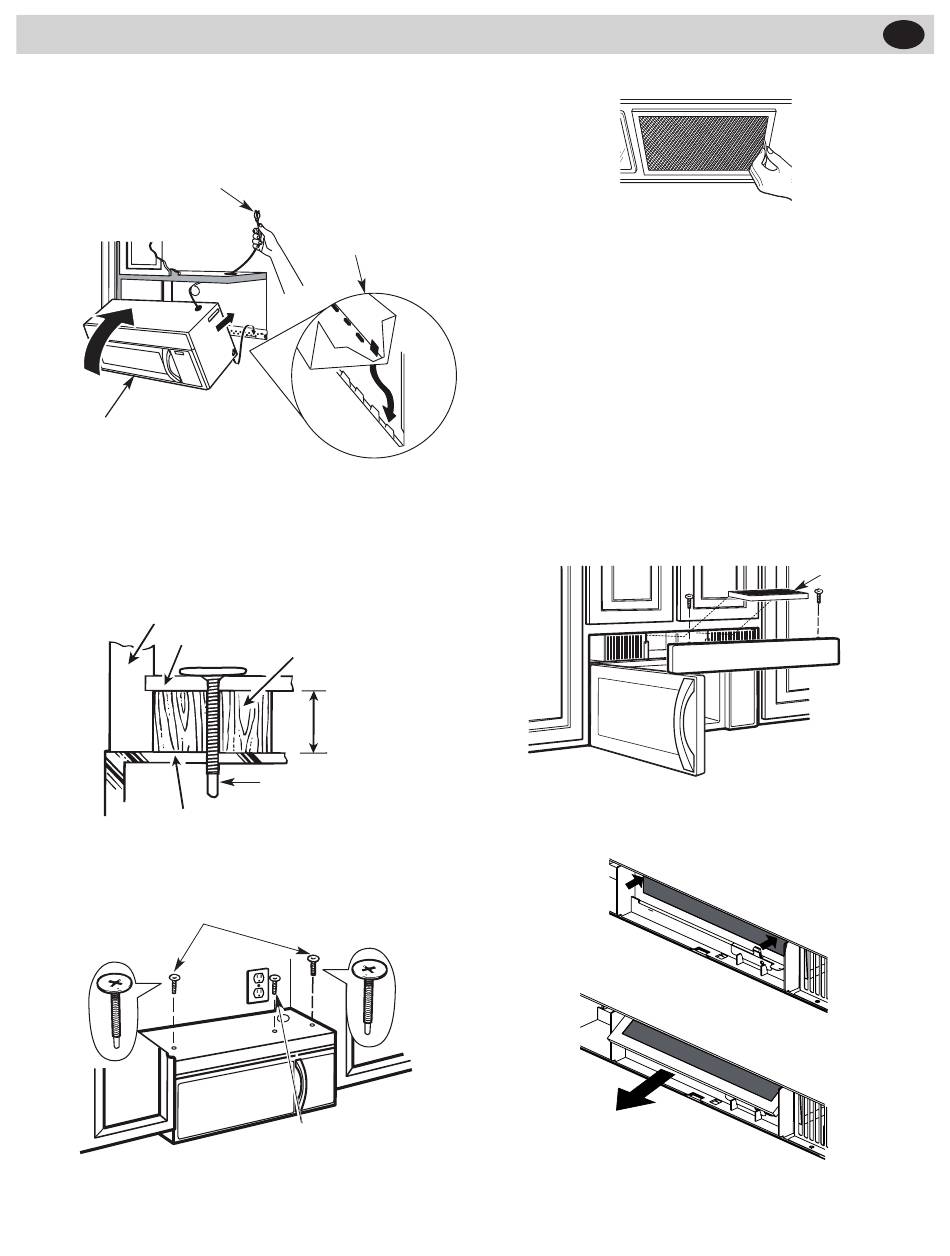

NOTE: When mounting the
microwave oven, thread power
cord through hole in bottom
of top cabinet. Keep it tight
throughout Steps 1–3. Do not
pinch cord or lift oven by pulling
cord.
2. Rotate front of oven
up against cabinet
bottom.
3. Insert a self-aligning screw through top center cabinet
hole. Temporarily secure the oven by turning the screw
at least two full turns after the threads have engaged.
(It will be completely tightened later.) Be sure to keep
power cord tight. Be careful not to pinch the cord,
especially when mounting flush to bottom of
cabinet.
Cabinet Front
Cabinet Bottom Shelf
Microwave Oven Top
4. Attach the microwave oven to the top cabinet.
5. Insert 2 self-aligning screws through
outer top cabinet holes. Turn two full
turns on each screw.
7. Tighten the outer two screws to the top of the micro-
wave oven. (While tightening screws, hold the micro-
wave oven in place against the wall and the top cabi-
net.)
10
1. Lift microwave, tilt it
forward, and hook slots
at back bottom edge
onto four lower tabs of
mounting plate.
Filler Piece
Equivalent
to Depth
of Cabinet
Recess
Self-Aligning Screw
6. Tighten center
screw completely.
8. Install grease filters. See the Advice & Instructions packed
with the microwave.
A5. INSTALLING OR CHANGE THE CHARCOAL FIL-
TER (LAGAN and MEDELNIVÅ)
NOTE: The charcoal filter is factory installed in UPPSEENDE.
Refer to the Advice & Instructions
installed and for replacement information.
For models without the recirculation filter access door, fol-
low these steps to replace or install a charcoal filter.
A5.1 Unplug microwave oven or disconnect power.
Open the microwave door and remove the two
A5.2
vent mounting screws l; ocated on top of the
microwave using a #1 Phillips screwdriver.
Remove the charcoal filter by pushing the top
A5.3
of the filter inwards,then pull it forward out
from the unit.
EN
to see if yours is factory
Charcoal
Filter
