EN

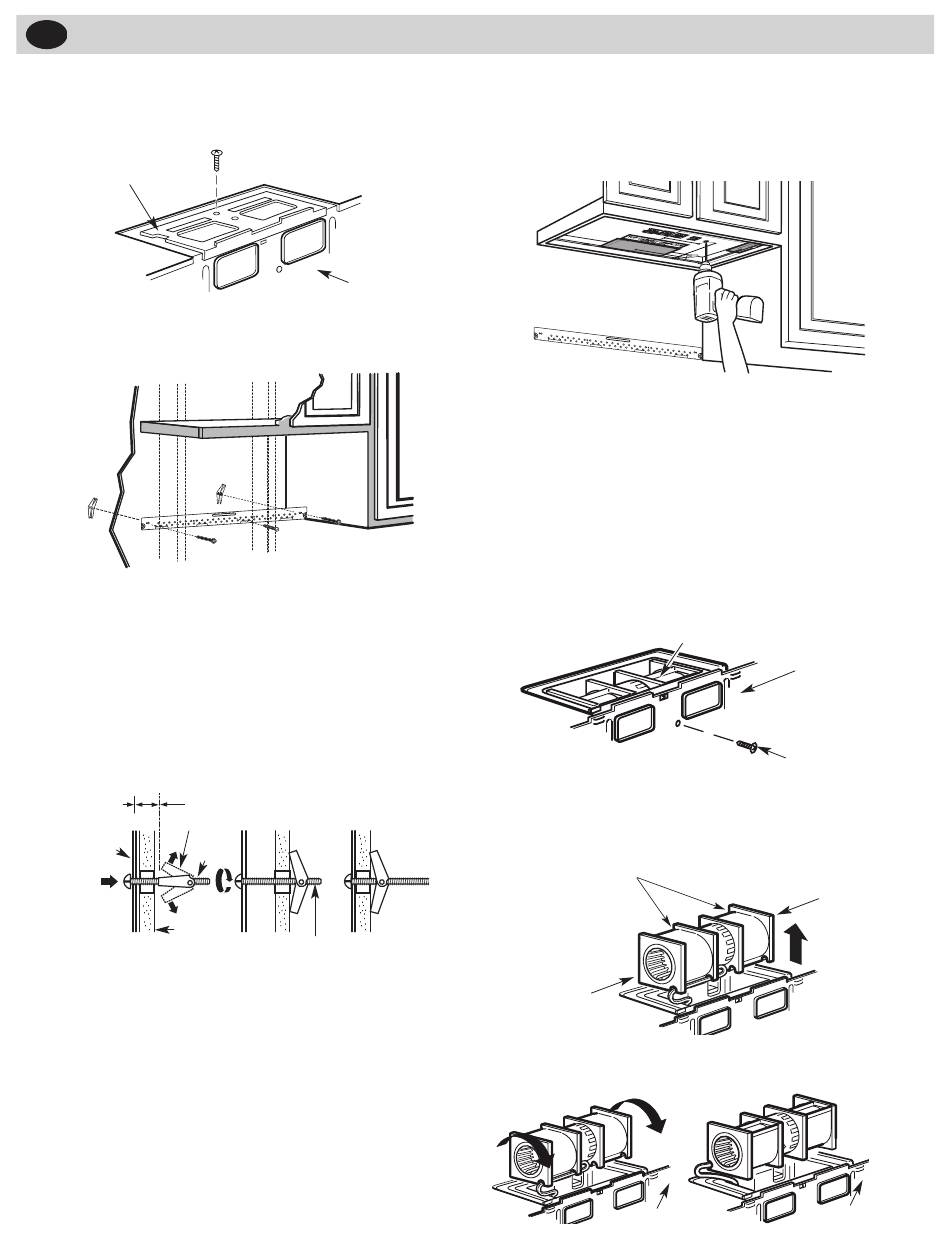

B2. REMOVE BLOWER PLATE
Remove and save the screw that holds the blower plate to
the microwave. Lift off the blower plate.
Blower Plate
B3. ATTACH THE MOUNTING PLATE TO THE
WALL
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to a wall
stud.
1. Remove the toggle wings from the bolts.
2. Insert the bolts into the mounting plate through the
holes designated to go into drywall and reattach the
toggle wings to ⁄ " (19 mm) onto each bolt.
3
4
To use toggle bolts:
Spacing for Toggles
More Than Wall
Thickness
Toggle Wings
Mounting
Toggle
Plate
Bolt
Wall
3. Place the mounting plate against the wall and insert
the toggle wings into the holes in the wall to mount the
plate.
NOTE: Before tightening toggle bolts and wood screw,
make sure the bottom of the mounting plate touch the
bottom of the cabinet when pushed flush against the wall
and that the plate is properly centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers between
the back of the mounting plate and the wall.
4. Tighten all bolts. Pull the plate away from the wall to
help tighten the bolts.
Back of
Microwave
Bolt End
B4. USE TOP CABINET TEMPLATE FOR PREPA-
RATION OF TOP CABINET
You need to drill holes for the top support screws and a
hole large enough for the power cord to fit through.
• Read the instructions on the TOP CABINET TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the TOP
CABINET TEMPLATE.
CAUTION: Wear safety goggles when drilling holes
in the cabinet bottom.
B5. ADAPTING MICROWAVE BLOWER FOR
OUTSIDE BACK EXHAUST
1. Remove and save screw that holds blower motor to
microwave.
Blower Motor
2. Carefully pull out the blower unit. The wires will extend
far enough to allow you to adjust the blower unit.
Blower Motor
Openings Facing
Forward
End A
3. Roll the blower unit 90°
Before Rotation
Back of
Microwave
Back of
Microwave
Blower Motor
Screw
End B
After Rotation
Back of
Microwave
15
