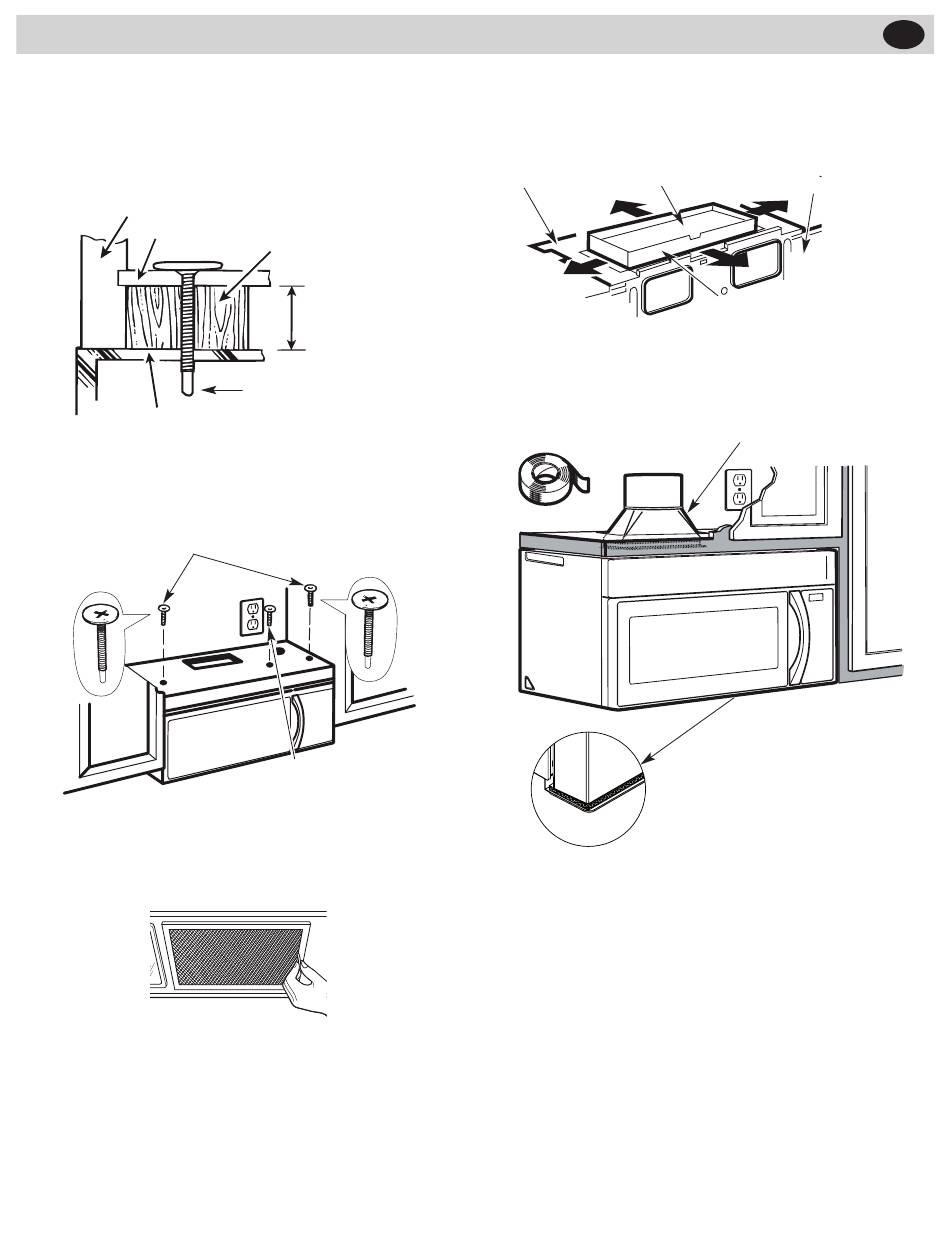

3. Insert a self-aligning screw through top center cabinet
hole. Temporarily secure the oven by turning the screw
at least two full turns after the threads have engaged.
(It will be completely tightened later.) Be sure to keep
power cord tight. Be careful not to pinch the cord,
especially when mounting flush to bottom of cabinet.
Cabinet Front
Cabinet Bottom Shelf
Microwave Oven Top
4. Attach the microwave oven to the top cabinet.
5. Insert 2 self-aligning screws
through outer top cabinet
holes. Turn two full turns on
each screw.
7. Tighten the outer two screws to the top of the micro-
wave oven. (While tightening screws, hold the micro-
wave oven in place against the wall and the top cabi-
net.)
8. Install grease filters. See the
packed with the microwave.
20
Filler Piece
Equivalent
to Depth of
Cabinet
Recess
Self-Aligning Screw
6. Tighten center
screw completely.
Advice & Instructions
C6. ADJUST THE EXHAUST ADAPTOR
Open the top cabinet and adjust the exhaust adaptor to
connect to the house duct.
Blower Plate
Blower Plate
C7. ADJUST THE EXHAUST ADAPTOR
1. Extend the house duct down to connect to the exhaust
adaptor.
2. Seal exhaust duct joints using furnance duct tape for
high temperature applications.
IMPORTANT: Remove the cardboard spacers between
heat shield and door.
Back of
Microwave
For Front-to-Back or
Side-to-Side Adjust-
ment, Slide the Exhaust
Adaptor as Needed
House Duct
