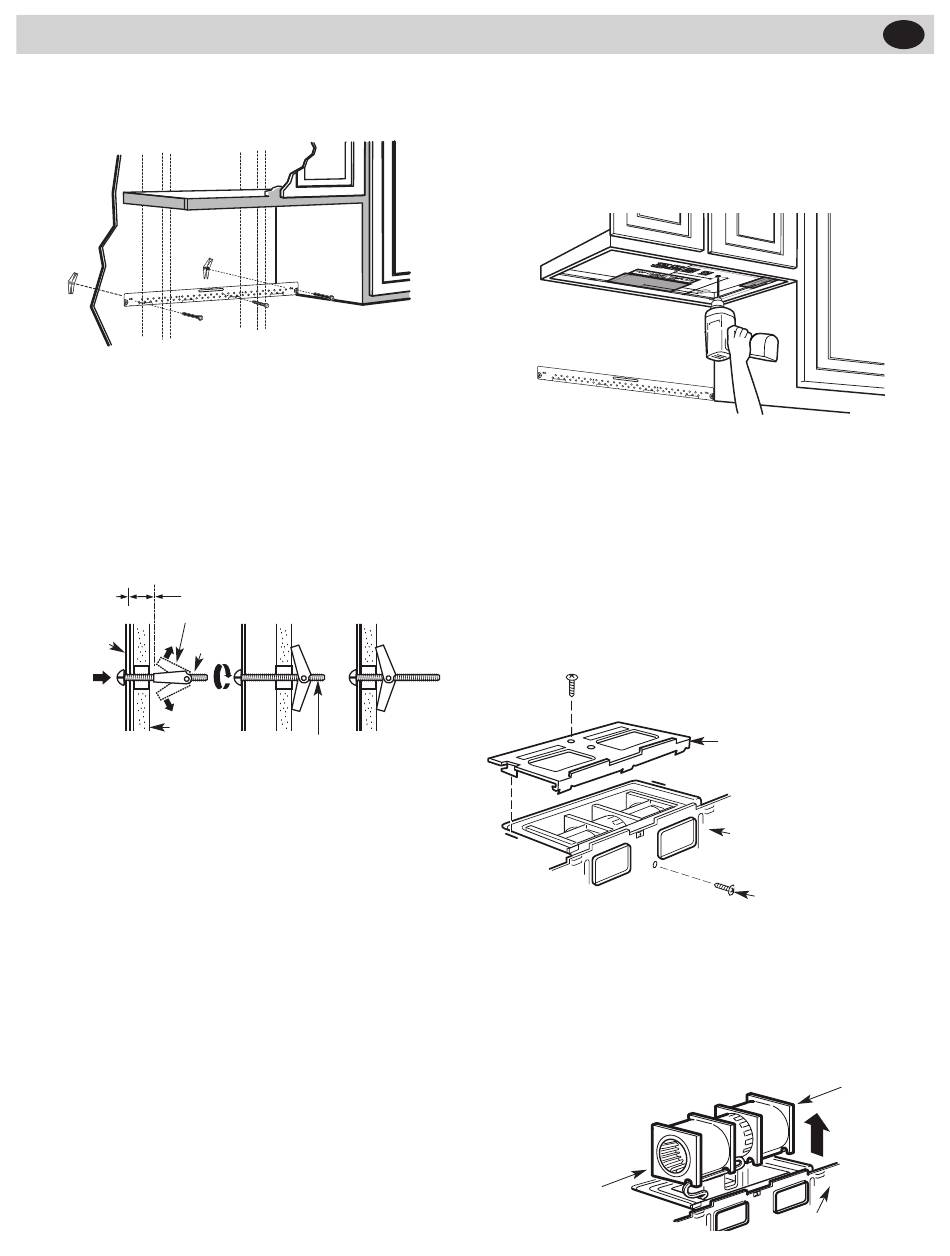

C1. ATTACH THE MOUNTING PLATE TO THE
WALL
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to a wall
stud.
1. Remove the toggle wings from the bolts.
2. Insert the bolts into the mounting plate through the
holes designated to go into drywall and reattach the
toggle wings to ⁄ " (19 mm) onto each bolt.
3
4
To use toggle bolts:
Spacing for Toggles
More Than Wall
Thickness
Toggle Wings
Mounting
Plate
Wall
3. Place the mounting plate against the wall and insert
the toggle wings into the holes in the wall to mount the
plate.
NOTE: Before tightening toggle bolts and wood screw,
make sure the bottom of the mounting plate touch the
bottom of the cabinet when pushed flush against the wall
and that the plate is properly centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers between
the back of the mounting plate and the wall.
4. Tighten all bolts. Pull the plate away from the wall to
help tighten the bolts.
18
Toggle
Bolt
Bolt End
C2. USE TOP CABINET TEMPLATE FOR PREPA-
RATION OF TOP CABINET
You need to drill holes for the top support screws, a hole
large enough for the power cord to fit through, and a cut-
out large enough for the exhaust adaptor.
• Read the instructions on the TOP CABINET TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on th TOP
CABINET TEMPLATE.
CAUTION: Wear safety goggles when drilling holes in the
cabinet bottom.
C3. ADAPTING MICROWAVE BLOWER FOR
OUTSIDE TOP EXHAUST
1. Place the microwave in its upright position, with the top
of the unit facing up.
Remove the screw that holds the blower plate to the mi-
crowave. Remove and save the screw holding the blower
motor to the microwave.
2. Carefully pull out the blower unit. The wires will extend
far enough to allow you to adjust the blower unit.
End Α
EN
Blower Plate
Back of
Microwave
Blower Motor
Screw
End B
Back of
Microwave
