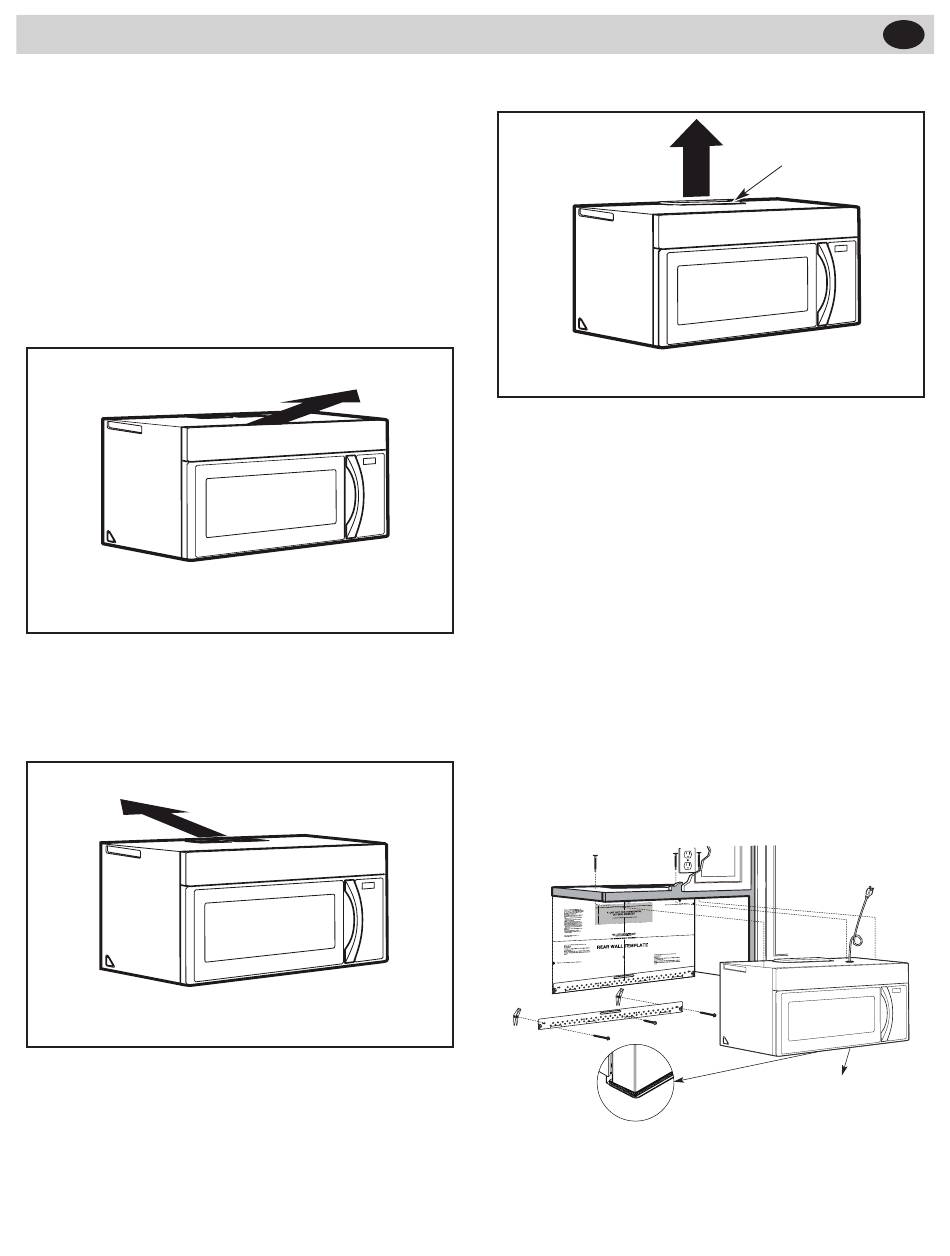

2 INSTALLATION TYPES
This microwave oven is designed for adaptation to the fol-
lowing three types of ventilation:
A. Recirculating (Non-Vented Ductless)
B. Outside Back Exhaust (Horizontal Duct)
C. Outside Top Exhaust (Vertical Duct)
NOTE: This microwave is shipped assembled for Recir-
culating. Select the type of ventilation required for your
installation and proceed to that section.
A. RECIRCULATING (NON-VENTED DUCTLESS)
See page 8
Models are shipped for recirculating exhaust. Some
models have a disposable charcoal filter installed to help
remove smoke and odors.
B. OUTSIDE BACK EXHAUST (HORIZONTAL DUCT)
See page 14
8
(Choose A, B or C)
Adaptor Must Be
Moved to the Back for
Outside Back Exhaust
C. OUTSIDE TOP EXHAUST (VERTICAL DUCT)
See page 17
NOTE: Read the pages 14-20 only if you plan to vent
your exhaust to the outside. If you plan to recirculate the
air back into the room, proceed to page 8.
A. RECIRCULATING (Non-Vented Ductless)
INSTALLATION OVERVIEW
A1. Attach Mounting Plate to Wall
A2. Prepare Top Cabinet
A3. Check Blower Plate
A4. Mount the Microwave Oven
A5. Install or change Charcoal Filter
IMPORTANT NOTES:
• Make sure the screws for the blower motor and
blower plate are securely tightened when they
are reinstalled. This will help to prevent excessive
vibration.
• Make sure the motor wiring has been properly
routed and secured, and that the wires are not
pinched.
Adaptor in Place for
Outside Top Exhaust
IMPORTANT :Do not remove the
cardboard spacers between the heat
shield and door.
EN
