EN

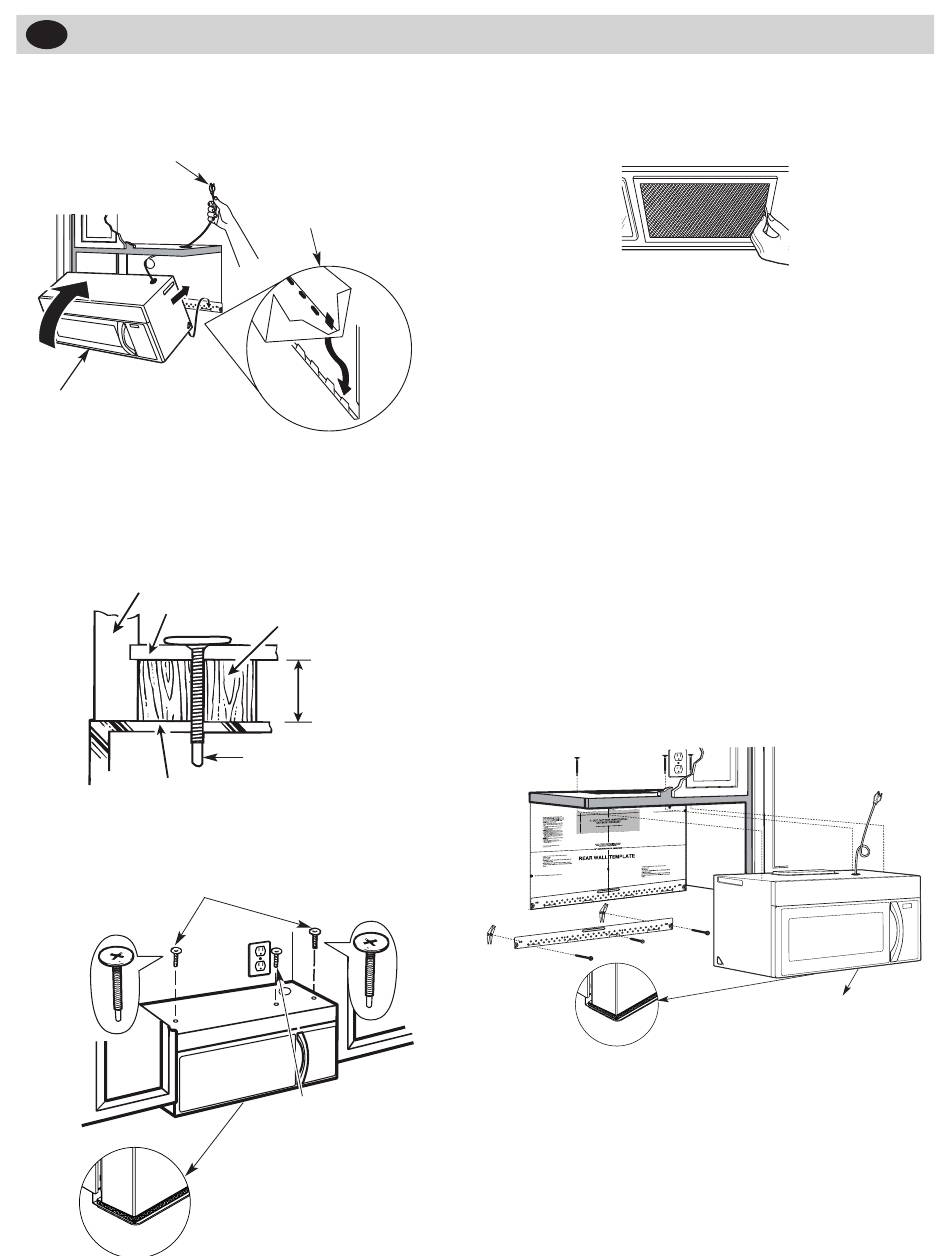

NOTE: When mounting the
microwave oven, thread power
cord through hole in bottom of top
cabinet. Keep it tight throughout
Steps 1-3. Do not pinch cord or
lift oven by pulling cord.
2. Rotate front of oven up
against cabinet bottom.
3. Insert a self-aligning screw through top center cabinet
hole. Temporarily secure the oven by turning the screw
at least two full turns after the threads have engaged.
(It will be completely tightened later.) Be sure to keep
power cord tight. Be careful not to pinch the cord,
especially when mounting flush to bottom of cabi-
net.
Cabinet Front
Cabinet Bottom Shelf
Microwave Oven Top
4. Attach the microwave oven to the top cabinet.
5. Insert 2 self-aligning screws
through outer top cabinet
holes. Turn two full turns on
each screw.
1. Lift microwave, tilt it
forward, and hook slots
at back bottom edge
onto four lower tabs of
mounting plate.
Filler Piece
Equivalent to
Depth of Cab-
inet Recess
Self-Aligning Screw
6. Tighten center
screw completely.
7. Tighten the outer two screws to the top of the micro-
wave oven. (While tightening screws, hold the micro-
wave oven in place against the wall and the top cabi-
net.)
8. Install grease filters. See the
packed with the microwave.
IMPORTANT: Remove the cardboard spacers be-
tween heat shield and door.
C OUTSIDE TOP EXHAUST
INSTALLATION OVERVIEW
C1. Attach Mounting Plate to Wall
C2. Prepare Top Cabinet
C3. Adapting Microwave Blower for Outside Top Exhaust
C4. Check Damper Operation
C5. Mount Microwave Oven
C6. Adjust Exhaust Adaptor
C7. Connect Ductwork
IMPORTANT NOTES:
• Make sure the screws for the blower motor and blower
plate are securely tightened when they are reinstalled.
This will help to prevent excessive vibration.
• Make sure the motor wiring has been properly routed
and secured, and that the wires are not pinched.
Advice & Instructions
(Vertical Duct)
IMPORTANT: Do not remove
the cardboard spacers be-
tween the heat shield and
door.
