Perimeter wire with external docking
station:

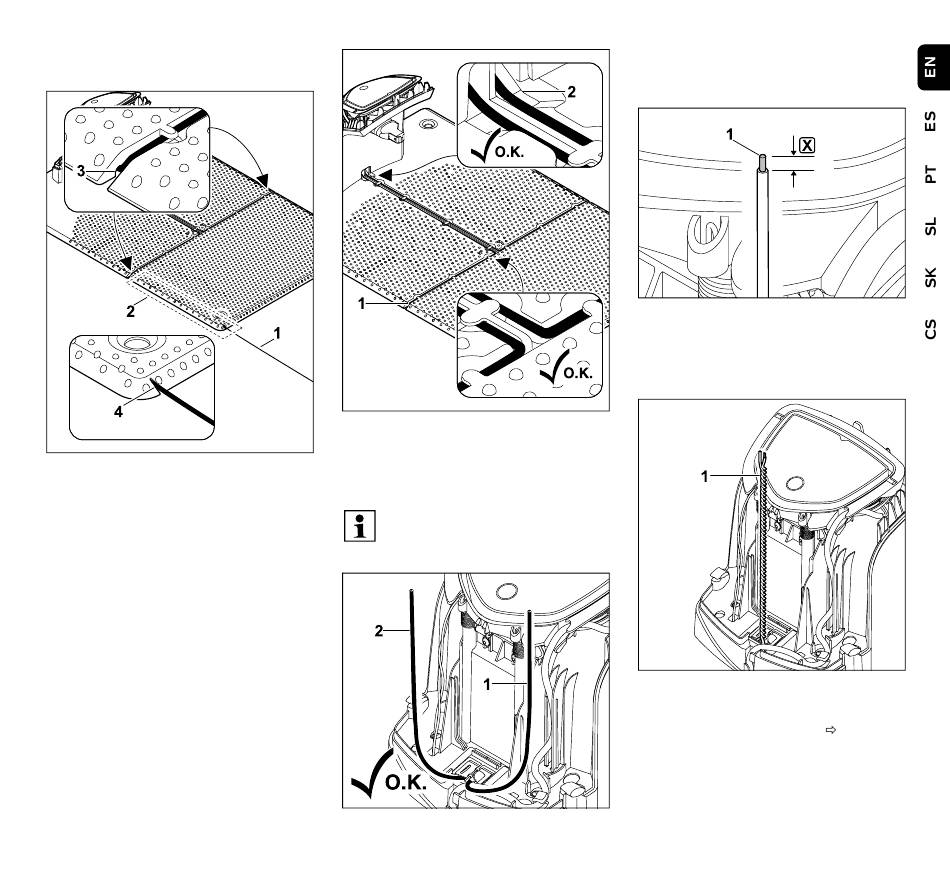

Route the perimeter wire (1) in the area (2)
under the floor plate. To do this, guide the
wire into the wire outlets (3, 4) – loosen the
pegs if necessary.
0478 131 9263 B - EN
Insert the perimeter wire (1) into the cable
guides in the floor plate and guide it
through the socket (2).
Connecting the perimeter wire:
Note:
Make sure that the contacts are
clean (not corroded, dirty, etc).
Shorten the left wire end (1) and right wire
end (2) to the same length. Length from
the wire outlet to the wire end: 40 cm
Strip the left wire end (1) to the specified
length X using a suitable tool and twist the
wire strands.
X = 10-12 mm
Twist the free wire ends (1) together as
illustrated.
● Open the panel and hold. ( 9.2)
