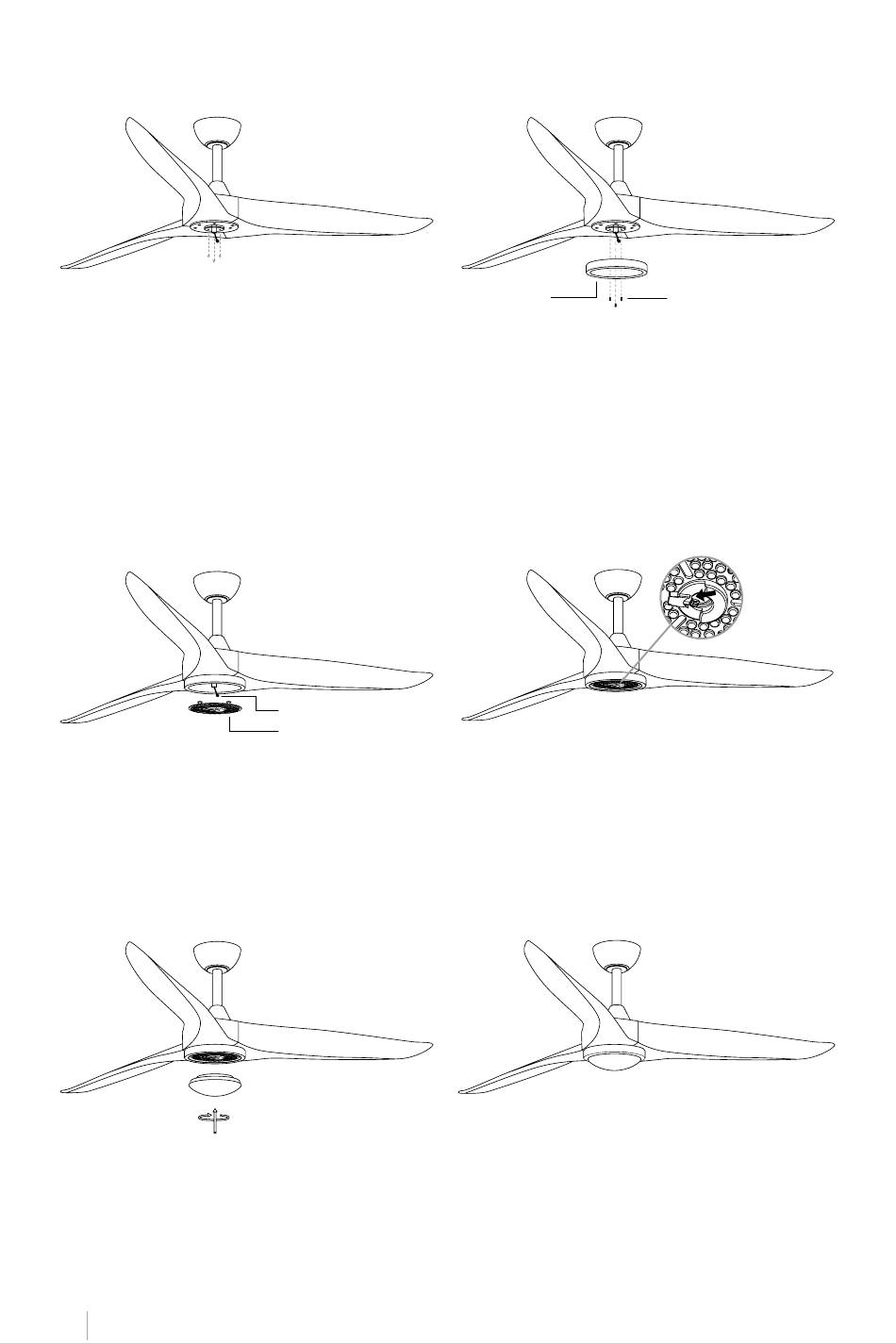

M OU NT I NG TH E PATC H PANE L
* Only for the model WITH LIGHT
• Unscrew the motor fixing screws as shown in the picture. Then fit the connection panel to
the bottom of the fan by inserting the screw heads into the holes provided.
• Finally, screw in the screws and then secure them.
Note: While installing or removing the patch panel, carefully keep the insulation pads in-
tact. Turning the fixing screws too hard or too fast will damage the insulating pads.
M OU NT I NG TH E LE D PANE L
* Only for the model WITH LIGHT
Connect the single pin of the connecting plate to the LED panel, and then attach the LED
panel to the decorative plate through its magnets.
M OU NT I NG TH E D ECO R AT I VE SCRE E N
* Only for the model WITH LIGHT
Once the LED panel is correctly positioned, attach the LED panel decorative screen by
screwing it onto the motor connection panel.
E NGL I SH
14
Patch panel
Single pin
LED Panel
Panel screws
