6. Thread the cables through the bar and pull the excess cables from the top of the bar to
tighten them.
7. Place the bar inside the motor housing and insert the pins you removed earlier. Tighten
the set screws and washers.
8. Lower the canopy towards the motor housing.
TURN ON TH E FAN
• Once the bar is mounted to the fan motor, insert the ball cou-
pling into the mounting bracket installed on the ceiling.

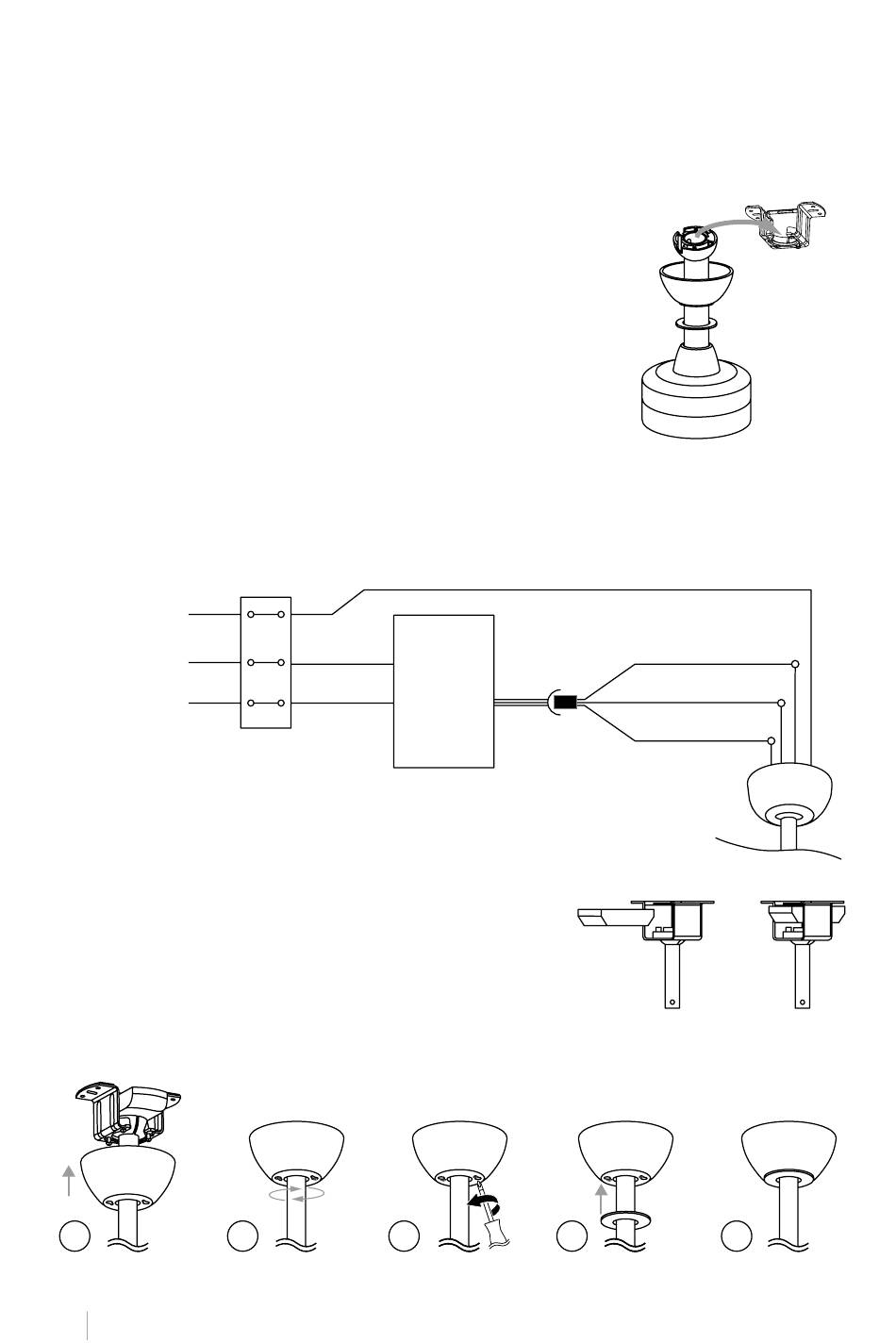

W IRING CON N ECT I ON
Make the connection between the receiver wires and the fan motor wires following the color
indications. Make sure the connection is secure.
Get grounded
L
N
RE MO TE CON TROL CO NNECT I O N
Insert the remote control controller into the mounting
bracket as shown in the picture.
ASSEMBLY OF THE ROSETTE
1
E NGL I SH
12
L input
(black)
Input N
(white)
2 3
Ground (green/yellow)
Remote
control
receiver
at the
distance
4
DC motor L (grey)
DC motor L (pink)
DC motor L (red)
5
