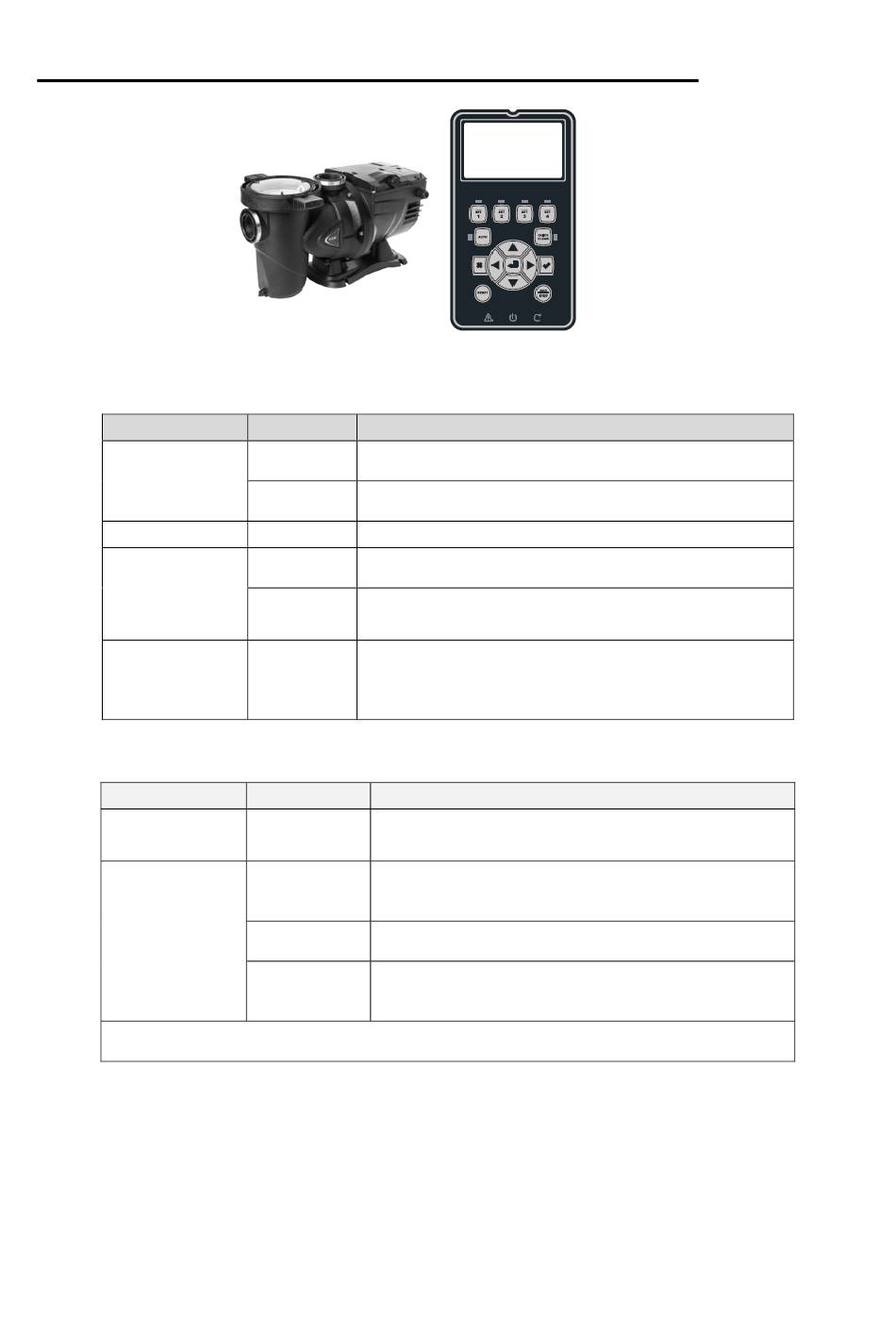

4 CONFIGURATION OF E.SWIM WITH E.ADAPT
The parameters to be configured on E.SWIM to enable contacts are:
1- The following parameters are set in the "External Control/Settings" menu:
Parameter
Config
Origin Speed
Start Input
Speed Mode
2- The following parameters are set in the "External Speeds" menu:
Parameter
Control Mode
X1-X4
Speeds X1-X4 do not have their own associated duration, but are activated and
deactivated according to external input signals
3- Enable "AUTO" mode by pressing the button on the E.SWIM interface (the white LED must be on).
ENGLISH
Value notes
Enable If you want to enable external control by excluding the
programming of the Timers
Override If you want to keep the priority of the external command
without excluding the Timers
E.ADAPT
IN-0 Pump starting is determined by the status of the IN-0
input
Pump starting determined by the status of inputs IN1-4
Speed
of the E.ADAPT module
Priority Each input is associated with a speed (IN1 --> X1; IN2 -
-> X2; etc.);
in the case of more than one enabled input, the one
with the highest number (IN4>IN3>IN2>IN1) has priority
Value notes
FLOW/SPEED Adjustment by flow control ("Flow") or fixed curve
("Speed %") (see section 5.1.1)
5 - 25 m3/h Setting the speed with flow control
(or 20 - 110
GPM)
20% - 100% Setting the speed with fixed curve control (in
percentage %)
STOP Setting of the speed "0" (STOP), useful for the
connection of a possible float or safety switch in
OVERRIDE mode
