DAB E.ADAPT Instrucciones Para La Instalación página 7

3) Determine the appropriate connections between the E.ADAPT digital interface and the pool
control board.
The inputs 7 to 11 of E.ADAPT correspond to the inputs IN0 - IN4 of E.SWIM with which the
start/stop of the pump (IN0) is controlled and the speeds from X1 to X4 can be configured in
value and mode: Constant flow rate or Constant speed.
Terminal 12 of E.ADAPT is the common terminal.
If more than one input is active, the highest input number activated will have priority (11 has
priority over 10 etc.).
4) Connect the connection cable to the E.SWIM pump
ENGLISH
.
E SWIM CABLE
.
E ADAPT
CONNECTOR
1 – RED 6
2 - BROWN 5
3 - BLACK 4
E.SWIM E.ADAPT
IN0 7
IN1 8
IN2 9
IN3 10
IN4 11

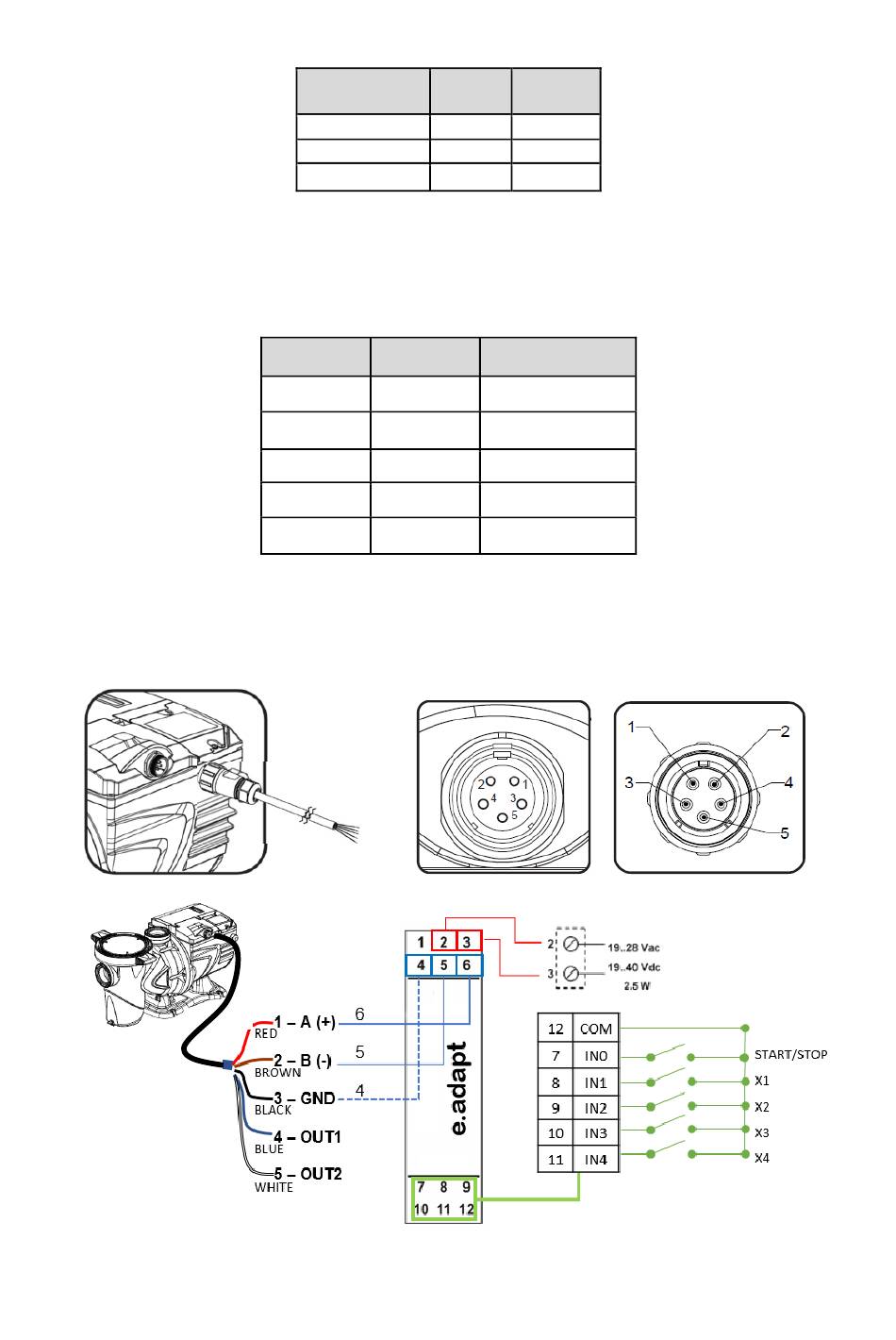

Summary diagram of the connection
5
DESCR
A (+)
B (-)
COM
DESCR
START/STOP
X1
X2
X3
X4
