CONTENTS
1 Introduction ............................................................................................................................................... 4
2 Technical Specifications .......................................................................................................................... 4
3 Installation ................................................................................................................................................. 4
4 Configuration of E.SWIM with E.ADAPT ................................................................................................. 6
1 INTRODUCTION
E.ADAPT is the module with 5 digital inputs / RS485, which allows you to control E.SWIM, the variable speed pump
for swimming pool filtration, via remote digital contacts.
The 5 digital inputs of the module allow you to control up to 4 speeds by associating each input with a speed that can
be set directly on the pump through its display interface.
2 TECHNICAL SPECIFICATIONS

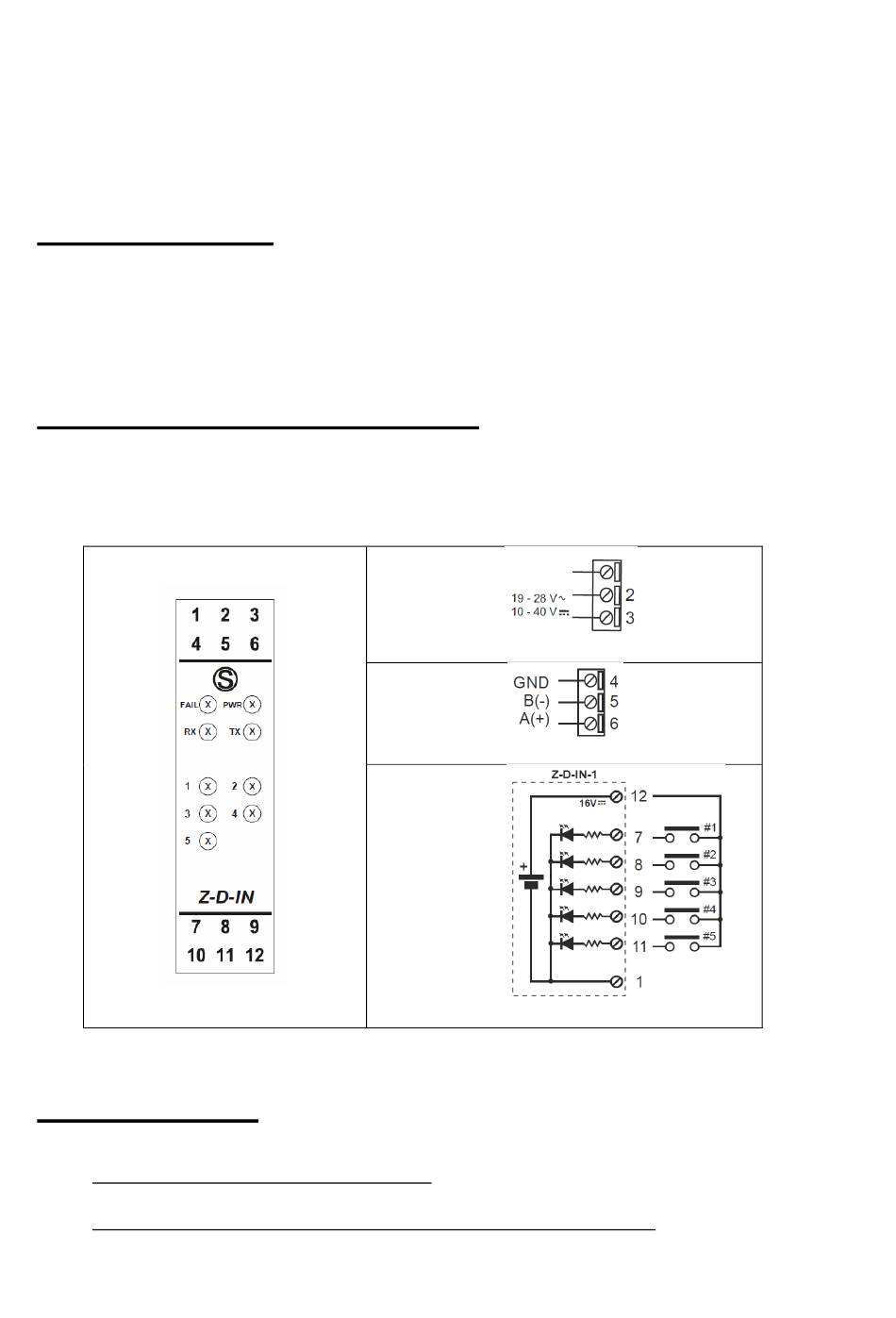

Connections:
5 digital inputs with common negative, self-powered 16 VDC.
‐
RS485 serial communication with Modbus-Rtu protocol
‐
Power supply: 10 – 40 VDC; 19 - 28 VAC 50 – 60 Hz
‐
3 INSTALLATION
1) Connect the adapter to the power supply (10 - 40 VDC; 19 - 28 VAC), taking it directly from the
swimming pool automatic control board or from a separate power supply (not supplied).
2) Connect the E.ADAPT adapter to the E.SWIM variable speed pump via the RS485 serial port
using the communication cable available in the kit:
ENGLISH
POWER SUPPLY:
MODBUS RS485:
DIGITAL INPUTS:
4
