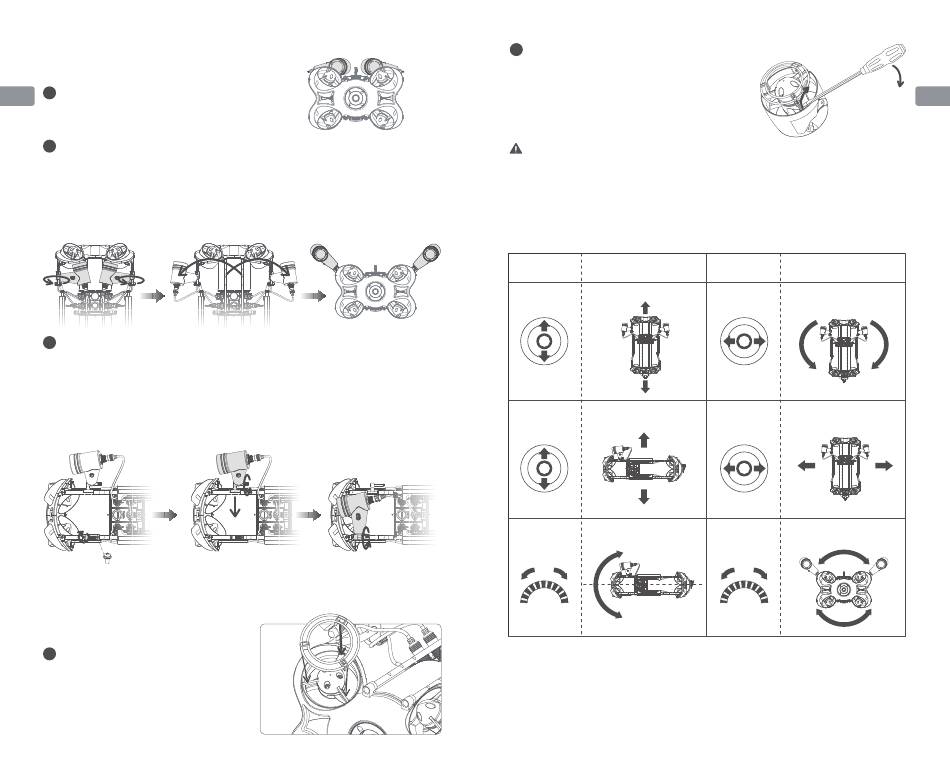

Floodlight
Storage status: above the ROV
1
EN
control cabin
2 Working state (commonly used): It is located obliquely above the
outside of the ROV hanging ring.
Turn the adjustment knob of the floodlight 3-5 turns counterclockwise to make the
angle of the floodlight adjustable. When the positioning concave and convex grooves of
the floodlight are engaged with each other, tighten the adjustment knob of the
floodlight clockwise to realize the storage or expansion of the floodlight.
Working state (standby): on both sides of the ROV
3
Fix the mounting support of the left/right floodlight (spare parts) on the pull rod below
both sides of the ROV respectively with M3 × 8 combination screws. Unscrew the upper
adjustment knob of the left/right floodlight, and remove the floodlight, M5 small flat
washer, and spring washer. Successively install M5 small flat washer, spring washer, and
floodlight on the spare parts of the mounting support of the floodlight that was installed
below. Then tighten the adjustment knob.
M3X8 Combination screw
Thruster shield
1 Thruster shield installation
Match the three snap structures on the shield
of the thruster to the conduit bracket structure
of the thruster one by one. Press down the
thruster shield slightly. When a clicking sound
is heard, the shield is assembled in place.
11
1 Thruster shield removal
Gently lift the thruster shield up along the edge of
the snap of the shield with a tool such as a
screwdriver to separate the snap of the shield
from the conduit bracket one by one. Then you
can take the shield off from the thruster.
Note: The installation of the thruster shield may affect the ROV speed.
Navigation
M2 PRO has 8 Vectored Thrusters layout which allows OMNI movement (up, down, left
and right, back and forth, pitch, roll, and pan) in all directions.The default is basic control
mode, suitable for beginners. Navigation attitude and remote control are as follows:
Remote Rov
(Flight Direction)
Controller
Forward/backward
Left Joystick
Right Rocker Up / Down
Scroll the Turn the Dial To Adjust
Left Wheel the Pitch Attitude
 You can switch the mode by pressing and holding the "One-key Reset" key of the
remote controller.
 The wave wheel can be used for rolling and pitching. After you release the wave wheel,
the ROV will automatically maintain the current angle.
 Basic mode: The maximum angle of pitch and roll is about 80 degrees.
 Advanced mode: The ROV can realize 360° omni-directional and full degree of freedom
motion (The advanced mode is based on the first-person view).
Remote Rov
(Flight Direction)
Controller
Turn Left / Right
Left Joystick
Right Rocker Pan Left and Right
Scroll the Turn the Dial to Adjust The Roll
Right Wheel
Attitude, Release to Fix Status
