Remote control indicators introduction
Battery: The battery indicator light has three color states:
Red light: The red light flashes when the battery level is between 0% and 10%.
EN
Red: The red light is normally on when the battery level is between 10%-30%.
Blue: The blue light is normally on when the battery level is between 30% & 70%.
Green: The green light is normally on when the battery level is between 70% & 100%.
2.4G:Wi-Fi indicator light, normally on when the 2.4G frequency band is working.
5G:Wi-Fi indicator light, normally on when the 5G frequency band is working.
ROV： Indicates the communication status between the controller and the ROV (Steady
light indicates successful connection, Blinking light indicates disconnection.)
Gesture back Button：
The blue light is always on when the ROV is in a non-horizontal position.
Unlock Button：
Locking: No lights ； Unlocking: Blue light on.
Led Control Button：
Bright light： Blue light always on; Low light: Blue light flash; No light: Blue light off.

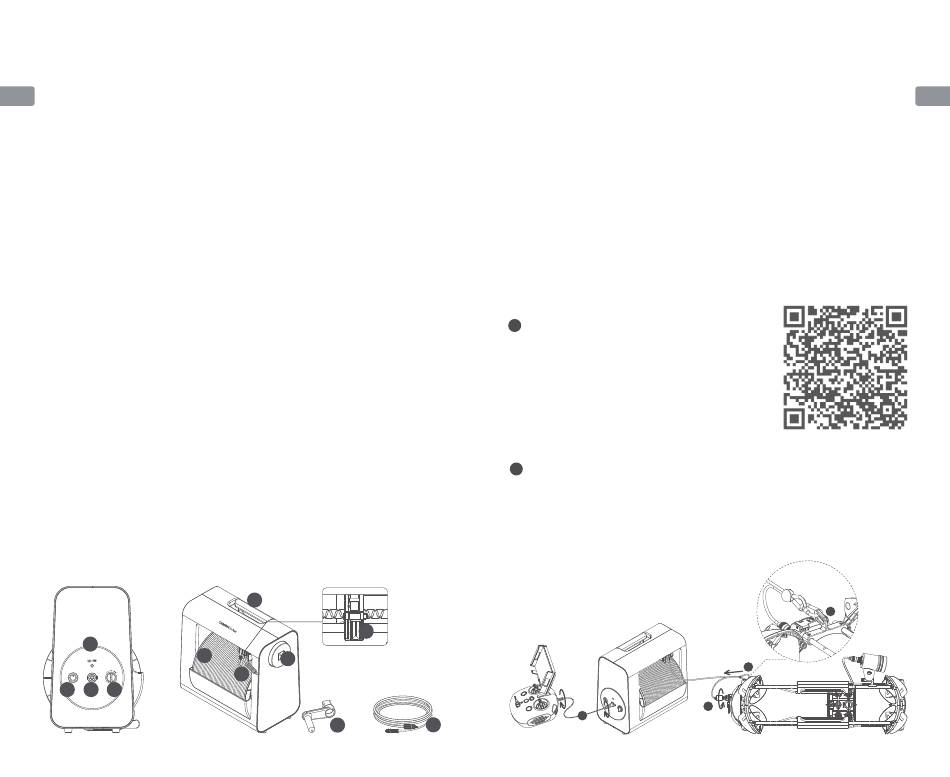

CHASING E-Reel
The E-Reel has 14 specialized stainless steel bearings, which adopts high precision
aluminum alloy synchronous belt to drive and high quality stainless steel reciprocating
lead-screw line anti-blast technology. Up to 200 meters of tether. E-Reel offers 4800mAh
large capacity battery, which is up to 30 retracting cycles. E-Reel also supports manual
rocker retracting to discharge line, and allows single person operation and
quick-deployment. Let you get rid of the trouble of manual winding and enjoy the
underwater exploration.
4
1 2 3
05
7
9
10
5
11
6
1. Power switch
2. 3 meters tether/ charging socket
3. Speed knob： stop/slow/fast
4. Power indicator： Green 100%-60%； Blue 59%-20%； Red 19%-0%；
The indicator flashes when the motor is running
5. Handle interface
6. Handle
7. Lifting handle
8. 3 meters tether： Used for connecting the remote controller and the E-Reel
9. straightene
10. Tether
11. Tether connecting plugr
Installation & Connection
1
Download CHASING GO1 App
CHASING GO1 App：
Scan the following QR code or visit the IOS APP
Store/Google Play/Chasing website for downloading.
(For IOS 9.0 or later/Android version 4.4 or later）
Connect ROV, remote controller, and CHASING E-Reel.
2
1. Connect the 3-meter connection cable to the CHASING E-Reel and the handle
respectively, and lock the nuts ①.
2. Install the tether hanging buckle at the installation position ②.
3. Connect the tether connecting plug to the ROV ③ and tighten the nuts.
1
8
2
2
