ROV
CHASING M2 PRO MAX is an industrial-grade underwater remote operated vehicle (ROV)
EN
designed for government and enterprise users. It is equipped with eight vectored
thrusters, allowing 360-degree omnidirectional movements. The ROV can navigate at a
maximum speed of 3 knots, dive to 200 meters deepwater, and move around a maximum
horizontal radius of 400 meters.CHASING M2 PRO MAX adopts the quick assembly and
disassembly technology, enabling tool-free quick assembly and disassembly of more
than 20 accessories such as sonars, CHASING USBL KIT, and CHASING Water Sampler. In
addition, CHASING M2 PRO MAX has an integration of five ports, which simplifies the
installation of multiple accessories. Up to five accessories can be mounted at a time. The
ROV is powered by the second-generation anti-stuck motor C-MOTOR 2.0, which has 30%
more power for a better anti-stuck capability. The second-generation shore-based power
supply system (C-SPSS) is an optional accessory. It adopts the battery compartment
design, with 1500W upgraded output power, ensuring M2 PRO MAX constantly works at
full power without an outage. The external 8000-lumen floodlights can achieve the best
beam angle at 150°, which resolves the reflection of floating debris and clearly illuminates
every detail.
3
8
4
5
2

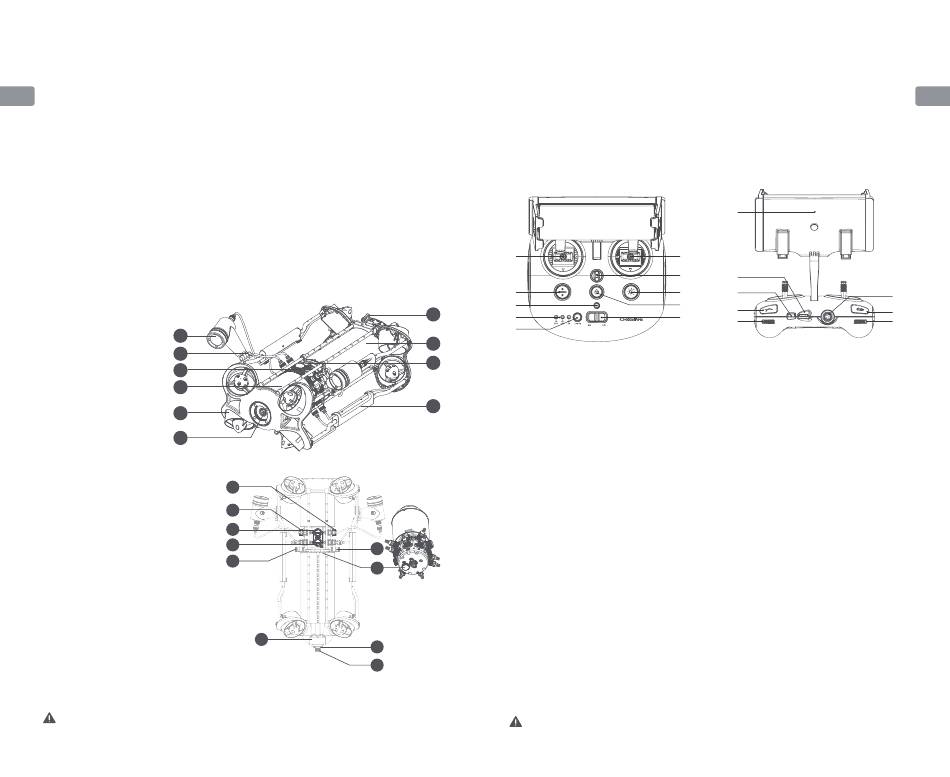

1. Camera
1
2. Thruster/ Propeller
3. LED lights
4. micro SD slot
5. Main Cabin
6. Battery Cabin
7. Buckle bracket
8. Adjustment knob of the floodlight
9. Hanging ring
10. Peripheral socket
(Ethernet port 1 and Ethernet port 2
for network connection)
11. Peripheral socket
(Serial ports for UART1, 2, and 3)
12. Battery twistlock knob
13. Sensor
14. Battery pull ring
（For battery disassembling）
15. Tether socket / Charging socket
16. Battery fastener
① UART1/2： 3V3TTL;+15V,30W
③ Ethernet1/2： 10/100Mbps,+16V,40W
03
11
11
11
10
12
12
13
· bottom view
16
14
15
② UART3： 3V3TTL;+18V~+25.2V,50W
Remote controller
The Chasing M2 PRO MAX remote controller had integrated communication and control.
It connects directly to the drone via the included tether and connects wirelessly to your
mobile phone/tablet via Wi-Fi. And your mobile phone/tablet also can be directly
connected to the remote control through the Type-C cable. It allows the drone to display
a live video feed on your phone/tablet, which enables users to control the drone in
real-time. The remote controller 's HDMI output can also be used to display a live video
feed to a larger screen.
9
5
2
7
4
3
6
10
1. Power switch: Turns controller on/off
2. Power Indicator: Green (High power), Blue
9
(Medium power), Red (Low power)
3. Wi-Fi switch button: Short press to switch
5Ghz/2.4Ghz Wi-Fi
4. Signal Indicator:
2.4G : 2.4Ghz Wi-Fi indicator, always on
when working
5G: 5Ghz Wi-Fi indicator, always on when
working
ROV(drone): Indicates the communication
status between the controller and the
drone (Steady light indicates successful
connection; Blinking light indicates
disconnection.)
5. One-key reset: Short press to reposition
the ROV return to a horizontal state/
Long press to switch control mode
6. Unlock: Unlock/Lock，current state of
the Thruster will show on the App
7. Led Control: On/off led light (0%50%100%)
8. Safety Buckle: Can be used with a safety rope
9. Control Sticks: Used to control the
naviga-tion of the ROV
Damage caused by immersion in liquid is not covered by the warranty. To avoid damage,
do not put the remote controller in the water.
17
9
8
15
7 14
6
10
1
12
10.Robotic Arm Control: Press and hold to
enable/disable the grabber claw function;
press to change the floodlight brightness
level
11. Photo/Video: Short press to take
photos, long press to start / end
recording video
12. Right Angel Adjustment: Adjust the roll
angle or control the opening and
closing of the grabber claw
13. Left Angel Adjustment: Adjust the pitch
angle
14. Type-c Port: Direct connection with
mobile phone/tablet device
15. HDMI Socket: 1080P HD image
real-time output
16. Tether Connection Socket/Charging
socket
17. Phone/Tablet Clamp: Used to attach
phone/tablet mount to mounting
bracket
18. Clamp Button: Pull apart the two ends
and put in the phone/tablet, then
press this button to tighten
EN
16
11
13
