Product overview

3
2

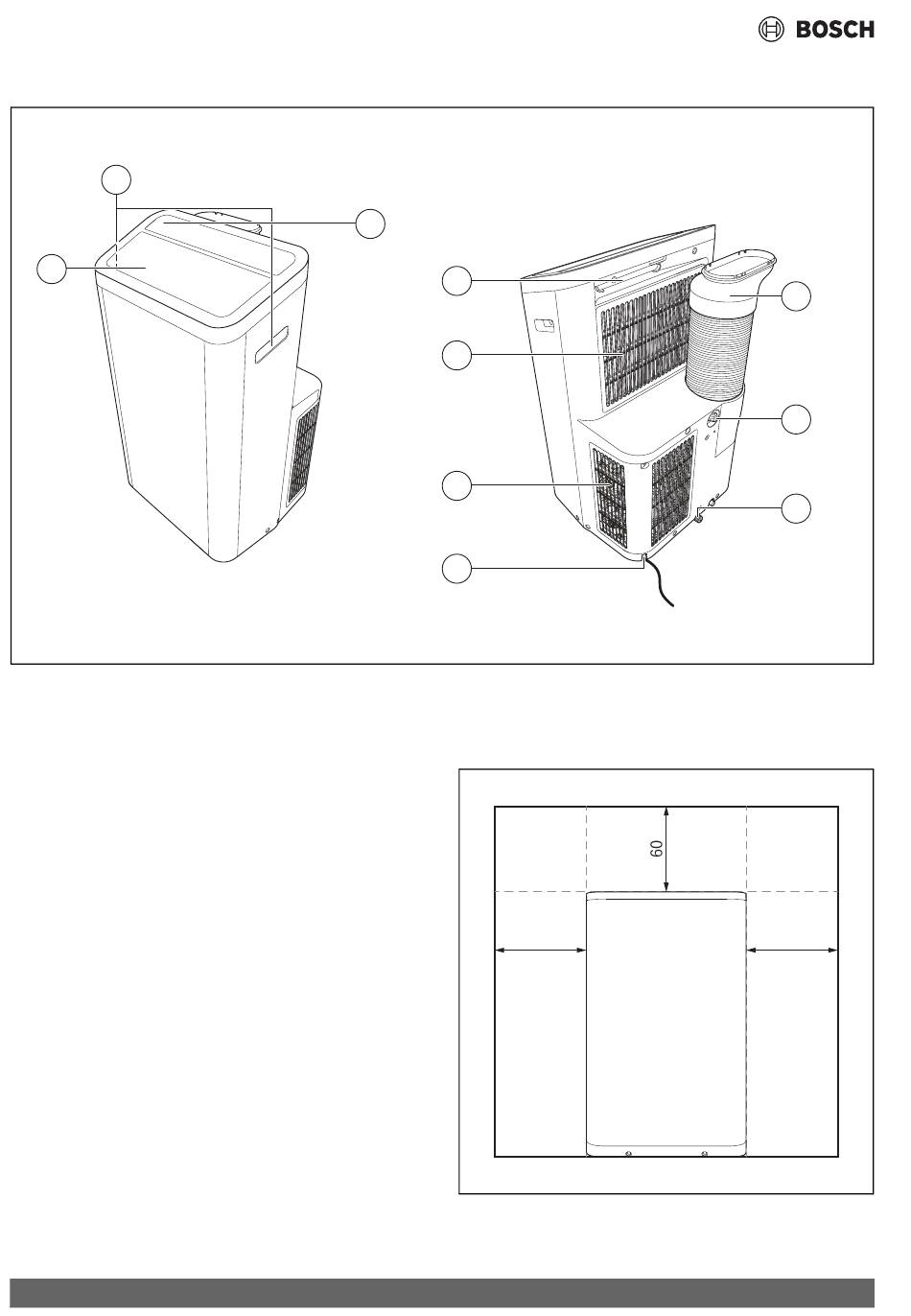

Fig. 2 Product overview
[1] Control panel
[2] Air outlet flap
[3] Handles
[4] Upper air intake grille and upper air filter (integrated)
[5] Upper drain outlet
[6] Lower air intake grille and lower air filter (behind the
grille)
[7] Lower drain outlet

[8] Power cord

[9] Exhaust hose
[10] Remote control holder
80
1
10
4
6
8
Clearances
The clearance distance on all sides must be at least 60 cm.
60
Fig. 3
60
