INSTALLATION OF SHUT-OFF VALVE
BOX
WARNING
Install the unit in a location that can support the weight of the unit .
Insufficient durability may cause the unit to fall, which may result in injury.
CAUTION
• Carry out the installation work by following the prescribed procedure to make provision against the shaking of
the unit caused by strong winds, earthquakes, etc.
• Failure to carry out the installation work as prescribed may lead to the unit tipping over, in turn causing an
accident.
• To move the unit, don't hold by the refrigerant pipe only .
Do not lift by the pipes
• Do not install the unit in any direction other than that specified.
This may cause a malfunction.
Installation direction
Upper side
EN-13
7

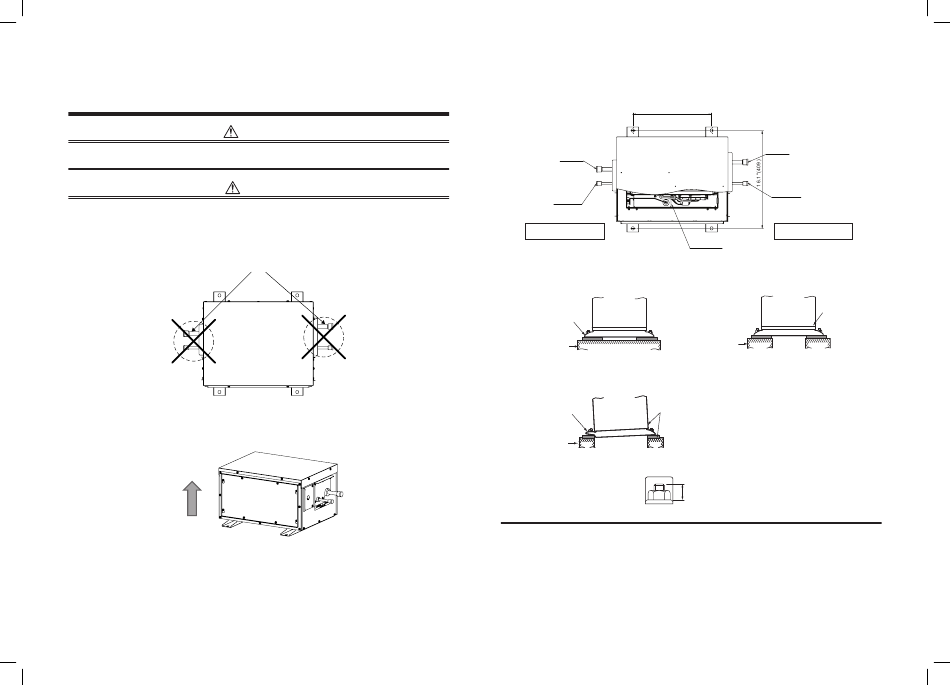

• Be sure to check the strength and levelness of the foundation before installation.
• According to the following base diagram, fix the base firmly with the anchor bolts.
(Anchor bolt, nut: M10 x 4 pairs)
Gas pipe
Liquid pipe
Refrigerant pipe connection
port outdoor unit side
• When installing the foundation, make sure it is supported up to the bottom of the unit as shown in the figure
below.
Correct
Fixing leg
Foundation
Incorrect
If only the end of the
fixing leg is supported,
it may deform.
Foundation
Set the out margin of the anchor bolt to 0.6" (15 mm) or less.
13"(330)
Gas pipe
Liquid pipe
Refrigerant pipe connection
port indoor unit side
Control Box
Correct
Bottom plate
of the unit
Foundation
Support the bottom surface of the
fixing leg that is in contact with and
underneath the bottom plate of the unit.
Do not support the unit
only with the fixing leg.
0.6" (15 mm) or less
EN-14
