No. Button
[1] Power button
(On/Stand-
by)
[2] Temperature
ºC/F
scale button
[3] Timer button
[4] Sleep mode
button
[5] Silent mode
button
[6] Fan speed
selection
button
[7] Mode
selection
button
[8] Down/
Decrease
button
[9] Swing button Turn on/off the air outlet flap
[10] Up/Increase
button
[11] Auto mode
button
Table 5 Button names and functions
Cool 2000 – 6721858239 (2023/04)
Function
Switch on/off the appliance
Change the temperature scale
on the remote control and the
control panel (Celsius or
Fahrenheit)
Adjust the timer (programmed
time)
Turn on the sleep mode
Turn on the silent mode
Adjust the fan speed setting
Set operating mode (air
conditioning,
dehumidification, fan)
Adjust the temperature setting
or timer (programmed time)
downwards
swing function. The flap will
swing up and down.
Adjust the temperature setting
or timer (programmed time)
upwards
Turn on the auto mode
5.2.4 Icons on the display screen and their display
function
2
1
8

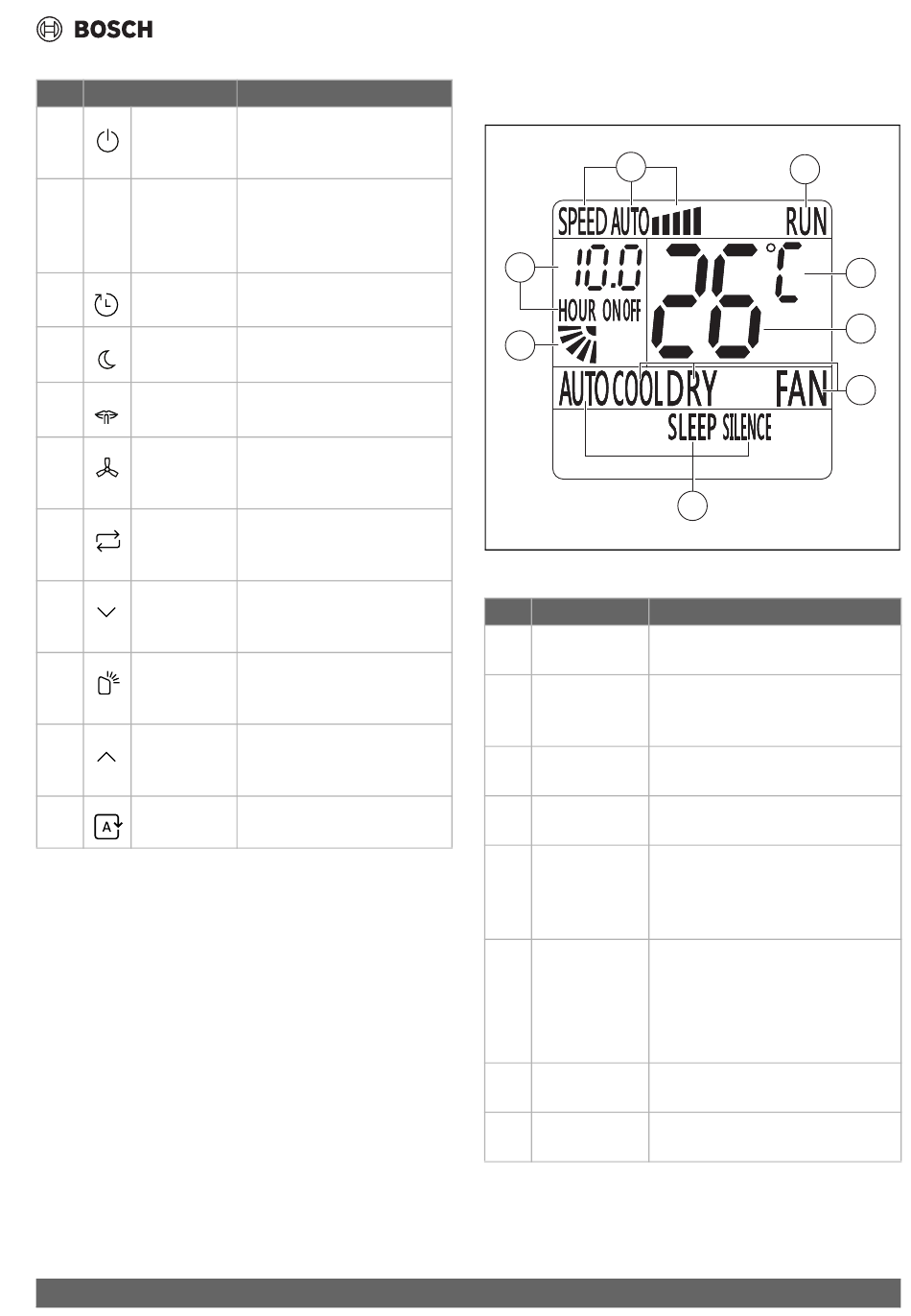

Fig. 18 Display screen of the remote controller
No. Name Display function
[1] Timer Displays the selected timer setting
and if the timer is on/off
[2] Fan speed Displays the current fan speed
(SPEED + AUTO or I (low) or III
(medium) or IIIII (high)
[3] Operation Indicates that the appliance is
running
[4] Temperature Displays the selected temperature
scale scale
[5] Temperature Displays the current temperature
display setting (in Air conditioning modes)
or the room temperature (in
Dehumidification and Fan mode).
[6] Operating mode Displays the current operating
mode:
•
•
•
[7] Smart select Displays the smart cool select modes
modes (AUTO, SLEEP, SILENT)
[8] Swing function Indicates that the swing function is
active
Table 6 Icons and their display function
Operation
3
7
0010047572-001
COOL (Air conditioning mode)
DRY (Dehumidification mode)
FAN
4
5
6
