5. Align the hole in the spindle with the spindle lock button, press the spindle lock button, turn
the collet nut clockwise using the included wrench to secure the bit firmly (Fig. 4a).
6. Release the spindle lock button.
7. Install the fixed base following above section "To install the fixed base".
INSTALLING AND REMOVING
THE EDGE GUIDE ASSEMBLY
(Fig. 5a & 5b)
The edge guide assembly can be used as an
aid in routing applications such as decorative
edging, straight-edge planing and trimming,
grooving, dadoing, and slotting.
To install the edge guide assembly
1. Press the "O" (off) side of the on/off switch
down. Remove the battery.
2. Turn the locking knob of the edge guide
assembly counterclockwise until the edge of
the bolt is flush with the outer surface of the
hook (Fig. 5b).
NOTE: If the locking knob is accidentally
completely unscrewed from the edge guide,
reassemble the parts in the order shown in
Fig. 5b.
3. Insert the "hook" of the edge guide assembly
into the edge guide mounting slot.
4. Turn the locking knob clockwise to secure
the edge guide assembly to the fixed base.
To remove the edge guide assembly
1. Press the "O" (off) side of the on/off switch
down. Remove the battery.
2. Loosen the locking knob of the edge guide
assembly counterclockwise.
3. Remove the edge guide assembly from the
mounting slot on the fixed base.
14

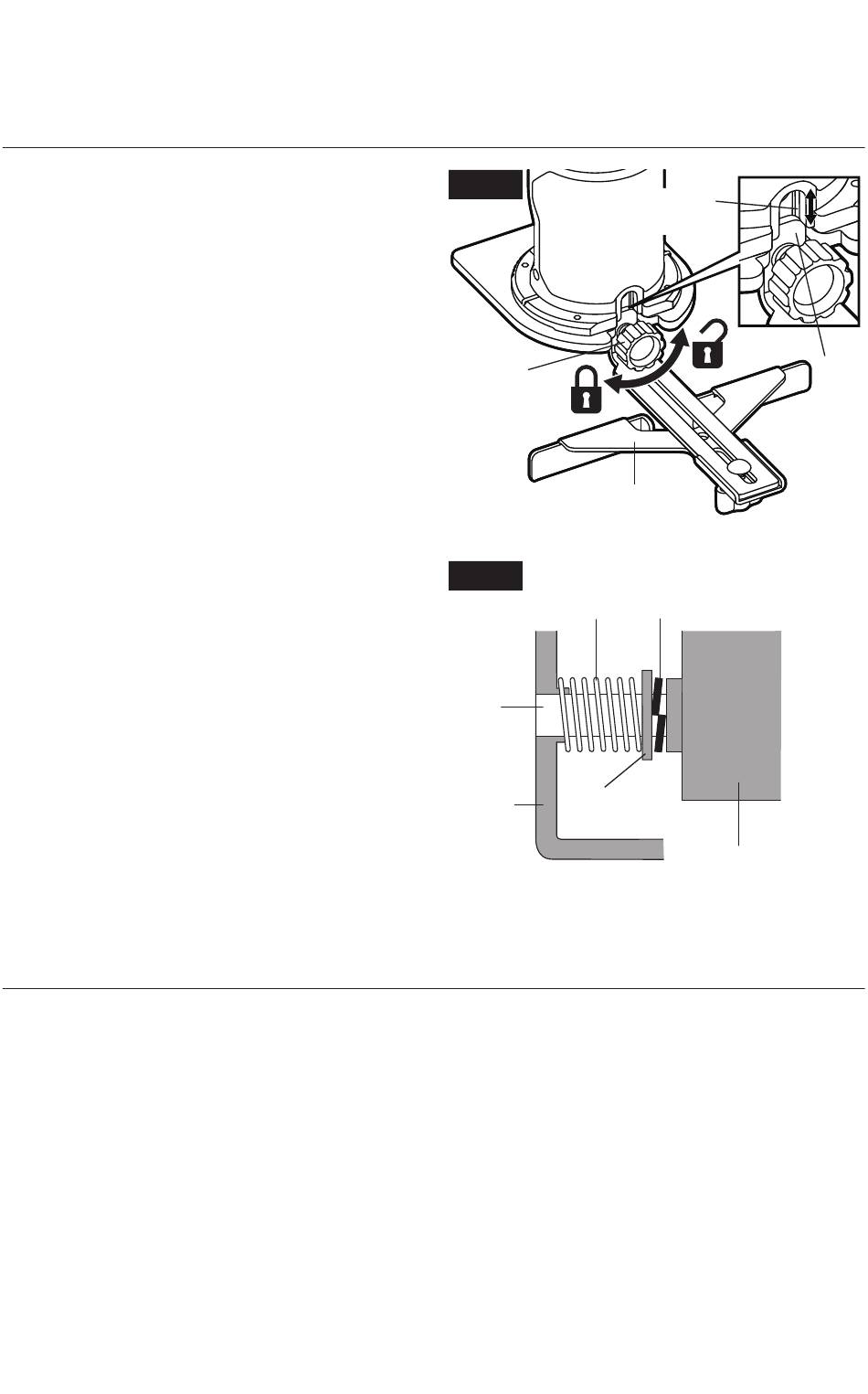

Fig . 5a
Edge Guide
Mounting Slot
Locking
knob
Edge Guide
Assembly
Fig . 5b
Spring Lock Washer
Bolt
Flat Washer
Hook
Hook
Locking Knob
