ASSEMBLY
WARNING
measures reduce the risk of starting the tool accidentally.
WARNING
is misuse and could result in a hazardous condition leading to possible serious injury.
Attaching/Detaching Battery Pack
(Fig. 2)
WARNING
position before attaching or detaching the
battery pack . Such preventive safety measures
reduce the risk of starting the tool accidentally.
To attach the battery pack:
Align the raised rib on the battery pack with the
grooves in the tool, and then slide the battery
pack onto the tool.
When placing the battery pack
NOTICE
onto the tool, be sure that the
raised rib on the battery pack aligns with the
groove inside the tool and that the latches snap into place properly. Improper attachment of the
battery pack can cause damage to internal components.
To detach the battery pack:
Depress the battery-release button located on the front of the battery pack, to release the
battery pack. Pull the battery pack out and remove it from the tool.
INSTALLING AND REMOVING
THE FIXED BASE (Fig. 3a & 3b)
To remove the fixed base:
1. Press the "O" (off) side of the on/off switch
down. Detach the battery pack.
2. Place the tool upside down.
3. Open the base lock lever on the fixed base
(Fig. 3a).
4. Depress the depth quick-adjustment button
and pull the fixed base from the router motor
(Fig. 3b).
12
Detach the battery pack from the tool before performing any assembly
or adjustments, or changing accessories . Such preventive safety
Do not attempt to modify this tool or create accessories not
recommended for use with this tool . Any such alteration or modification
Make sure the on/off
switch is in the "O" (off)

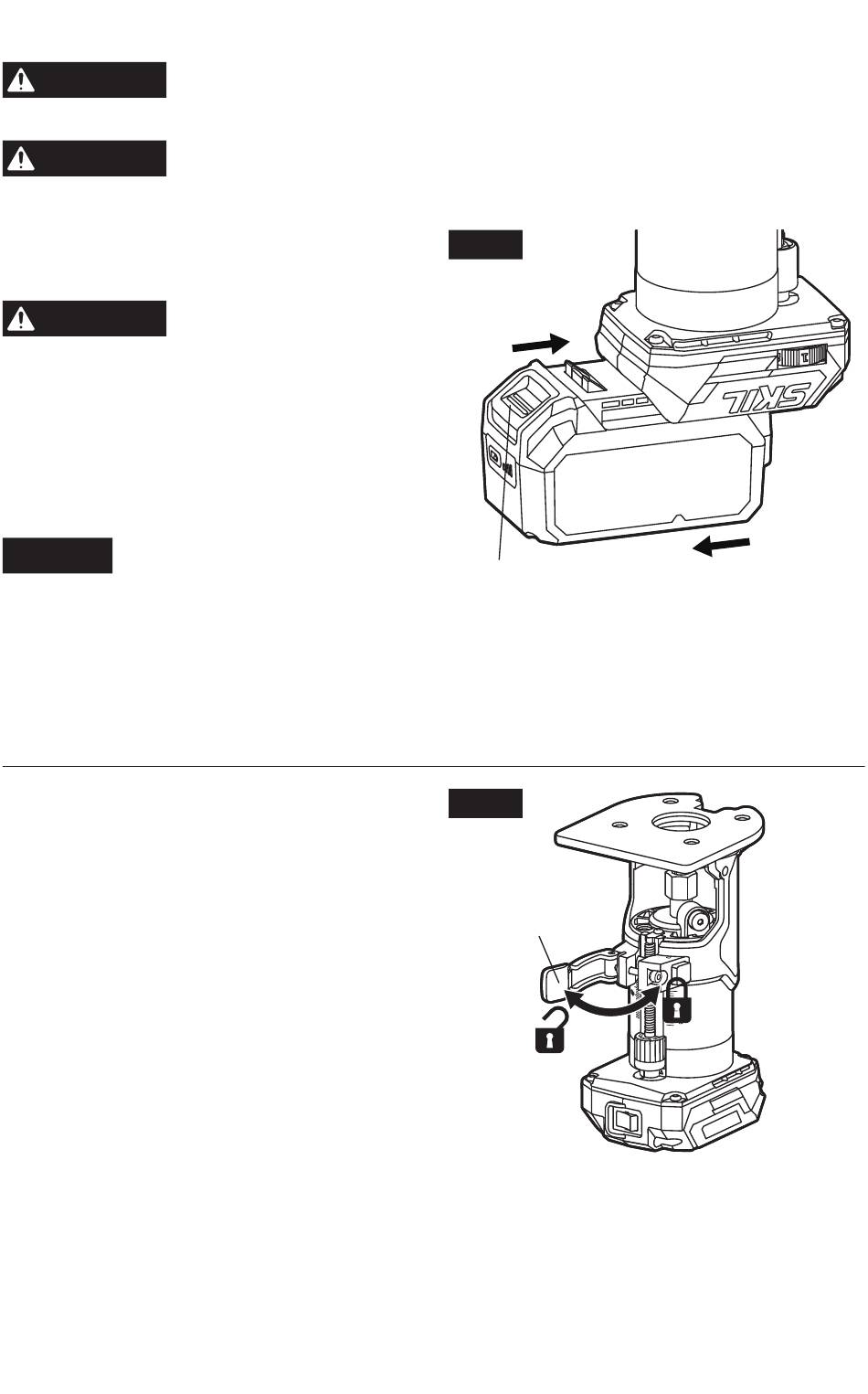

Fig . 2
Attach
Battery-release Buttons
Fig . 3a
Base Lock
Lever
Detach
