Wiring the Loudspeaker
Wire Gauge
The FreeSpace FS2C loudspeaker is designed to work with 18 AWG (0.8 mm

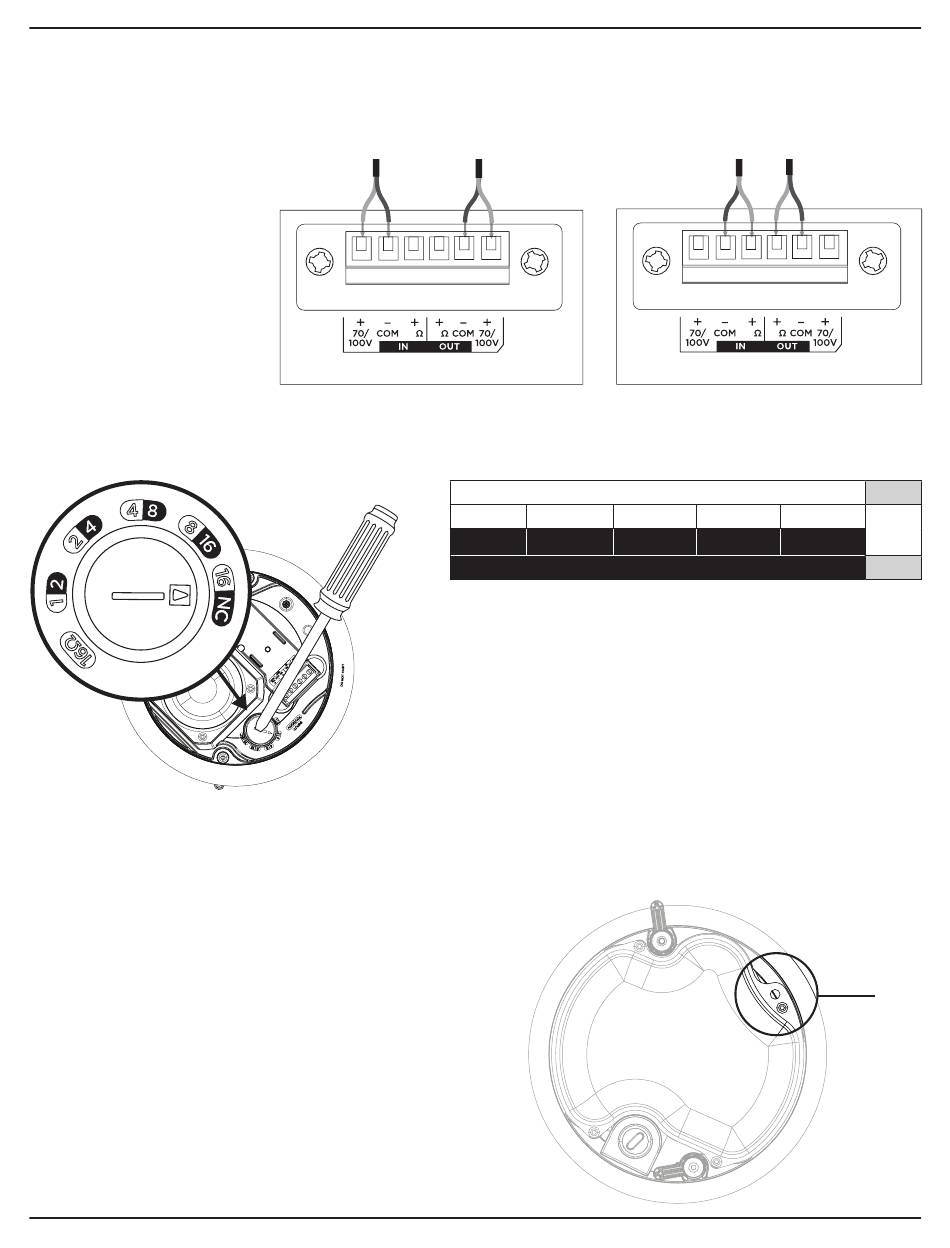

Connection Diagrams

Expose six millimeters (1/4 inch) of
bare wire to attach to the terminals.
Note: Wiring method must be in
accordance with:
In Canada, CSA C22.1, Canadian
Electrical Code, Part I, Safety
Standard for Electrical Installations,
Section 32;
In the United States, The National
Electrical Code, NFPA 70, and the
National Fire Alarm and Signaling
Code, NFPA 72.

Loudspeaker Settings

Preparing the Installation

Using a Safety Cable
Some regional construction codes require the use of a
secondary method of securing loudspeakers to support
structures to provide additional safety. Choose a mounting
position, method, and hardware consistent with local building
codes and regulations.
Bose recommends using (1) a safety wire or (2) a safety cable as
a secondary securing mechanism. See the diagram to the right
for safety attachment points.
Follow the manufacturer's instructions for any secondary
securing mechanism implemented.
Installation Guide • FreeSpace FS2C
) to 14 AWG (2.1 mm
2
16 16
70/100V
1W 2W
2W 4W
* Factory default
Transformer Tap Setting
Set tap by turning. Use a flat head screwdriver.
) size wire only.
2
16 16
16Ω
70V
4W 8W 16W*
8W 16W
100V
** NC: No Connection (do not use)
Setup
16Ώ
NC**
qw
English • 5
