Setup

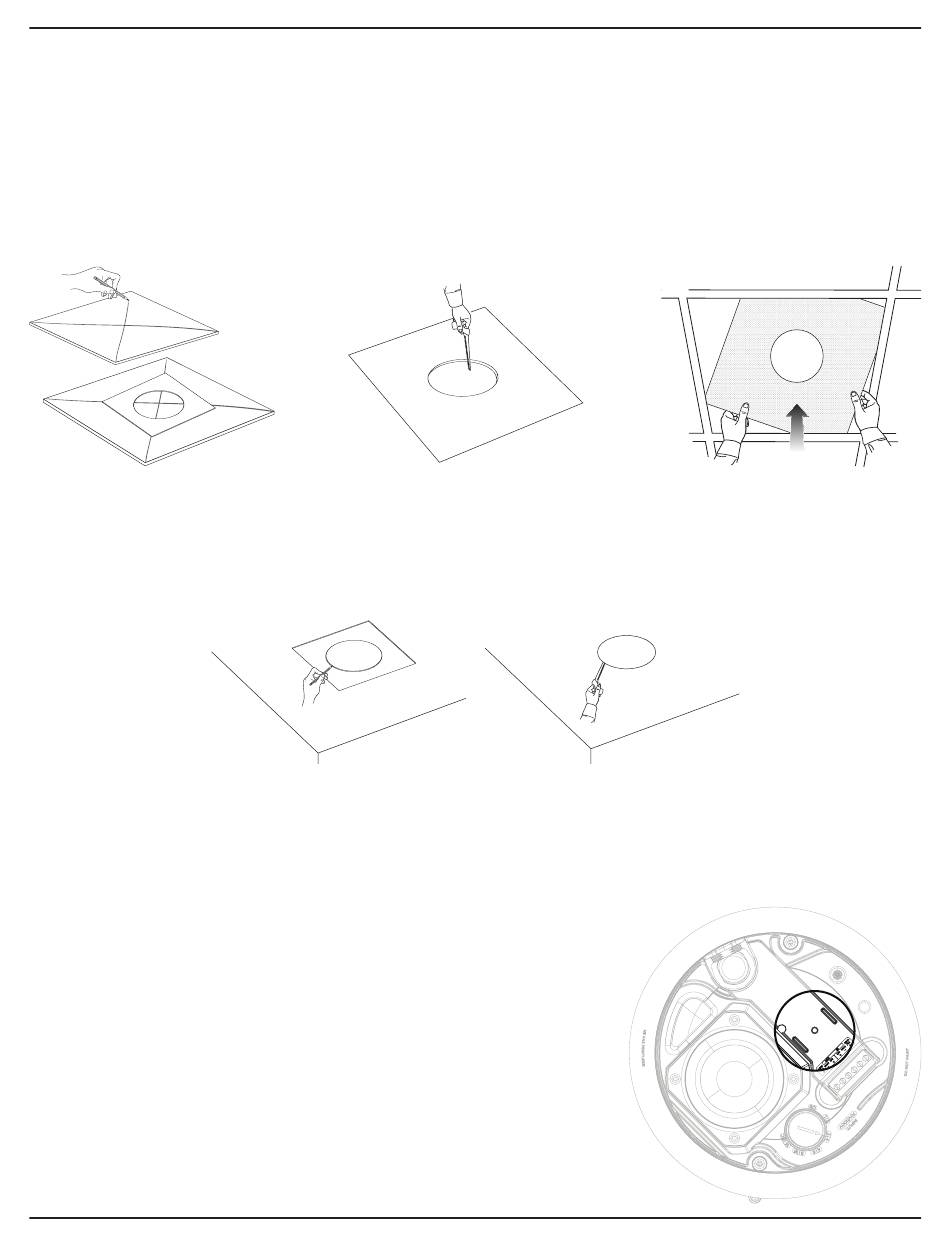

Preparing a Tile Bridge Installation
Ceiling Tile
1. Remove the tile and use the template to trace a loudspeaker hole onto the tile. To center the template on the tile, draw an X by
connecting the corners diagonally and center the template using the crossing point.
2. Cut a hole into the tile.
3. Install the tile bridge. For instructions on installing a tile bridge, see the installation guide for the applicable tile bridge at
PRO.BOSE.COM.
4. Replace the ceiling tile.
q
Hard Ceiling
1. Use the template to trace a hole onto the ceiling.
2. Cut a hole into the ceiling.
3. Install the tile bridge. For instructions on installing a tile bridge, see the installation guide for the applicable tile bridge at
PRO.BOSE.COM.
Installing in Hard Ceiling Using a Rough-in Pan (New Construction)
For information on installing a rough-in pan, see the DesignMax and FreeSpace Rough-in Pan installation guide at PRO.BOSE.COM. Once
the rough-in pan is installed, see Mounting the Loudspeaker on page 7.
Ceramic Terminal Attachment Point
The FreeSpace FS2C is compatible with an optional ceramic terminal accessory. See the
diagram for the location of the ceramic terminal attachment point. For more information
on the ceramic terminal, see the ceramic terminal installation guide at PRO.BOSE.COM.
