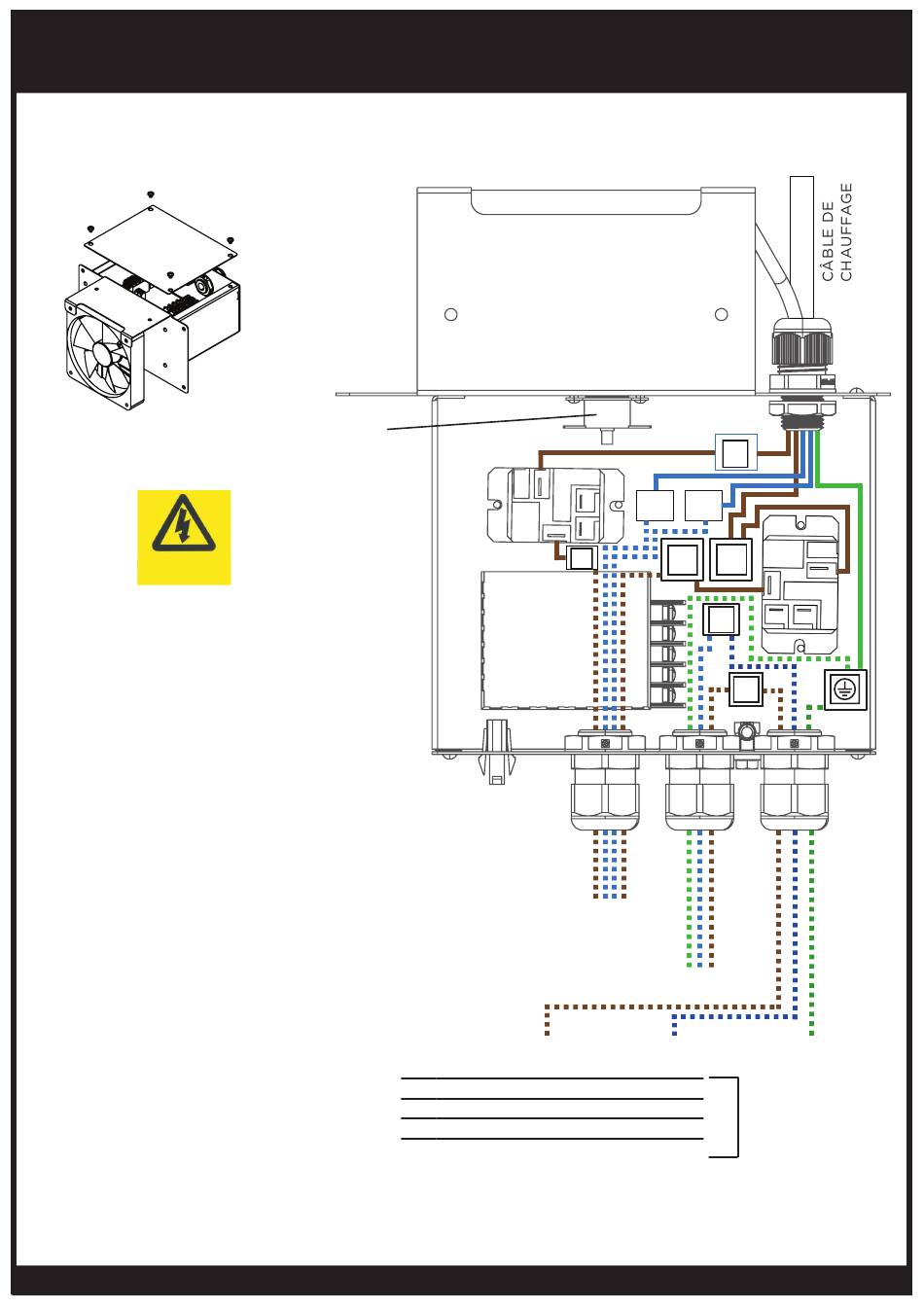

SCHÉMA DE CÂBLAGE POUR KIT D'ENCASTREMENT AU PLAFOND À
FAIBLE DÉGAGEMENT 4500W (À UTILISER AVEC UN VARIATEUR OU
CONTRÔLEUR MARCHE/ARRÊT)
CI-DESSOUS, UN SCHÉMA SIMPLIFIÉ DE LA BOÎTE À BORNES.
TOUTES LES CONNEXIONS AJUSTÉES PAR L'INSTALLATEUR SONT AFFICHÉES.
LES ÉLÉMENTS NON AFFICHÉS NE DOIVENT PAS ÊTRE MODIFIÉS.
Risque de choc
électrique
AVERTISSEMENT
Le chauffage monophasé CA
doit être installé de manière
permanente et doit être câblé par
une personne habilitée/agréée.
Ce produit est conçu pour être utilisé
avec les chauffages Platinum Electric
220-240V et 208V.
LES CÂBLES
INDIQUÉS PAR
DES LIGNES
POINTILLÉES SONT
FOURNIS PAR
L'INSTALLATEUR.
REMARQUES :
Lorsque vous utilisez les variateurs Bromic SmartHeat ou les contrôleurs Marche/Arrêt, veuillez vous référer
aux instructions fournies avec le contrôleur.
Coupe-circuit thermique
sans réinitialisation
automatique
VUE SUPÉRIEURE DE
LA BOÎTE À BORNES
Vers Sortie (charge) alimentation variateur
OU Sortie (charge) alimentation
OU
OU
OU
OU
S1
MARCHE/ARRÊT
Vers Entrée alimentation variateur
OU Entrée alimentation
MARCHE/ARRÊT
MARRON
DIRECT/ACTIF
VOIE CHAUDE 1
VOIE CHAUDE 2
PHASE A
PHASE B
PHASE C
bromic.com
S2
N2
N2
S3 S4
N
L
ALIMENTATION
BLEU
VERT/JAUNE
TERRE
NEUTRE
EU UNIQUEMENT
PHASE B
240V OU 208V
PHASE C
PHASE A
13
