H ANG ING TH E FAN

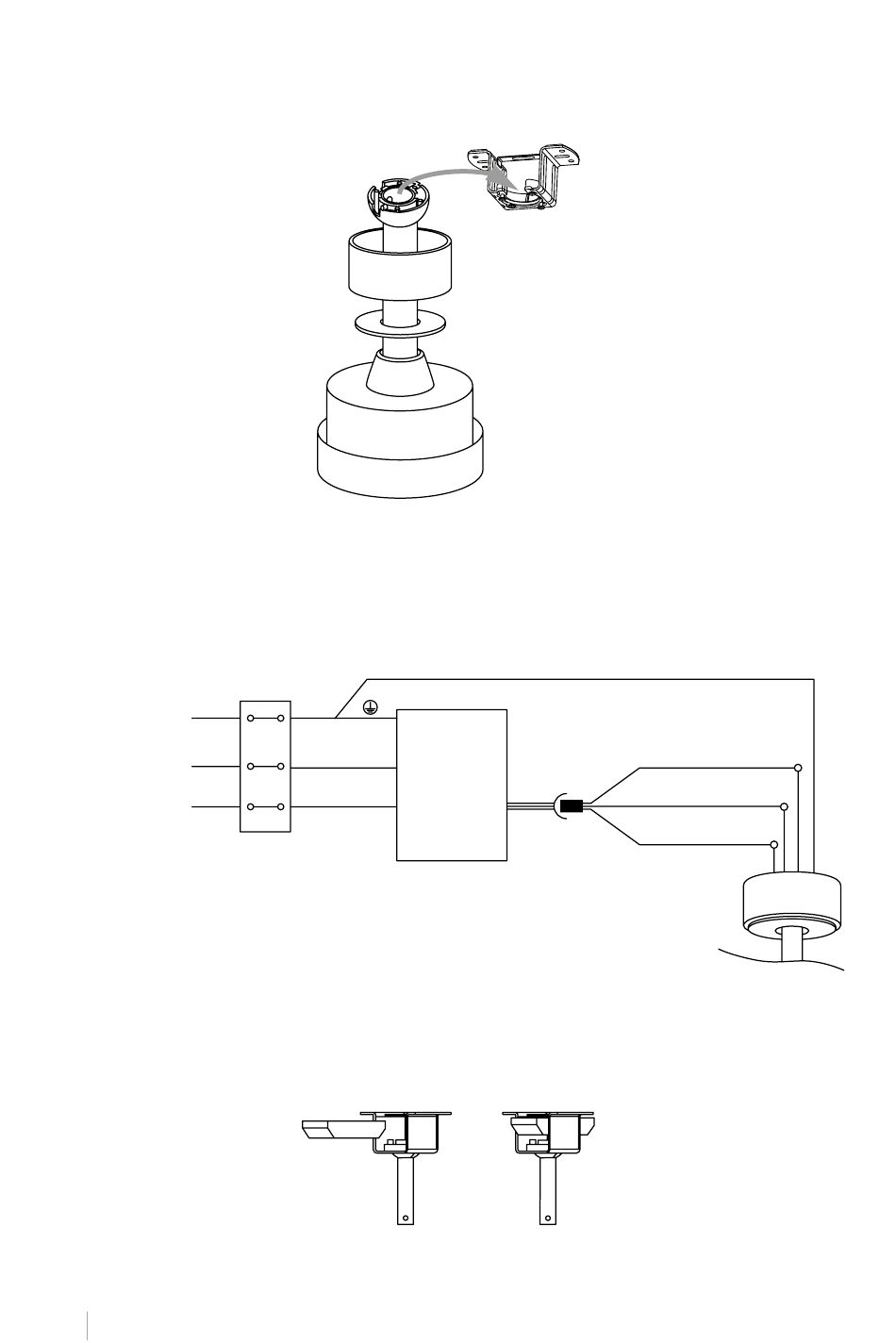

• Once the rod is mounted to the fan motor, insert the ball coupling into the mounting bracket
installed on the ceiling.
W IRING CONNECTION
Make the connection between the receiver wires and the fan motor wires following the color
indications. Make sure the connection is tight.
Get grounded
L
N
RE MO TE CONTROL CONNECTIO N
Insert the remote control controller into the mounting bracket as shown in the picture.
12 E NGL I SH
L input
(black)
Receiver
remote
control
Input N
(white)
Ground (green/yellow)
DC motor L (grey)
DC motor L (pink)
DC motor L (red)
