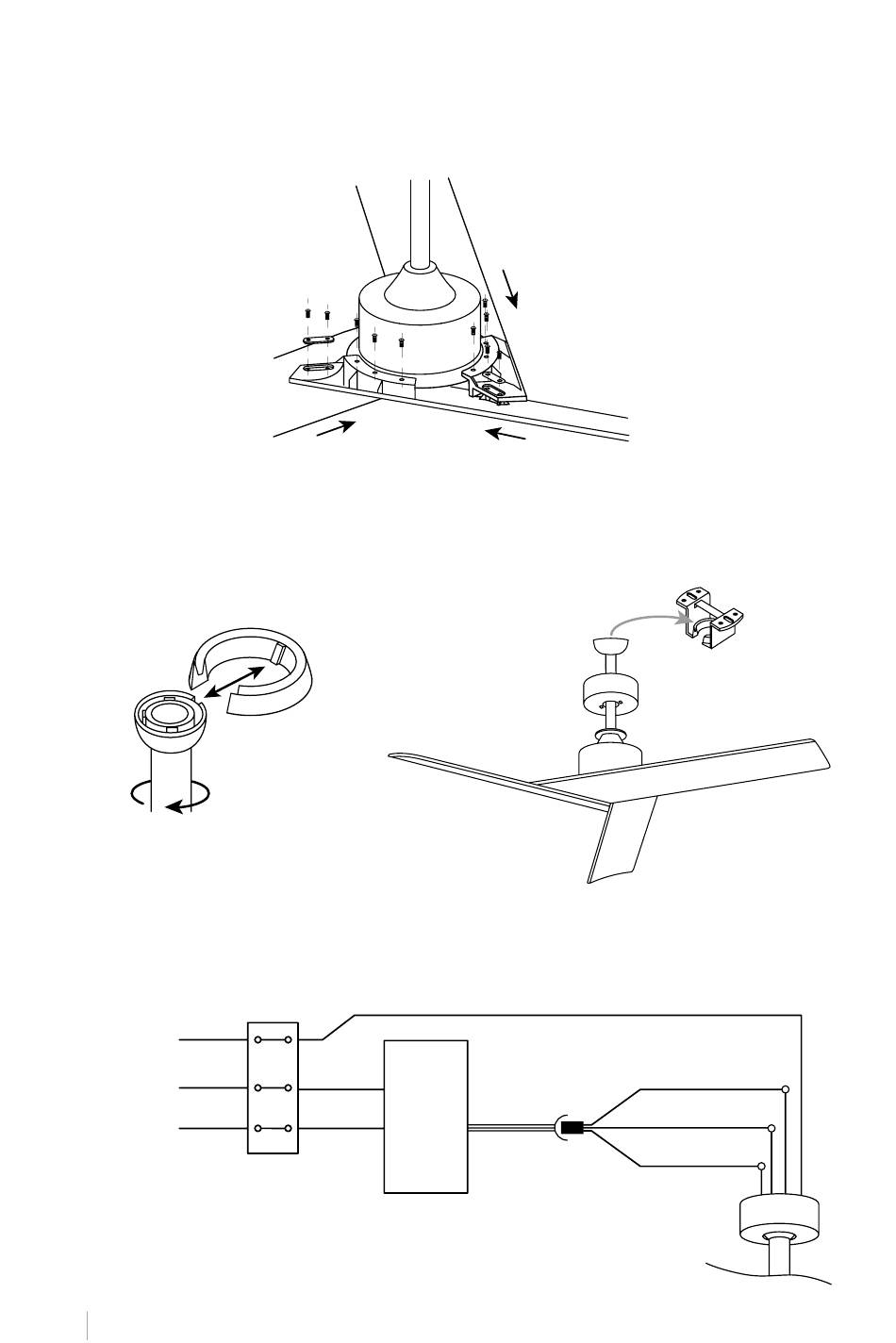

MOU N TI N G THE B L AD E S
Align the holes in the blade holder with the holes in the blades and motor body and screw
them into place, but do not tighten the screws until they are all in place and screwed in.
Advice: To save time, you can place the washers on each screw before installing the blades.
HA NG IN G ON THE FAN
• Once the blades are mounted to the fan motor, insert the ball coupling into the mounting
bracket installed on the ceiling.
• Rotate the ball coupling to align the groove.
W IRING CON N ECT IO N
Make the connection between the receiver wires and the fan motor wires following the color
indications. Make sure the connection is secure.
Get grounded
L
N
E NGL I SH
12
Ground (green/yellow)
L input
(black)
Remote
control
receiver
at the
Input N
distance
(white)
DC motor L (grey)
DC motor L (pink)
DC motor L (red)
