OPERATION
DANGER:
Laser radiation. Avoid direct eye contact with light
source.
WARNING:
Use of controls or adjustments or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.

USING THE LASER GUIDE

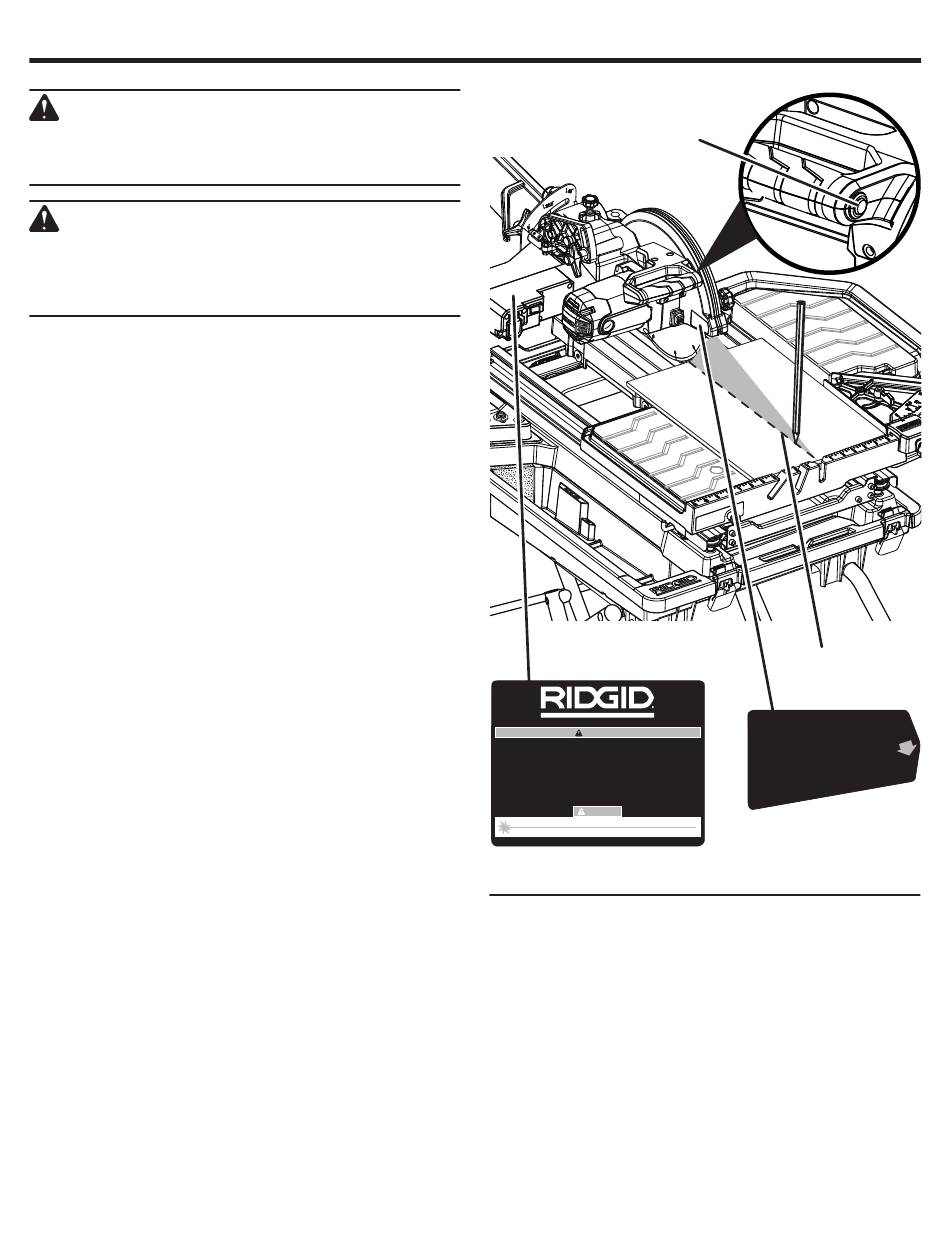

See Figure 40.
Using a straight edge or square, draw a mark on the tile
with a marker or grease pencil. Turn the laser on and off by
pressing the laser guide switch located on the side of the
"D" handle. When the laser is turned on it will generate a red
line on the work surface. This line will let you see your mark
and the laser guide line at the same time, and will assist you
in lining up the mark for more accurate cutting of the tile.
NOTE: Laser may be difficult to see in bright sunlight.
With the wheel in the cutting position, move the tile until the
mark and the laser line are aligned.
Removing Your Mark:
Position the tile so that the laser line is near the left edge of
your mark in order to remove the mark.
To Cut Your Mark:
Position the tile so that the laser line is near or over your
mark in order to cut the mark.
To Leave Your Mark:
Position the tile so that the laser line is near the right edge
of your mark in order to leave the mark.
Make several practice cuts on different styles and thickness
of material. Repeat the steps as necessary.
After you have become familiar with using the laser guide,
you will be able to remove, cut, or leave your mark on the
work surface. Practice will teach you the correct position for
aligning your mark with the laser line.
To adjust the position of the laser guide line, refer to the
Adjustments section later in this manual.
WARNING
• To reduce the risk of • Never operate the tool
injury, the user must without the wheel guard
read and understand securely closed.
operator's manual.
• Turn off tool, wait for
• Wear eye, hearing, the wheel to stop moving,
and respiratory and disconnect the
protection when power to the tool before
operating the tool. servicing, when changing
cutting wheels, or
• Do not remove the wheel
cleaning.
guard.
• Do not stack or store
tiles on water trays.
DANGER
LASER RADIATION AVOID DIRECT EYE EXPOSURE
MAXIMUM OUTPUT: <5mW WAVELENGTH: 630-660nm CLASS IIIa LASER PRODUCT
26 — English
LASER
SWITCH
MARK
AVOID EXPOSURE: Laser radiation emitted
from this aperture.
• Never use wheels that
ÉVITER L'EXPOSITION : Radiation laser
have openings, grooves,
or teeth on this tool.
émise de cet orifice.
• Always inspect and
replace damaged
EVITE LA EXPOSICIÓN: La radiación láser se
cutting wheels before
operating the tool. emite por esta abertura.
• Do not expose to rain
or other damp
locations.
• Do not fill water bath
above maximum
water fill line.
Fig. 40
